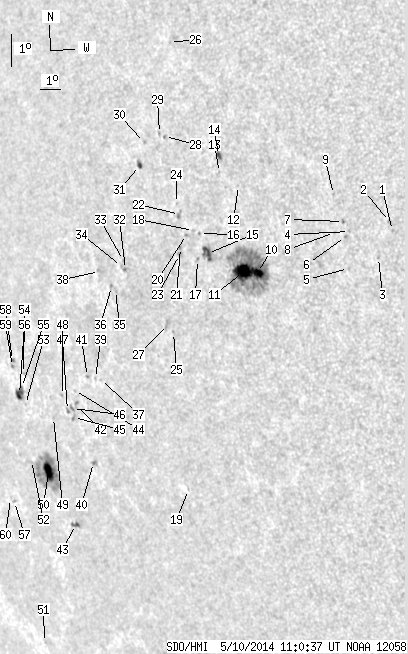

SDO HMI 2014-05-10 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.85 | 315.40 | 45.52 | 261.01 | -13.26 | 230.09 | -52.71 | 104.14 | 0.7964 | 235.6 | 138.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.71 | -10.48 | 241.78 | -41.02 | 102.28 | 0.6627 | 737.0 | 519.3 | |
| 0.00 | 1.79 | 0.00 | 1.18 | -10.20 | 241.70 | -41.09 | 101.84 | 0.6633 | 482.0 | 413.4 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -11.28 | 241.07 | -41.73 | 103.33 | 0.6731 | 694.0 | 630.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -10.45 | 240.00 | -42.79 | 101.91 | 0.6851 | 720.0 | 648.5 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -11.57 | 239.75 | -43.04 | 103.50 | 0.6900 | 417.0 | 322.1 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -10.59 | 239.81 | -42.99 | 102.09 | 0.6877 | 767.0 | 669.6 | |
| 0.00 | 1.43 | 0.00 | 0.97 | -10.13 | 239.80 | -42.99 | 101.42 | 0.6872 | 608.0 | 578.3 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -10.45 | 239.37 | -43.43 | 101.82 | 0.6930 | 559.0 | 498.4 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -9.30 | 239.52 | -43.28 | 100.17 | 0.6897 | 677.0 | 551.5 | |
| 7.62 | 148.47 | 5.57 | 109.32 | -11.54 | 235.76 | -47.03 | 102.78 | 0.7375 | 1014.0 | 315.0 | |
| 20.79 | -10.00 | 15.37 | -10.00 | -11.48 | 235.14 | -47.66 | 102.61 | 0.7446 | 807.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -8.86 | 235.43 | -47.37 | 99.11 | 0.7385 | 318.0 | 395.3 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -8.43 | 234.63 | -48.17 | 98.47 | 0.7474 | 509.0 | 481.2 | |
| 1.43 | 3.14 | 1.06 | 2.33 | -7.91 | 234.67 | -48.13 | 97.77 | 0.7467 | 683.9 | 508.9 | |
| 5.20 | 13.35 | 3.95 | 10.15 | -10.86 | 233.59 | -49.21 | 101.59 | 0.7613 | 605.3 | 366.0 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -10.24 | 233.35 | -49.45 | 100.75 | 0.7633 | 328.0 | 272.6 | |
| 0.00 | 1.34 | 0.00 | 1.03 | -11.03 | 233.08 | -49.72 | 101.75 | 0.7671 | 356.0 | 187.3 | |
| 0.00 | 1.16 | 0.00 | 0.89 | -10.14 | 233.09 | -49.71 | 100.59 | 0.7662 | 349.0 | 235.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -18.07 | 230.33 | -52.46 | 110.20 | 0.8055 | 515.0 | 489.0 | |
| 0.00 | 1.34 | 0.00 | 1.04 | -10.24 | 232.73 | -50.07 | 100.69 | 0.7702 | -663.0 | -568.4 | |
| 0.00 | 1.34 | 0.00 | 1.05 | -10.63 | 232.35 | -50.45 | 101.15 | 0.7747 | -587.0 | -559.2 | |
| 0.00 | 3.94 | 0.00 | 3.06 | -9.62 | 232.52 | -50.28 | 99.87 | 0.7720 | 495.0 | 354.4 | |
| 0.00 | 2.87 | 0.00 | 2.24 | -10.84 | 232.25 | -50.55 | 101.41 | 0.7759 | -661.0 | -499.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -9.28 | 232.44 | -50.35 | 99.42 | 0.7726 | 355.0 | 352.0 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -13.20 | 231.32 | -51.47 | 104.31 | 0.7883 | 665.0 | 588.4 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -4.40 | 232.83 | -49.97 | 93.07 | 0.7668 | 489.0 | 406.0 | |
| 0.00 | 5.20 | 0.00 | 4.18 | -12.94 | 231.10 | -51.70 | 103.96 | 0.7903 | 468.0 | 278.8 | |
| 0.00 | 1.34 | 0.00 | 1.05 | -7.23 | 232.23 | -50.57 | 96.75 | 0.7738 | -581.0 | -549.5 | |
| 0.00 | 1.43 | 0.00 | 1.12 | -7.13 | 232.01 | -50.79 | 96.61 | 0.7763 | -413.0 | -380.6 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -7.37 | 231.23 | -51.56 | 96.88 | 0.7847 | -627.0 | -489.3 | |
| 1.61 | 3.85 | 1.29 | 3.09 | -8.05 | 230.86 | -51.93 | 97.74 | 0.7889 | -522.2 | -459.7 | |
| 0.00 | 1.70 | 0.00 | 1.42 | -11.18 | 229.45 | -53.35 | 101.56 | 0.8056 | -701.0 | -614.4 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -10.90 | 229.42 | -53.38 | 101.21 | 0.8057 | -563.0 | -519.0 | |
| 0.00 | 1.34 | 0.00 | 1.12 | -11.08 | 229.27 | -53.53 | 101.42 | 0.8073 | -451.0 | -419.9 | |
| 0.00 | 1.70 | 0.00 | 1.44 | -11.79 | 228.75 | -54.05 | 102.25 | 0.8131 | -673.0 | -540.1 | |
| 0.00 | 1.43 | 0.00 | 1.22 | -11.66 | 228.58 | -54.22 | 102.08 | 0.8147 | -524.0 | -466.1 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -14.47 | 227.03 | -55.76 | 105.31 | 0.8321 | 557.0 | 502.3 | |
| 0.00 | 2.51 | 0.00 | 2.15 | -11.18 | 228.07 | -54.72 | 101.44 | 0.8193 | -293.0 | -238.4 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -14.43 | 226.77 | -56.03 | 105.23 | 0.8345 | 389.0 | 380.2 | |
| 0.36 | 2.96 | 0.33 | 2.74 | -17.00 | 225.54 | -57.26 | 108.12 | 0.8484 | 449.0 | 437.4 | |
| 0.00 | 1.25 | 0.00 | 1.13 | -14.35 | 226.35 | -56.45 | 105.08 | 0.8384 | 381.0 | 354.2 | |
| 0.00 | 2.60 | 0.00 | 2.41 | -15.17 | 225.37 | -57.43 | 105.95 | 0.8480 | -749.0 | -599.4 | |
| 2.15 | 3.58 | 2.13 | 3.55 | -18.86 | 223.45 | -59.35 | 109.98 | 0.8682 | -453.8 | -350.8 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -14.74 | 225.44 | -57.36 | 105.45 | 0.8470 | 188.0 | 91.2 | |
| 0.00 | 2.15 | 0.00 | 2.02 | -15.56 | 225.02 | -57.77 | 106.37 | 0.8514 | -467.0 | -409.5 | |
| 0.45 | 2.51 | 0.42 | 2.35 | -15.28 | 225.09 | -57.71 | 106.05 | 0.8506 | -581.4 | -487.2 | |
| 0.00 | 2.24 | 0.00 | 2.11 | -15.33 | 224.77 | -58.03 | 106.07 | 0.8534 | -346.0 | -308.8 | |
| 0.00 | 0.99 | 0.00 | 0.93 | -14.86 | 224.68 | -58.12 | 105.50 | 0.8538 | -358.0 | -401.5 | |
| 0.00 | 1.16 | 0.00 | 1.13 | -15.51 | 223.84 | -58.96 | 106.17 | 0.8616 | -159.0 | -242.5 | |
| 9.23 | 63.79 | 9.29 | 64.39 | -17.15 | 222.70 | -60.10 | 107.93 | 0.8726 | 649.0 | 106.6 | |
| 0.00 | 0.54 | 0.00 | 0.62 | -22.44 | 218.79 | -64.01 | 113.34 | 0.9067 | -484.0 | -473.2 | |
| 0.00 | 0.54 | 0.00 | 0.56 | -16.76 | 221.81 | -60.99 | 107.38 | 0.8794 | -86.0 | -77.3 | |
| 0.00 | 0.81 | 0.00 | 0.82 | -15.03 | 222.31 | -60.49 | 105.46 | 0.8740 | -333.0 | -315.6 | |
| 0.00 | 0.72 | 0.00 | 0.72 | -14.08 | 222.62 | -60.18 | 104.40 | 0.8708 | -505.0 | -441.5 | |
| 0.27 | 9.05 | 0.27 | 9.20 | -14.50 | 222.30 | -60.49 | 104.85 | 0.8737 | -485.7 | -292.9 | |
| 5.11 | -55.00 | 5.20 | -55.00 | -14.71 | 222.08 | -60.72 | 105.07 | 0.8757 | -449.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.38 | -17.97 | 219.93 | -62.86 | 108.54 | 0.8947 | -456.0 | -402.8 | |
| 0.63 | 1.61 | 0.64 | 1.63 | -13.65 | 222.11 | -60.69 | 103.87 | 0.8747 | -499.6 | -416.5 | |
| 0.00 | 1.25 | 0.00 | 1.28 | -13.83 | 222.03 | -60.77 | 104.07 | 0.8755 | -447.0 | -380.7 | |
| 0.00 | 0.36 | 0.00 | 0.40 | -17.86 | 219.72 | -63.08 | 108.40 | 0.8962 | -222.0 | -238.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
