SDO HMI 2014-05-10 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.40 | 314.06 | 47.59 | 252.95 | -13.15 | 230.20 | -51.50 | 104.15 | 0.7841 | 272.4 | 130.8 | |
|
previous
or next observation for the same group /

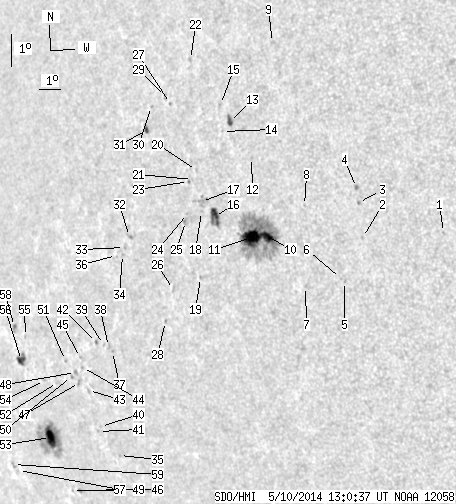

back to the solar disc SDO HMI 2014-05-10 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.69 | -11.64 | 243.16 | -38.54 | 104.60 | 0.6329 | 393.0 | 286.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -11.67 | 239.86 | -41.83 | 103.89 | 0.6752 | 340.0 | 331.9 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -10.60 | 239.89 | -41.81 | 102.31 | 0.6730 | 733.0 | 638.5 | |
| 0.00 | 1.88 | 0.00 | 1.26 | -10.14 | 239.88 | -41.82 | 101.63 | 0.6724 | 803.0 | 708.0 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -12.99 | 238.84 | -42.86 | 105.58 | 0.6904 | 603.0 | 539.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -12.89 | 238.69 | -43.01 | 105.41 | 0.6920 | 391.0 | 319.7 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -13.08 | 237.14 | -44.56 | 105.34 | 0.7110 | 662.0 | 530.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -10.61 | 237.61 | -44.09 | 101.94 | 0.7013 | 511.0 | 418.1 | |
| 0.00 | 1.88 | 0.00 | 1.31 | -5.61 | 236.94 | -44.76 | 94.76 | 0.7055 | 170.0 | 214.3 | |
| 8.51 | 143.69 | 6.09 | 103.65 | -11.49 | 235.81 | -45.89 | 102.89 | 0.7241 | 989.5 | 331.1 | |
| 20.78 | -10.00 | 15.07 | -10.00 | -11.49 | 235.10 | -46.60 | 102.78 | 0.7325 | 816.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -9.06 | 235.56 | -46.13 | 99.51 | 0.7242 | 506.0 | 393.7 | |
| 2.51 | 4.93 | 1.82 | 3.57 | -7.93 | 234.76 | -46.94 | 97.88 | 0.7328 | 685.7 | 504.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -8.22 | 234.40 | -47.30 | 98.25 | 0.7372 | 366.0 | 352.7 | |
| 0.00 | 1.52 | 0.00 | 1.11 | -7.39 | 234.43 | -47.26 | 97.13 | 0.7364 | 450.0 | 376.8 | |
| 8.96 | 14.42 | 6.67 | 10.75 | -10.78 | 233.56 | -48.14 | 101.62 | 0.7493 | 571.2 | 356.0 | |
| 0.00 | 9.32 | 0.00 | 7.00 | -10.30 | 233.05 | -48.65 | 100.92 | 0.7545 | -616.0 | -261.8 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -10.60 | 232.99 | -48.71 | 101.31 | 0.7555 | -294.0 | -260.4 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -12.61 | 232.46 | -49.24 | 103.88 | 0.7637 | -306.0 | -332.2 | |
| 0.00 | 1.25 | 0.00 | 0.94 | -9.35 | 233.01 | -48.69 | 99.65 | 0.7541 | 266.0 | 248.6 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -9.61 | 232.77 | -48.93 | 99.98 | 0.7570 | 359.0 | 373.1 | |
| 0.00 | 1.52 | 0.00 | 1.14 | -5.98 | 233.25 | -48.45 | 95.17 | 0.7496 | 447.0 | 372.3 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -9.67 | 232.57 | -49.13 | 100.03 | 0.7593 | 345.0 | 304.5 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -10.64 | 232.32 | -49.38 | 101.28 | 0.7630 | -559.0 | -555.1 | |
| 0.00 | 3.05 | 0.00 | 2.33 | -10.88 | 232.17 | -49.53 | 101.58 | 0.7649 | -564.0 | -517.5 | |
| 0.00 | 2.15 | 0.00 | 1.69 | -12.92 | 231.06 | -50.63 | 104.08 | 0.7791 | 449.0 | 394.8 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -7.27 | 232.14 | -49.56 | 96.85 | 0.7626 | -608.0 | -572.0 | |
| 0.00 | 1.25 | 0.00 | 1.00 | -13.89 | 230.38 | -51.32 | 105.20 | 0.7875 | 341.0 | 266.2 | |
| 0.00 | 1.97 | 0.00 | 1.51 | -7.05 | 231.94 | -49.76 | 96.54 | 0.7648 | -438.0 | -388.8 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -7.32 | 231.23 | -50.47 | 96.87 | 0.7728 | -595.0 | -459.1 | |
| 1.52 | 3.40 | 1.19 | 2.67 | -8.04 | 230.87 | -50.83 | 97.78 | 0.7771 | -581.2 | -476.4 | |
| 0.00 | 2.60 | 0.00 | 2.11 | -11.22 | 229.33 | -52.37 | 101.71 | 0.7956 | -611.0 | -534.6 | |
| 0.00 | 1.08 | 0.00 | 0.88 | -11.54 | 228.99 | -52.71 | 102.08 | 0.7994 | -450.0 | -435.1 | |
| 0.00 | 1.08 | 0.00 | 0.89 | -11.75 | 228.83 | -52.87 | 102.32 | 0.8012 | -632.0 | -573.1 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -17.90 | 226.39 | -55.31 | 109.49 | 0.8321 | 272.0 | 246.8 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -11.76 | 228.51 | -53.19 | 102.31 | 0.8044 | -420.0 | -394.5 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -14.68 | 227.35 | -54.35 | 105.76 | 0.8189 | 394.0 | 284.4 | |
| 0.00 | 2.06 | 0.00 | 1.77 | -14.52 | 227.19 | -54.50 | 105.54 | 0.8202 | 547.0 | 420.0 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -14.45 | 226.95 | -54.75 | 105.42 | 0.8225 | 523.0 | 404.3 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -16.96 | 225.75 | -55.95 | 108.26 | 0.8367 | 442.0 | 444.0 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -17.11 | 225.57 | -56.13 | 108.41 | 0.8385 | 402.0 | 350.6 | |
| 0.00 | 1.25 | 0.00 | 1.10 | -14.37 | 226.60 | -55.10 | 105.28 | 0.8258 | 376.0 | 338.8 | |
| 0.00 | 1.79 | 0.00 | 1.61 | -15.82 | 225.57 | -56.13 | 106.88 | 0.8370 | -365.0 | -276.6 | |
| 0.00 | 1.25 | 0.00 | 1.13 | -15.10 | 225.53 | -56.17 | 106.02 | 0.8365 | -625.0 | -587.7 | |
| 0.00 | 0.99 | 0.00 | 0.88 | -14.79 | 225.54 | -56.16 | 105.65 | 0.8361 | 199.0 | 93.6 | |
| 0.54 | 1.61 | 0.52 | 1.55 | -18.88 | 223.54 | -58.16 | 110.18 | 0.8584 | -482.3 | -472.9 | |
| 0.00 | 2.60 | 0.00 | 2.36 | -15.55 | 225.17 | -56.53 | 106.51 | 0.8403 | -501.0 | -448.3 | |
| 0.00 | 2.15 | 0.00 | 1.96 | -15.24 | 225.07 | -56.63 | 106.13 | 0.8408 | -623.0 | -518.0 | |
| 0.00 | 0.99 | 0.00 | 0.96 | -18.86 | 223.12 | -58.58 | 110.10 | 0.8619 | -464.0 | -405.0 | |
| 0.00 | 1.43 | 0.00 | 1.31 | -15.35 | 224.80 | -56.90 | 106.22 | 0.8435 | -341.0 | -332.7 | |
| 0.00 | 1.08 | 0.00 | 0.99 | -14.84 | 224.66 | -57.04 | 105.61 | 0.8442 | -528.0 | -451.9 | |
| 0.00 | 2.06 | 0.00 | 1.93 | -15.50 | 223.91 | -57.79 | 106.29 | 0.8515 | -223.0 | -199.5 | |
| 10.93 | 61.63 | 10.67 | 60.24 | -17.16 | 222.68 | -59.02 | 108.08 | 0.8637 | 658.3 | 128.9 | |
| 0.00 | 1.25 | 0.00 | 1.20 | -15.40 | 223.17 | -58.53 | 106.09 | 0.8578 | -493.0 | -386.9 | |
| 0.00 | 1.08 | 0.00 | 1.04 | -14.00 | 222.63 | -59.07 | 104.41 | 0.8614 | -409.0 | -406.4 | |
| 4.93 | 8.96 | 4.86 | 8.83 | -14.72 | 222.07 | -59.63 | 105.19 | 0.8667 | -476.9 | -351.8 | |
| 0.00 | 0.45 | 0.00 | 0.47 | -18.09 | 220.09 | -61.61 | 108.81 | 0.8854 | -390.0 | -355.6 | |
| 0.72 | 2.60 | 0.70 | 2.56 | -13.67 | 222.09 | -59.61 | 103.98 | 0.8657 | -508.0 | -350.1 | |
| 0.00 | 2.51 | 0.00 | 2.67 | -17.88 | 219.87 | -61.83 | 108.56 | 0.8868 | -442.0 | -398.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
