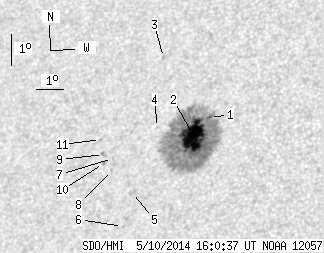

SDO HMI 2014-05-10 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.76 | 291.81 | 27.76 | 177.22 | 14.83 | 249.37 | -30.67 | 58.54 | 0.5802 | -682.6 | -272.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 279.53 | 0.76 | 169.58 | 15.39 | 249.97 | -30.08 | 57.21 | 0.5770 | -611.6 | -317.2 | |
| 44.51 | -1.00 | 27.00 | -1.00 | 14.84 | 249.47 | -30.57 | 58.46 | 0.5791 | -1104.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.95 | 17.38 | 247.92 | -32.13 | 55.94 | 0.6148 | 709.0 | 583.8 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 15.13 | 248.10 | -31.94 | 59.07 | 0.5976 | -364.0 | -293.6 | |
| 0.00 | 3.22 | 0.00 | 1.98 | 13.09 | 247.50 | -32.54 | 62.59 | 0.5924 | 653.0 | 576.4 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 12.03 | 247.28 | -32.76 | 64.39 | 0.5891 | 685.0 | 609.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 14.20 | 246.58 | -33.46 | 61.54 | 0.6102 | 770.0 | 657.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 13.82 | 246.61 | -33.44 | 62.10 | 0.6077 | 645.0 | 636.4 | |
| 0.00 | 2.60 | 0.00 | 1.63 | 14.34 | 246.22 | -33.82 | 61.58 | 0.6154 | 765.0 | 640.2 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 14.05 | 246.27 | -33.78 | 61.97 | 0.6132 | 673.0 | 555.8 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 14.82 | 246.02 | -34.02 | 61.01 | 0.6207 | 653.0 | 578.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
