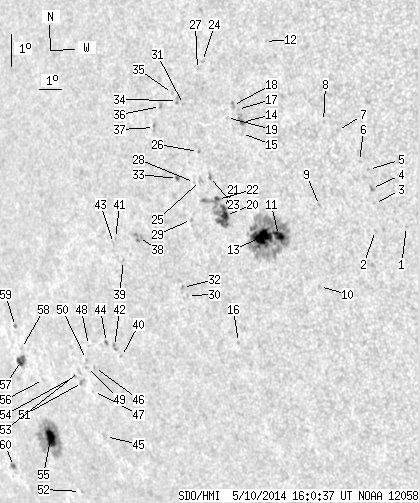

SDO HMI 2014-05-10 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.14 | 324.60 | 44.23 | 251.24 | -12.85 | 230.45 | -49.59 | 104.03 | 0.7636 | 310.8 | 147.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.46 | -11.38 | 241.15 | -38.89 | 104.11 | 0.6369 | 675.0 | 586.4 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -11.46 | 239.90 | -40.15 | 103.94 | 0.6534 | 607.0 | 554.2 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -10.63 | 239.99 | -40.05 | 102.70 | 0.6506 | 733.0 | 618.9 | |
| 0.00 | 2.15 | 0.00 | 1.40 | -10.17 | 239.95 | -40.10 | 101.99 | 0.6504 | 872.0 | 692.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -9.59 | 239.91 | -40.13 | 101.09 | 0.6499 | 660.0 | 596.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -9.33 | 239.58 | -40.46 | 100.64 | 0.6538 | 626.0 | 532.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -8.36 | 238.82 | -41.22 | 99.06 | 0.6625 | 592.0 | 475.6 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -8.06 | 238.29 | -41.76 | 98.55 | 0.6691 | 499.0 | 405.8 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -10.61 | 237.74 | -42.31 | 102.24 | 0.6793 | 588.0 | 478.1 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -13.08 | 237.26 | -42.79 | 105.73 | 0.6897 | 577.0 | 564.9 | |
| 7.70 | 134.35 | 5.35 | 94.15 | -11.46 | 235.84 | -44.21 | 103.13 | 0.7040 | 1028.8 | 366.8 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -5.55 | 236.11 | -43.93 | 94.70 | 0.6952 | 414.0 | 434.2 | |
| 19.88 | -11.00 | 13.99 | -11.00 | -11.46 | 235.14 | -44.90 | 103.02 | 0.7124 | 881.9 | 999999 | |
| 1.07 | 5.55 | 0.76 | 3.91 | -7.96 | 234.83 | -45.21 | 98.07 | 0.7122 | 828.4 | 618.7 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -8.30 | 234.79 | -45.26 | 98.53 | 0.7130 | 477.0 | 403.0 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -14.66 | 233.29 | -46.75 | 107.04 | 0.7393 | 428.0 | 407.6 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -7.56 | 234.72 | -45.33 | 97.50 | 0.7134 | 379.0 | 320.0 | |
| 0.00 | 2.42 | 0.00 | 1.71 | -7.43 | 234.52 | -45.53 | 97.30 | 0.7157 | 389.0 | 376.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -7.78 | 234.20 | -45.84 | 97.77 | 0.7197 | 266.0 | 200.8 | |
| 4.21 | 34.93 | 3.04 | 25.32 | -10.76 | 233.65 | -46.40 | 101.82 | 0.7291 | 742.0 | -23.4 | |
| 1.61 | -20.00 | 1.16 | -20.00 | -10.54 | 233.60 | -46.45 | 101.51 | 0.7294 | 600.3 | 999999 | |
| 1.34 | -20.00 | 0.97 | -20.00 | -10.26 | 233.39 | -46.66 | 101.10 | 0.7316 | 441.5 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.89 | -9.54 | 233.16 | -46.89 | 100.10 | 0.7335 | 647.0 | 485.6 | |
| 0.00 | 1.34 | 0.00 | 0.97 | -6.05 | 233.36 | -46.68 | 95.32 | 0.7289 | 490.0 | 407.8 | |
| 0.00 | 3.31 | 0.00 | 2.43 | -9.65 | 232.73 | -47.31 | 100.19 | 0.7386 | 511.0 | 371.0 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -8.76 | 232.80 | -47.25 | 99.00 | 0.7370 | -541.0 | -353.1 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -6.28 | 233.11 | -46.93 | 95.63 | 0.7320 | 460.0 | 274.5 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -9.70 | 232.45 | -47.60 | 100.23 | 0.7419 | 170.0 | 184.7 | |
| 0.00 | 1.25 | 0.00 | 0.93 | -10.82 | 232.08 | -47.96 | 101.69 | 0.7472 | -660.0 | -584.1 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -13.13 | 231.34 | -48.70 | 104.64 | 0.7585 | 584.0 | 432.6 | |
| 0.00 | 1.52 | 0.00 | 1.12 | -7.31 | 232.34 | -47.70 | 97.00 | 0.7414 | -691.0 | -562.8 | |
| 0.00 | 1.97 | 0.00 | 1.50 | -12.87 | 231.17 | -48.87 | 104.28 | 0.7600 | 602.0 | 472.6 | |
| 0.72 | 1.88 | 0.53 | 1.40 | -9.54 | 231.70 | -48.35 | 99.95 | 0.7504 | -511.2 | -393.1 | |
| 0.00 | 2.78 | 0.00 | 2.05 | -7.18 | 232.09 | -47.96 | 96.81 | 0.7443 | -599.0 | -568.3 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -6.96 | 231.89 | -48.15 | 96.50 | 0.7465 | -438.0 | -415.3 | |
| 0.00 | 1.61 | 0.00 | 1.21 | -7.33 | 231.28 | -48.76 | 96.97 | 0.7537 | -580.0 | -437.3 | |
| 0.00 | 2.60 | 0.00 | 1.97 | -7.95 | 230.91 | -49.14 | 97.77 | 0.7583 | -580.0 | -505.4 | |
| 0.00 | 6.45 | 0.00 | 5.05 | -11.26 | 229.47 | -50.58 | 101.96 | 0.7767 | -581.0 | -598.5 | |
| 0.00 | 1.61 | 0.00 | 1.29 | -11.93 | 228.55 | -51.49 | 102.70 | 0.7871 | -687.0 | -542.5 | |
| 0.00 | 1.34 | 0.00 | 1.11 | -14.86 | 227.55 | -52.50 | 106.24 | 0.8009 | 296.0 | 293.6 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -11.24 | 228.33 | -51.71 | 101.81 | 0.7887 | -398.0 | -421.4 | |
| 0.00 | 3.13 | 0.00 | 2.59 | -14.53 | 227.29 | -52.75 | 105.80 | 0.8030 | 503.0 | 401.9 | |
| 0.00 | 1.88 | 0.00 | 1.51 | -11.39 | 228.19 | -51.85 | 101.98 | 0.7903 | -467.0 | -346.5 | |
| 0.45 | 1.34 | 0.37 | 1.12 | -14.39 | 226.93 | -53.12 | 105.58 | 0.8065 | 452.0 | 317.4 | |
| 0.00 | 2.33 | 0.00 | 2.01 | -17.28 | 225.74 | -54.30 | 108.92 | 0.8219 | 561.0 | 409.1 | |
| 0.00 | 1.16 | 0.00 | 0.99 | -15.13 | 226.02 | -54.02 | 106.35 | 0.8163 | -564.0 | -515.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -15.87 | 225.68 | -54.36 | 107.20 | 0.8205 | -263.0 | -324.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -14.44 | 225.95 | -54.09 | 105.50 | 0.8161 | 248.0 | 321.0 | |
| 0.00 | 1.16 | 0.00 | 1.00 | -15.11 | 225.60 | -54.45 | 106.27 | 0.8204 | -693.0 | -617.8 | |
| 0.00 | 1.07 | 0.00 | 0.92 | -14.87 | 225.69 | -54.35 | 105.98 | 0.8192 | 203.0 | 47.1 | |
| 0.00 | 2.87 | 0.00 | 2.50 | -15.56 | 225.20 | -54.84 | 106.76 | 0.8247 | -489.0 | -440.0 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -18.92 | 223.54 | -56.50 | 110.50 | 0.8442 | -615.0 | -584.4 | |
| 0.00 | 2.24 | 0.00 | 1.95 | -15.22 | 225.17 | -54.87 | 106.34 | 0.8245 | -566.0 | -473.7 | |
| 0.00 | 1.43 | 0.00 | 1.26 | -15.36 | 224.84 | -55.20 | 106.46 | 0.8278 | -399.0 | -333.4 | |
| 11.64 | 62.07 | 10.87 | 58.05 | -17.21 | 222.65 | -57.39 | 108.34 | 0.8498 | 728.3 | 125.5 | |
| 0.00 | 0.90 | 0.00 | 0.82 | -15.37 | 223.08 | -56.96 | 106.25 | 0.8440 | -473.0 | -427.9 | |
| 5.55 | 8.15 | 5.23 | 7.68 | -14.73 | 222.06 | -57.98 | 105.38 | 0.8525 | -510.2 | -320.9 | |
| 0.00 | 1.16 | 0.00 | 1.09 | -14.37 | 222.22 | -57.83 | 104.96 | 0.8508 | -462.0 | -421.1 | |
| 0.45 | 1.52 | 0.42 | 1.43 | -13.68 | 222.14 | -57.91 | 104.15 | 0.8510 | -476.4 | -381.8 | |
| 1.52 | 3.40 | 1.54 | 3.43 | -17.96 | 219.97 | -60.08 | 108.86 | 0.8732 | -518.9 | -340.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
