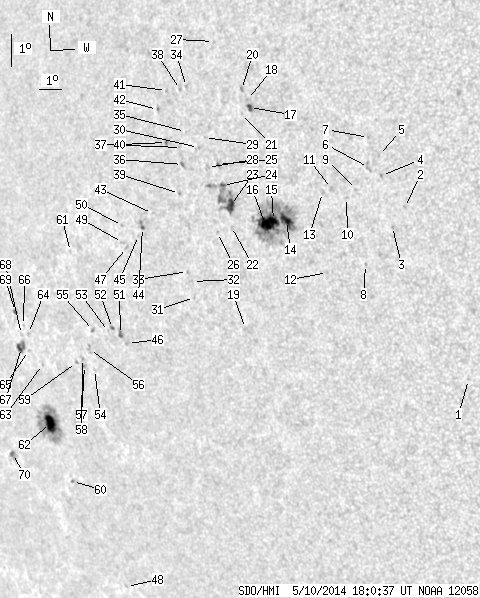

SDO HMI 2014-05-10 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.00 | 326.29 | 51.33 | 248.16 | -13.08 | 230.29 | -48.65 | 104.47 | 0.7535 | 317.6 | 148.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.45 | -16.58 | 242.24 | -36.70 | 112.94 | 0.6242 | 498.0 | 364.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -11.21 | 240.75 | -38.19 | 104.03 | 0.6273 | 646.0 | 568.8 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -11.78 | 240.18 | -38.75 | 104.77 | 0.6360 | 640.0 | 529.3 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -10.21 | 240.00 | -38.94 | 102.27 | 0.6353 | 687.0 | 627.2 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -9.60 | 239.97 | -38.97 | 101.31 | 0.6347 | 690.0 | 512.4 | |
| 0.00 | 3.94 | 0.00 | 2.54 | -9.95 | 239.52 | -39.42 | 101.77 | 0.6412 | 628.0 | 501.0 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -9.03 | 239.64 | -39.29 | 100.37 | 0.6381 | 658.0 | 554.9 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -12.90 | 238.89 | -40.04 | 106.15 | 0.6552 | 574.0 | 431.8 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -10.60 | 238.94 | -40.00 | 102.66 | 0.6499 | 616.0 | 483.0 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -10.83 | 238.49 | -40.44 | 102.92 | 0.6560 | 680.0 | 553.5 | |
| 0.00 | 2.33 | 0.00 | 1.54 | -10.53 | 237.93 | -41.01 | 102.37 | 0.6627 | 261.0 | 315.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -13.09 | 237.29 | -41.65 | 106.02 | 0.6757 | 612.0 | 501.7 | |
| 0.00 | 1.97 | 0.00 | 1.31 | -10.64 | 237.54 | -41.39 | 102.46 | 0.6678 | 334.0 | 273.0 | |
| 9.76 | 125.30 | 6.66 | 86.20 | -11.44 | 235.90 | -43.04 | 103.32 | 0.6898 | 1004.6 | 366.5 | |
| 8.33 | -14.00 | 5.73 | -14.00 | -11.42 | 235.35 | -43.59 | 103.18 | 0.6965 | 985.8 | 999999 | |
| 13.70 | -14.00 | 9.49 | -14.00 | -11.52 | 234.98 | -43.96 | 103.27 | 0.7011 | 797.4 | 999999 | |
| 2.15 | 3.76 | 1.48 | 2.59 | -7.94 | 234.90 | -44.04 | 98.15 | 0.6978 | 830.4 | 644.2 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -7.70 | 234.85 | -44.09 | 97.79 | 0.6983 | 568.0 | 517.6 | |
| 0.00 | 1.97 | 0.00 | 1.41 | -14.67 | 233.37 | -45.57 | 107.32 | 0.7259 | 307.0 | 266.0 | |
| 0.00 | 2.06 | 0.00 | 1.43 | -7.38 | 234.63 | -44.31 | 97.33 | 0.7007 | 590.0 | 486.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -8.11 | 234.53 | -44.41 | 98.36 | 0.7025 | 397.0 | 254.4 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -11.53 | 233.50 | -45.44 | 103.02 | 0.7189 | 437.0 | 366.2 | |
| 7.08 | 36.27 | 5.01 | 25.78 | -10.89 | 233.58 | -45.35 | 102.15 | 0.7170 | 717.5 | -17.7 | |
| 1.25 | -23.00 | 0.89 | -23.00 | -10.26 | 233.35 | -45.59 | 101.25 | 0.7189 | 393.4 | 999999 | |
| 0.54 | 1.88 | 0.38 | 1.34 | -9.62 | 233.25 | -45.69 | 100.34 | 0.7195 | 632.8 | 555.9 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -11.69 | 232.84 | -46.10 | 103.14 | 0.7268 | 274.0 | 182.5 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -5.88 | 233.60 | -45.34 | 95.14 | 0.7127 | 565.0 | 482.3 | |
| 0.00 | 2.78 | 0.00 | 1.99 | -9.69 | 232.79 | -46.15 | 100.39 | 0.7250 | 512.0 | 358.0 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -8.78 | 232.82 | -46.12 | 99.12 | 0.7238 | -485.0 | -346.3 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -9.07 | 232.50 | -46.44 | 99.50 | 0.7278 | 592.0 | 455.5 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -13.63 | 231.32 | -47.62 | 105.50 | 0.7472 | 381.0 | 324.3 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -13.14 | 231.36 | -47.58 | 104.85 | 0.7460 | 428.0 | 352.6 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -12.82 | 231.21 | -47.73 | 104.40 | 0.7472 | 515.0 | 511.9 | |
| 0.00 | 1.43 | 0.00 | 1.03 | -7.20 | 232.25 | -46.69 | 96.91 | 0.7295 | -646.0 | -538.0 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -8.56 | 232.00 | -46.94 | 98.75 | 0.7333 | -274.0 | -154.2 | |
| 0.00 | 2.42 | 0.00 | 1.77 | -9.56 | 231.69 | -47.24 | 100.08 | 0.7377 | -656.0 | -507.0 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -9.04 | 231.74 | -47.20 | 99.38 | 0.7367 | 114.0 | 133.6 | |
| 0.00 | 1.79 | 0.00 | 1.30 | -7.28 | 231.97 | -46.97 | 97.00 | 0.7328 | -665.0 | -530.0 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -10.43 | 231.39 | -47.55 | 101.23 | 0.7421 | 570.0 | 464.2 | |
| 0.45 | 1.70 | 0.33 | 1.26 | -8.86 | 231.09 | -47.85 | 99.08 | 0.7441 | 562.6 | 455.0 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -7.28 | 231.34 | -47.60 | 96.97 | 0.7402 | -546.0 | -401.2 | |
| 0.00 | 1.61 | 0.00 | 1.19 | -7.84 | 230.84 | -48.09 | 97.69 | 0.7463 | -714.0 | -542.9 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -10.99 | 230.01 | -48.93 | 101.80 | 0.7583 | -650.0 | -564.2 | |
| 0.81 | 3.67 | 0.62 | 2.81 | -11.39 | 229.44 | -49.50 | 102.26 | 0.7651 | -772.4 | -660.0 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -11.63 | 229.19 | -49.74 | 102.54 | 0.7680 | -495.0 | -455.6 | |
| 0.00 | 1.43 | 0.00 | 1.15 | -14.91 | 227.70 | -51.24 | 106.51 | 0.7881 | 402.0 | 326.8 | |
| 0.00 | 1.52 | 0.00 | 1.19 | -11.97 | 228.53 | -50.41 | 102.89 | 0.7757 | -729.0 | -621.4 | |
| 0.00 | 1.16 | 0.00 | 1.04 | -22.47 | 224.22 | -54.72 | 115.01 | 0.8346 | 497.0 | 395.3 | |
| 0.00 | 1.52 | 0.00 | 1.19 | -11.81 | 228.37 | -50.57 | 102.67 | 0.7771 | -553.0 | -494.9 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -11.29 | 228.50 | -50.44 | 102.02 | 0.7752 | -453.0 | -433.3 | |
| 1.34 | 3.58 | 1.08 | 2.88 | -14.62 | 227.45 | -51.49 | 106.10 | 0.7903 | 485.1 | 447.5 | |
| 0.63 | 1.52 | 0.51 | 1.23 | -14.41 | 227.11 | -51.83 | 105.80 | 0.7935 | 498.7 | 432.2 | |
| 0.00 | 0.63 | 0.00 | 0.51 | -14.50 | 226.88 | -52.06 | 105.87 | 0.7960 | 265.0 | 247.6 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -15.63 | 225.74 | -53.19 | 107.09 | 0.8089 | -488.0 | -500.7 | |
| 0.00 | 1.70 | 0.00 | 1.41 | -14.43 | 226.12 | -52.81 | 105.67 | 0.8035 | 415.0 | 337.7 | |
| 0.00 | 3.05 | 0.00 | 2.55 | -15.01 | 225.71 | -53.23 | 106.32 | 0.8084 | -405.0 | -356.2 | |
| 0.00 | 1.52 | 0.00 | 1.29 | -15.49 | 225.27 | -53.67 | 106.84 | 0.8133 | -619.0 | -543.2 | |
| 0.00 | 1.52 | 0.00 | 1.29 | -15.27 | 225.24 | -53.69 | 106.57 | 0.8133 | -642.0 | -539.9 | |
| 0.00 | 0.99 | 0.00 | 0.84 | -15.38 | 224.88 | -54.06 | 106.65 | 0.8169 | -407.0 | -350.1 | |
| 0.36 | 1.16 | 0.32 | 1.05 | -19.04 | 223.02 | -55.92 | 110.74 | 0.8393 | -556.2 | -428.1 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -11.97 | 225.70 | -53.23 | 102.57 | 0.8051 | -466.0 | -408.7 | |
| 12.90 | 64.84 | 11.70 | 58.90 | -17.19 | 222.67 | -56.27 | 108.49 | 0.8399 | 774.5 | 151.1 | |
| 0.00 | 1.16 | 0.00 | 1.04 | -15.36 | 223.02 | -55.92 | 106.36 | 0.8345 | -524.0 | -406.4 | |
| 0.00 | 1.34 | 0.00 | 1.21 | -14.37 | 222.62 | -56.32 | 105.14 | 0.8372 | -593.0 | -529.1 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -14.89 | 222.41 | -56.53 | 105.73 | 0.8396 | -558.0 | -466.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -14.11 | 222.43 | -56.50 | 104.81 | 0.8386 | -566.0 | -501.7 | |
| 5.46 | 8.15 | 5.00 | 7.46 | -14.78 | 222.05 | -56.88 | 105.56 | 0.8427 | -515.6 | -338.2 | |
| 0.00 | 0.99 | 0.00 | 0.90 | -14.38 | 222.21 | -56.72 | 105.11 | 0.8409 | -470.0 | -407.5 | |
| 0.99 | 2.06 | 0.90 | 1.88 | -13.67 | 222.15 | -56.79 | 104.25 | 0.8409 | -444.1 | -364.8 | |
| 1.25 | 4.48 | 1.23 | 4.37 | -18.01 | 219.98 | -58.96 | 109.07 | 0.8641 | -565.4 | -463.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
