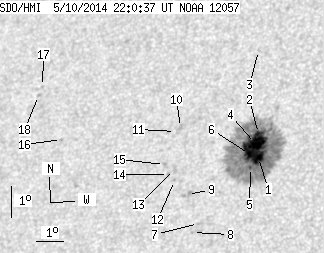

SDO HMI 2014-05-10 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.69 | 292.37 | 30.94 | 172.19 | 14.80 | 249.09 | -27.63 | 55.99 | 0.5428 | -582.2 | -274.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.02 | 270.09 | 6.45 | 158.65 | 14.50 | 249.52 | -27.20 | 56.09 | 0.5353 | -1337.1 | -365.3 | |
| 4.57 | -1.00 | 2.69 | -1.00 | 15.27 | 249.42 | -27.30 | 54.97 | 0.5425 | -871.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 17.94 | 249.00 | -27.72 | 51.34 | 0.5688 | 699.0 | 536.3 | |
| 26.70 | -1.00 | 15.70 | -1.00 | 14.95 | 249.36 | -27.36 | 55.53 | 0.5408 | -1085.9 | 999999 | |
| 0.90 | -1.00 | 0.52 | -1.00 | 14.19 | 249.28 | -27.44 | 56.81 | 0.5359 | -937.3 | 999999 | |
| 9.50 | -1.00 | 5.58 | -1.00 | 14.60 | 249.19 | -27.53 | 56.23 | 0.5401 | -1026.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 12.47 | 247.66 | -29.06 | 61.02 | 0.5442 | 713.0 | 494.7 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 12.19 | 247.48 | -29.24 | 61.63 | 0.5447 | 743.0 | 628.5 | |
| 0.00 | 4.39 | 0.00 | 2.61 | 13.40 | 247.15 | -29.57 | 59.93 | 0.5569 | 553.0 | 622.6 | |
| 0.00 | 3.05 | 0.00 | 1.85 | 15.54 | 246.58 | -30.14 | 57.06 | 0.5786 | 779.0 | 578.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 15.42 | 246.42 | -30.30 | 57.38 | 0.5797 | 469.0 | 565.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 13.85 | 246.62 | -30.10 | 59.63 | 0.5666 | 751.0 | 683.1 | |
| 0.00 | 3.31 | 0.00 | 1.99 | 14.20 | 246.57 | -30.15 | 59.12 | 0.5695 | 775.0 | 645.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 14.05 | 246.37 | -30.35 | 59.51 | 0.5709 | 577.0 | 540.6 | |
| 0.00 | 1.34 | 0.00 | 0.81 | 14.37 | 246.18 | -30.54 | 59.16 | 0.5755 | 843.0 | 656.7 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 15.30 | 242.19 | -34.53 | 60.67 | 0.6294 | 706.0 | 570.4 | |
| 0.00 | 1.16 | 0.00 | 0.76 | 17.03 | 241.10 | -35.62 | 58.95 | 0.6522 | 496.0 | 385.5 | |
| 0.00 | 1.61 | 0.00 | 1.05 | 16.74 | 241.01 | -35.71 | 59.40 | 0.6516 | 546.0 | 455.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
