SDO HMI 2014-05-11 01:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.01 | 335.87 | 53.55 | 239.79 | -13.04 | 229.89 | -45.17 | 105.05 | 0.7140 | 362.7 | 142.3 | |
|
previous
or next observation for the same group /

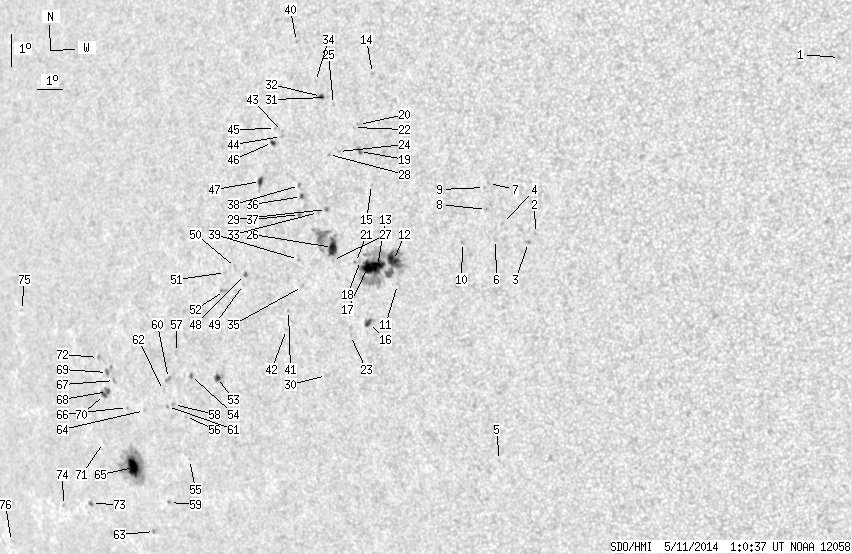

back to the solar disc SDO HMI 2014-05-11 01:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.67 | -5.60 | 252.45 | -22.61 | 97.03 | 0.3871 | 696.0 | 551.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -10.67 | 241.48 | -33.58 | 104.44 | 0.5635 | 666.0 | 599.6 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -10.94 | 241.18 | -33.88 | 104.82 | 0.5683 | 781.0 | 635.2 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -10.33 | 240.29 | -34.77 | 103.50 | 0.5792 | 735.0 | 558.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.62 | 238.86 | -36.20 | 114.80 | 0.6223 | 448.0 | 349.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -10.81 | 239.96 | -35.10 | 104.23 | 0.5848 | 675.0 | 527.5 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -9.09 | 239.91 | -35.15 | 101.30 | 0.5818 | 678.0 | 533.5 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -9.88 | 239.74 | -35.32 | 102.60 | 0.5857 | 712.0 | 610.7 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -9.21 | 239.75 | -35.31 | 101.46 | 0.5843 | 721.0 | 625.0 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -10.86 | 238.70 | -36.36 | 103.96 | 0.6022 | 549.0 | 475.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -12.05 | 235.96 | -39.10 | 105.15 | 0.6412 | 286.0 | 199.5 | |
| 11.38 | 104.49 | 7.32 | 67.77 | -11.31 | 235.93 | -39.13 | 104.00 | 0.6400 | 990.4 | 375.3 | |
| 10.75 | -12.00 | 6.98 | -12.00 | -11.48 | 235.26 | -39.80 | 104.09 | 0.6490 | 984.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -5.61 | 235.80 | -39.26 | 95.02 | 0.6345 | 749.0 | 583.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -8.97 | 235.40 | -39.66 | 100.25 | 0.6429 | 566.0 | 475.3 | |
| 2.69 | 5.74 | 1.77 | 3.78 | -13.18 | 234.58 | -40.48 | 106.48 | 0.6615 | 759.7 | 434.8 | |
| 10.40 | -12.00 | 6.79 | -12.00 | -11.49 | 234.85 | -40.21 | 104.02 | 0.6543 | 823.0 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.76 | -11.27 | 234.61 | -40.45 | 103.62 | 0.6570 | 255.0 | 270.7 | |
| 0.99 | 2.60 | 0.64 | 1.68 | -7.95 | 235.05 | -40.01 | 98.63 | 0.6463 | 815.3 | 669.2 | |
| 0.00 | 1.43 | 0.00 | 0.93 | -7.13 | 235.10 | -39.96 | 97.36 | 0.6448 | 719.0 | 564.1 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -11.32 | 234.39 | -40.67 | 103.66 | 0.6598 | 375.0 | 353.9 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -7.22 | 234.89 | -40.17 | 97.47 | 0.6476 | 598.0 | 465.2 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -13.55 | 233.76 | -41.30 | 106.81 | 0.6726 | -512.0 | -357.1 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -7.92 | 234.21 | -40.85 | 98.48 | 0.6573 | 618.0 | 556.9 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -6.49 | 234.16 | -40.90 | 96.29 | 0.6567 | 511.0 | 424.6 | |
| 9.23 | 36.74 | 6.14 | 24.52 | -10.83 | 233.53 | -41.52 | 102.75 | 0.6699 | 757.6 | -1.3 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -11.23 | 233.47 | -41.59 | 103.32 | 0.6715 | 442.0 | 321.0 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -8.00 | 233.79 | -41.27 | 98.55 | 0.6628 | 480.0 | 361.1 | |
| 0.45 | 1.97 | 0.30 | 1.31 | -9.67 | 233.48 | -41.58 | 101.01 | 0.6688 | 670.0 | 530.8 | |
| 0.00 | 1.61 | 0.00 | 1.10 | -14.74 | 232.47 | -42.59 | 108.19 | 0.6912 | 595.0 | 387.1 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -6.27 | 233.90 | -41.16 | 95.94 | 0.6600 | 657.0 | 405.3 | |
| 1.70 | 3.50 | 1.12 | 2.31 | -6.23 | 233.70 | -41.36 | 95.87 | 0.6626 | 618.8 | 346.2 | |
| 0.00 | 1.79 | 0.00 | 1.20 | -9.74 | 233.13 | -41.93 | 101.07 | 0.6733 | 548.0 | 470.0 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -5.77 | 233.50 | -41.56 | 95.16 | 0.6650 | 521.0 | 434.0 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -11.97 | 232.07 | -42.99 | 104.13 | 0.6902 | 568.0 | 460.4 | |
| 0.99 | 2.06 | 0.66 | 1.39 | -9.23 | 232.51 | -42.55 | 100.22 | 0.6806 | -240.5 | -54.9 | |
| 0.36 | 2.78 | 0.24 | 1.88 | -9.78 | 232.34 | -42.72 | 100.99 | 0.6834 | 676.2 | 600.8 | |
| 0.00 | 1.79 | 0.00 | 1.21 | -8.89 | 232.47 | -42.59 | 99.72 | 0.6806 | -432.0 | -380.6 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -11.14 | 232.06 | -43.00 | 102.93 | 0.6889 | -672.0 | -539.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -4.53 | 232.83 | -42.23 | 93.28 | 0.6734 | 624.0 | 483.6 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -12.68 | 231.32 | -43.74 | 104.99 | 0.7006 | 418.0 | 377.7 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -13.26 | 231.10 | -43.96 | 105.76 | 0.7043 | 298.0 | 266.6 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -7.23 | 231.98 | -43.08 | 97.23 | 0.6853 | -694.0 | -577.8 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -7.38 | 231.92 | -43.14 | 97.45 | 0.6861 | -748.0 | -618.1 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -7.13 | 231.70 | -43.36 | 97.06 | 0.6888 | -680.0 | -592.9 | |
| 1.34 | 2.60 | 0.92 | 1.78 | -7.55 | 231.52 | -43.54 | 97.66 | 0.6913 | -552.8 | -454.4 | |
| 2.42 | 5.47 | 1.68 | 3.79 | -8.71 | 230.85 | -44.21 | 99.26 | 0.7007 | 687.4 | 502.8 | |
| 0.81 | 2.15 | 0.57 | 1.53 | -11.51 | 229.69 | -45.37 | 103.05 | 0.7181 | -717.3 | -578.1 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -11.82 | 229.54 | -45.52 | 103.44 | 0.7203 | -680.0 | -599.7 | |
| 0.00 | 2.60 | 0.00 | 1.86 | -11.28 | 229.30 | -45.76 | 102.67 | 0.7224 | -276.0 | -357.6 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -11.42 | 228.82 | -46.24 | 102.78 | 0.7282 | -447.0 | -427.2 | |
| 0.00 | 2.87 | 0.00 | 2.07 | -11.97 | 228.66 | -46.40 | 103.50 | 0.7309 | -721.0 | -651.6 | |
| 2.69 | 6.99 | 1.99 | 5.18 | -14.62 | 227.66 | -47.40 | 106.88 | 0.7466 | 673.6 | 490.1 | |
| 0.72 | 1.88 | 0.54 | 1.43 | -14.50 | 226.42 | -48.64 | 106.48 | 0.7600 | 494.9 | 365.1 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -17.09 | 225.52 | -49.54 | 109.64 | 0.7744 | 462.0 | 332.7 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -15.76 | 225.79 | -49.27 | 107.98 | 0.7690 | -608.0 | -533.2 | |
| 0.00 | 2.42 | 0.00 | 1.85 | -13.77 | 225.97 | -49.09 | 105.45 | 0.7638 | -152.0 | -289.0 | |
| 0.00 | 2.06 | 0.00 | 1.60 | -15.36 | 225.34 | -49.72 | 107.39 | 0.7732 | -664.0 | -493.6 | |
| 0.00 | 1.34 | 0.00 | 1.09 | -18.39 | 224.01 | -51.04 | 110.93 | 0.7923 | -446.0 | -461.8 | |
| 0.00 | 2.78 | 0.00 | 2.16 | -14.55 | 225.35 | -49.71 | 106.35 | 0.7717 | -682.0 | -591.4 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -15.41 | 225.03 | -50.03 | 107.39 | 0.7765 | -438.0 | -362.3 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -14.91 | 224.99 | -50.07 | 106.75 | 0.7761 | -538.0 | -436.8 | |
| 0.00 | 1.97 | 0.00 | 1.64 | -19.26 | 222.86 | -52.20 | 111.75 | 0.8053 | -670.0 | -558.2 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -15.49 | 223.85 | -51.21 | 107.27 | 0.7888 | -560.0 | -465.1 | |
| 12.99 | 69.00 | 10.77 | 57.22 | -17.22 | 222.63 | -52.43 | 109.21 | 0.8039 | 886.0 | 223.0 | |
| 0.00 | 1.08 | 0.00 | 0.88 | -15.36 | 223.03 | -52.02 | 106.97 | 0.7970 | -281.0 | -282.5 | |
| 0.00 | 1.88 | 0.00 | 1.55 | -14.50 | 222.66 | -52.40 | 105.84 | 0.7995 | -681.0 | -643.9 | |
| 1.79 | 7.44 | 1.49 | 6.19 | -14.82 | 222.19 | -52.87 | 106.17 | 0.8047 | -724.1 | -448.5 | |
| 1.08 | 4.84 | 0.89 | 3.99 | -14.24 | 222.39 | -52.67 | 105.48 | 0.8019 | -656.1 | -606.7 | |
| 2.15 | -68.00 | 1.79 | -68.00 | -14.91 | 222.00 | -53.06 | 106.25 | 0.8067 | -474.0 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -16.38 | 221.39 | -53.67 | 107.96 | 0.8147 | 295.0 | 294.6 | |
| 0.00 | 1.79 | 0.00 | 1.49 | -13.76 | 222.08 | -52.98 | 104.84 | 0.8044 | -648.0 | -495.0 | |
| 1.08 | 2.51 | 0.95 | 2.22 | -18.24 | 219.91 | -55.15 | 109.94 | 0.8313 | -598.8 | -460.4 | |
| 0.00 | 0.99 | 0.00 | 0.91 | -18.23 | 218.31 | -56.75 | 109.67 | 0.8456 | -562.0 | -476.7 | |
| 0.00 | 0.90 | 0.00 | 0.81 | -12.15 | 218.44 | -56.62 | 102.48 | 0.8382 | -345.0 | -343.5 | |
| 0.00 | 0.90 | 0.00 | 0.92 | -19.20 | 214.54 | -60.52 | 110.23 | 0.8781 | -430.0 | -360.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
