SDO HMI 2014-05-11 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.65 | 33.26 | 27.23 | 77.80 | -23.98 | 194.27 | -78.04 | 113.87 | 0.9784 | 304.0 | 183.2 | |
|
previous
or next observation for the same group /

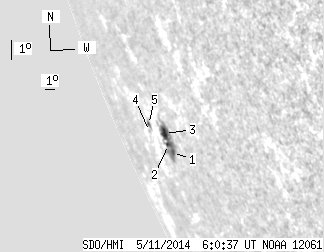

back to the solar disc SDO HMI 2014-05-11 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.24 | 29.94 | 5.17 | 68.99 | -24.48 | 194.46 | -77.85 | 114.39 | 0.9779 | 342.4 | 231.9 | |
| 1.52 | -1.00 | 3.57 | -1.00 | -24.21 | 194.39 | -77.92 | 114.12 | 0.9780 | 366.2 | 999999 | |
| 6.90 | -1.00 | 15.87 | -1.00 | -23.86 | 194.51 | -77.80 | 113.75 | 0.9776 | 395.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.74 | -23.67 | 192.28 | -80.03 | 113.51 | 0.9845 | -310.0 | -280.0 | |
| 0.99 | 3.05 | 2.62 | 8.07 | -23.46 | 192.62 | -79.69 | 113.30 | 0.9835 | -175.2 | -151.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
