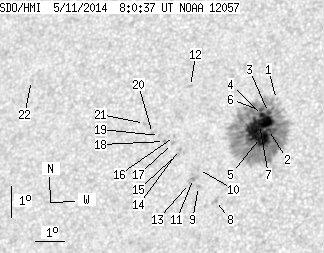

SDO HMI 2014-05-11 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.82 | 301.07 | 32.53 | 169.51 | 14.81 | 248.99 | -22.23 | 50.29 | 0.4773 | -528.6 | -270.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | 15.77 | 249.65 | -21.57 | 47.90 | 0.4788 | -469.0 | -304.3 | |
| 2.69 | 277.39 | 1.51 | 155.95 | 14.82 | 249.48 | -21.74 | 49.68 | 0.4715 | -1176.2 | -362.9 | |
| 1.79 | -2.00 | 1.01 | -2.00 | 15.36 | 249.42 | -21.80 | 48.86 | 0.4774 | -802.3 | 999999 | |
| 2.51 | -2.00 | 1.42 | -2.00 | 15.27 | 249.23 | -21.99 | 49.25 | 0.4788 | -872.9 | 999999 | |
| 21.52 | -2.00 | 12.08 | -2.00 | 14.57 | 249.23 | -21.98 | 50.41 | 0.4720 | -1237.7 | 999999 | |
| 1.34 | -2.00 | 0.76 | -2.00 | 15.43 | 249.14 | -22.08 | 49.09 | 0.4813 | -705.5 | 999999 | |
| 27.97 | -2.00 | 15.75 | -2.00 | 14.99 | 249.16 | -22.06 | 49.81 | 0.4769 | -1072.7 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.91 | 12.61 | 247.91 | -23.31 | 55.40 | 0.4710 | 776.0 | 622.2 | |
| 0.00 | 1.88 | 0.00 | 1.06 | 13.07 | 247.29 | -23.93 | 55.28 | 0.4826 | 836.0 | 669.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 13.61 | 247.23 | -23.99 | 54.41 | 0.4878 | 710.0 | 586.4 | |
| 0.00 | 3.32 | 0.00 | 1.88 | 13.32 | 247.09 | -24.13 | 55.05 | 0.4872 | 894.0 | 634.4 | |
| 0.00 | 1.70 | 0.00 | 0.99 | 16.26 | 246.64 | -24.58 | 50.72 | 0.5179 | 694.0 | 625.3 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 13.17 | 246.97 | -24.25 | 55.45 | 0.4875 | 659.0 | 595.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 14.26 | 246.51 | -24.71 | 54.09 | 0.5022 | 820.0 | 733.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 14.10 | 246.42 | -24.79 | 54.45 | 0.5019 | 717.0 | 528.3 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 14.67 | 246.29 | -24.93 | 53.64 | 0.5084 | 733.0 | 598.4 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 14.45 | 246.24 | -24.97 | 54.05 | 0.5071 | 789.0 | 679.8 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 14.52 | 245.96 | -25.26 | 54.23 | 0.5111 | 796.0 | 677.2 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 14.72 | 245.76 | -25.46 | 54.12 | 0.5151 | 700.0 | 594.2 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 14.79 | 245.51 | -25.71 | 54.26 | 0.5188 | 689.0 | 591.9 | |
| 0.00 | 1.52 | 0.00 | 0.89 | 15.12 | 245.19 | -26.03 | 54.06 | 0.5253 | 532.0 | 441.0 | |
| 0.00 | 1.52 | 0.00 | 0.93 | 16.61 | 240.92 | -30.30 | 55.68 | 0.5875 | 679.0 | 563.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
