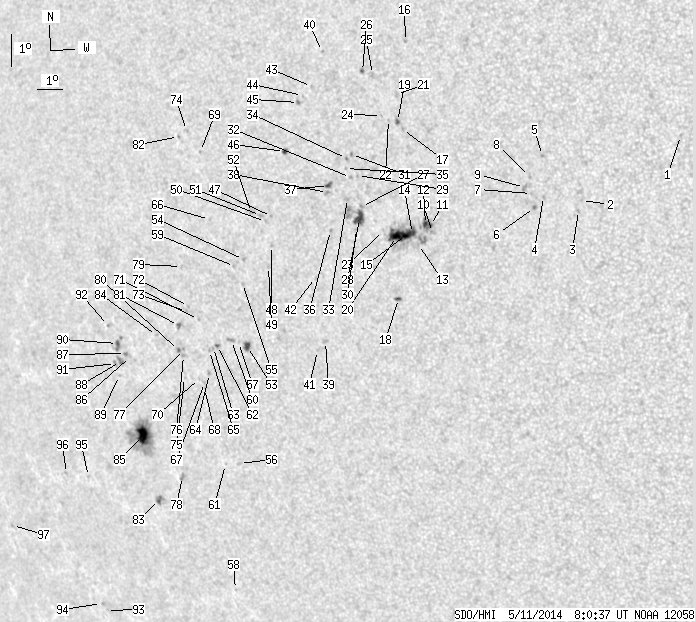

SDO HMI 2014-05-11 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.93 | 307.48 | 39.09 | 209.89 | -13.46 | 228.85 | -42.36 | 106.27 | 0.6817 | 183.2 | 108.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.64 | -8.70 | 245.34 | -25.88 | 103.44 | 0.4454 | 683.0 | 514.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -10.59 | 241.73 | -29.49 | 105.85 | 0.5050 | 655.0 | 496.0 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -10.89 | 241.59 | -29.63 | 106.38 | 0.5080 | 734.0 | 638.1 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -10.43 | 240.39 | -30.83 | 105.02 | 0.5239 | 807.0 | 669.3 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -9.18 | 240.48 | -30.73 | 102.69 | 0.5192 | 837.0 | 717.4 | |
| 0.00 | 1.97 | 0.00 | 1.15 | -10.76 | 240.03 | -31.19 | 105.50 | 0.5301 | 951.0 | 749.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -10.33 | 239.97 | -31.25 | 104.68 | 0.5297 | 741.0 | 634.0 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -9.81 | 239.95 | -31.26 | 103.70 | 0.5285 | 722.0 | 577.6 | |
| 0.00 | 2.96 | 0.00 | 1.73 | -10.14 | 239.74 | -31.48 | 104.24 | 0.5324 | 660.0 | 619.2 | |
| 0.00 | 2.42 | 0.00 | 1.48 | -11.41 | 236.18 | -35.04 | 105.33 | 0.5858 | 849.0 | 703.0 | |
| 1.08 | 11.57 | 0.66 | 7.07 | -11.19 | 236.13 | -35.09 | 104.95 | 0.5858 | 1116.6 | 813.2 | |
| 2.15 | -11.00 | 1.32 | -11.00 | -11.15 | 235.95 | -35.27 | 104.83 | 0.5882 | 1007.3 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.99 | -11.76 | 235.59 | -35.62 | 105.73 | 0.5946 | 190.0 | 251.5 | |
| 2.69 | 54.42 | 1.66 | 33.65 | -11.41 | 235.41 | -35.80 | 105.10 | 0.5961 | 945.9 | 423.7 | |
| 5.65 | -14.00 | 3.49 | -14.00 | -11.44 | 235.18 | -36.04 | 105.07 | 0.5994 | 1053.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -5.57 | 235.79 | -35.43 | 95.27 | 0.5816 | 728.0 | 650.0 | |
| 0.00 | 1.70 | 0.00 | 1.04 | -8.23 | 235.44 | -35.78 | 99.78 | 0.5894 | 529.0 | 493.9 | |
| 1.17 | 2.78 | 0.73 | 1.74 | -13.39 | 234.55 | -36.66 | 108.03 | 0.6131 | 820.6 | 676.9 | |
| 0.90 | 2.69 | 0.55 | 1.65 | -7.99 | 235.27 | -35.94 | 99.33 | 0.5913 | 843.4 | 699.7 | |
| 9.77 | -14.00 | 6.07 | -14.00 | -11.49 | 234.79 | -36.43 | 105.04 | 0.6048 | 884.4 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.65 | -7.17 | 235.32 | -35.90 | 97.95 | 0.5896 | 693.0 | 479.8 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -7.91 | 234.94 | -36.28 | 99.16 | 0.5958 | 490.0 | 400.4 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -11.29 | 234.32 | -36.90 | 104.58 | 0.6106 | 287.0 | 298.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -7.78 | 234.69 | -36.53 | 98.90 | 0.5991 | 453.0 | 426.4 | |
| 0.00 | 2.42 | 0.00 | 1.50 | -6.53 | 234.46 | -36.75 | 96.78 | 0.6009 | 528.0 | 524.7 | |
| 0.54 | 2.42 | 0.33 | 1.50 | -6.43 | 234.09 | -37.13 | 96.57 | 0.6060 | 775.0 | 618.9 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -10.53 | 233.58 | -37.64 | 103.17 | 0.6189 | 718.0 | 554.8 | |
| 7.17 | 21.70 | 4.53 | 13.72 | -10.89 | 233.44 | -37.77 | 103.72 | 0.6214 | 755.9 | 63.1 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -9.58 | 233.55 | -37.66 | 101.64 | 0.6174 | 704.0 | 584.0 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -11.22 | 233.28 | -37.94 | 104.20 | 0.6244 | 469.0 | 380.2 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -8.93 | 233.40 | -37.81 | 100.56 | 0.6184 | -567.0 | -471.7 | |
| 0.00 | 1.52 | 0.00 | 0.96 | -9.63 | 233.27 | -37.94 | 101.66 | 0.6212 | 682.0 | 517.1 | |
| 0.00 | 3.05 | 0.00 | 1.93 | -10.26 | 233.07 | -38.15 | 102.63 | 0.6252 | -457.0 | -382.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -9.05 | 233.19 | -38.02 | 100.71 | 0.6214 | -326.0 | -268.1 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -9.35 | 233.12 | -38.10 | 101.18 | 0.6229 | -353.0 | -206.0 | |
| 0.00 | 1.52 | 0.00 | 0.98 | -11.22 | 232.25 | -38.97 | 103.94 | 0.6379 | -760.0 | -599.8 | |
| 1.70 | 4.03 | 1.09 | 2.58 | -9.84 | 232.38 | -38.84 | 101.82 | 0.6335 | 733.5 | 571.3 | |
| 0.00 | 2.42 | 0.00 | 1.55 | -10.05 | 232.31 | -38.91 | 102.14 | 0.6348 | 386.0 | 14.6 | |
| 0.00 | 2.60 | 0.00 | 1.70 | -14.61 | 231.40 | -39.82 | 108.88 | 0.6571 | 33.0 | 135.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -5.77 | 232.60 | -38.62 | 95.38 | 0.6260 | 615.0 | 485.5 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -14.88 | 231.01 | -40.21 | 109.15 | 0.6627 | 481.0 | 390.8 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -12.63 | 231.40 | -39.82 | 105.90 | 0.6520 | 591.0 | 478.9 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -6.81 | 232.07 | -39.14 | 97.00 | 0.6338 | -818.0 | -660.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -7.07 | 231.69 | -39.53 | 97.37 | 0.6391 | -604.0 | -528.7 | |
| 0.00 | 1.97 | 0.00 | 1.27 | -7.28 | 231.51 | -39.71 | 97.68 | 0.6417 | -791.0 | -666.7 | |
| 1.70 | 2.78 | 1.11 | 1.81 | -8.75 | 230.77 | -40.45 | 99.85 | 0.6531 | 713.5 | 558.7 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -10.71 | 229.95 | -41.27 | 102.67 | 0.6666 | -753.0 | -611.8 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -11.59 | 229.79 | -41.43 | 103.95 | 0.6702 | -657.0 | -495.5 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -12.23 | 229.55 | -41.67 | 104.84 | 0.6745 | -500.0 | -445.5 | |
| 0.00 | 1.43 | 0.00 | 0.95 | -10.85 | 229.67 | -41.54 | 102.83 | 0.6703 | -647.0 | -589.5 | |
| 0.00 | 2.06 | 0.00 | 1.38 | -10.66 | 229.50 | -41.72 | 102.52 | 0.6722 | -710.0 | -582.2 | |
| 0.00 | 1.97 | 0.00 | 1.32 | -10.55 | 229.14 | -42.07 | 102.30 | 0.6765 | -731.0 | -586.5 | |
| 3.41 | 5.11 | 2.35 | 3.52 | -14.65 | 228.12 | -43.10 | 107.98 | 0.6972 | 687.9 | 491.0 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -11.98 | 228.55 | -42.67 | 104.26 | 0.6864 | -693.0 | -539.6 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -12.71 | 228.35 | -42.86 | 105.27 | 0.6902 | -568.0 | -440.1 | |
| 0.00 | 1.97 | 0.00 | 1.41 | -18.26 | 226.74 | -44.48 | 112.56 | 0.7228 | 305.0 | 323.4 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -14.51 | 227.77 | -43.45 | 107.69 | 0.7011 | 567.0 | 433.7 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -22.22 | 225.06 | -46.16 | 117.20 | 0.7530 | 556.0 | 566.8 | |
| 0.00 | 1.52 | 0.00 | 1.04 | -12.18 | 228.12 | -43.09 | 104.46 | 0.6919 | -317.0 | -325.8 | |
| 0.00 | 3.23 | 0.00 | 2.25 | -14.44 | 227.48 | -43.73 | 107.52 | 0.7043 | 729.0 | 505.1 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -18.27 | 226.10 | -45.12 | 112.37 | 0.7299 | 528.0 | 433.2 | |
| 0.72 | 1.88 | 0.50 | 1.32 | -14.57 | 226.84 | -44.38 | 107.54 | 0.7122 | 691.4 | 557.8 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -14.63 | 226.65 | -44.57 | 107.57 | 0.7146 | 379.0 | 400.8 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -15.42 | 226.26 | -44.96 | 108.56 | 0.7209 | -195.0 | -334.0 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -14.71 | 226.45 | -44.77 | 107.64 | 0.7171 | 364.0 | 278.8 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -10.70 | 227.34 | -43.87 | 102.20 | 0.6991 | -566.0 | -433.6 | |
| 0.00 | 1.43 | 0.00 | 1.03 | -15.69 | 225.96 | -45.26 | 108.85 | 0.7249 | -696.0 | -568.2 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -15.88 | 225.90 | -45.32 | 109.09 | 0.7260 | -601.0 | -495.7 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -8.62 | 227.30 | -43.91 | 99.22 | 0.6970 | 190.0 | 284.8 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -15.56 | 225.77 | -45.45 | 108.63 | 0.7268 | -509.0 | -437.0 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -13.74 | 226.21 | -45.01 | 106.25 | 0.7178 | -496.0 | -349.5 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -13.33 | 225.87 | -45.35 | 105.60 | 0.7210 | -780.0 | -697.4 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -13.48 | 225.74 | -45.48 | 105.78 | 0.7228 | -706.0 | -623.0 | |
| 0.00 | 1.52 | 0.00 | 1.06 | -7.96 | 226.80 | -44.42 | 98.23 | 0.7027 | -688.0 | -545.0 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -15.50 | 225.11 | -46.11 | 108.39 | 0.7341 | -573.0 | -501.8 | |
| 0.00 | 1.70 | 0.00 | 1.23 | -14.82 | 225.25 | -45.96 | 107.51 | 0.7310 | -782.0 | -699.3 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -14.64 | 225.30 | -45.91 | 107.27 | 0.7301 | -698.0 | -548.5 | |
| 0.00 | 3.14 | 0.00 | 2.36 | -18.57 | 224.01 | -47.21 | 112.16 | 0.7534 | -731.0 | -683.0 | |
| 0.00 | 1.52 | 0.00 | 1.08 | -12.09 | 225.84 | -45.38 | 103.89 | 0.7192 | -541.0 | -443.6 | |
| 0.63 | 1.70 | 0.46 | 1.24 | -14.66 | 225.07 | -46.14 | 107.25 | 0.7328 | -732.4 | -634.7 | |
| 1.17 | 3.05 | 0.84 | 2.20 | -13.89 | 225.28 | -45.94 | 106.25 | 0.7289 | 543.2 | 290.9 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -8.13 | 226.43 | -44.79 | 98.43 | 0.7073 | -612.0 | -491.1 | |
| 2.33 | 5.92 | 1.80 | 4.57 | -19.24 | 222.64 | -48.57 | 112.65 | 0.7694 | -653.1 | -562.0 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -14.16 | 224.20 | -47.01 | 106.39 | 0.7416 | -768.0 | -584.2 | |
| 12.28 | 68.77 | 9.41 | 52.76 | -17.22 | 222.58 | -48.63 | 110.05 | 0.7654 | 924.1 | 239.9 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -14.76 | 222.82 | -48.40 | 106.90 | 0.7581 | -528.0 | -446.0 | |
| 0.00 | 1.52 | 0.00 | 1.16 | -14.66 | 222.61 | -48.61 | 106.73 | 0.7601 | -782.0 | -730.5 | |
| 1.26 | 4.66 | 0.96 | 3.56 | -14.89 | 222.30 | -48.92 | 106.98 | 0.7639 | -689.9 | -571.1 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -15.32 | 222.12 | -49.10 | 107.50 | 0.7666 | -364.0 | -306.6 | |
| 1.61 | 6.19 | 1.23 | 4.72 | -14.33 | 222.33 | -48.89 | 106.26 | 0.7627 | -702.6 | -607.1 | |
| 0.00 | 2.24 | 0.00 | 1.72 | -14.94 | 222.04 | -49.17 | 107.00 | 0.7668 | -367.0 | -294.4 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -13.76 | 222.06 | -49.16 | 105.47 | 0.7647 | -505.0 | -480.4 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -22.63 | 218.31 | -52.91 | 115.70 | 0.8192 | -507.0 | -526.0 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -22.40 | 218.16 | -53.05 | 115.38 | 0.8200 | -502.0 | -520.0 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -18.38 | 219.43 | -51.78 | 110.81 | 0.7998 | -487.0 | -393.9 | |
| 0.00 | 1.34 | 0.00 | 1.13 | -18.24 | 218.34 | -52.88 | 110.41 | 0.8102 | -592.0 | -494.2 | |
| 0.00 | 1.52 | 0.00 | 1.41 | -19.73 | 214.59 | -56.63 | 111.48 | 0.8468 | -323.0 | -326.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
