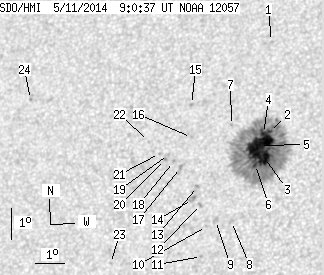

SDO HMI 2014-05-11 09:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.08 | 312.01 | 29.72 | 174.93 | 14.75 | 248.95 | -21.72 | 49.78 | 0.4706 | -402.5 | -262.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 09:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | 18.26 | 249.14 | -21.53 | 44.04 | 0.5033 | 693.0 | 518.6 | |
| 0.99 | 282.76 | 0.55 | 158.33 | 15.36 | 249.42 | -21.25 | 48.18 | 0.4710 | -840.1 | -374.2 | |
| 13.45 | -2.00 | 7.51 | -2.00 | 14.53 | 249.33 | -21.34 | 49.67 | 0.4639 | -1313.7 | 999999 | |
| 3.41 | -2.00 | 1.91 | -2.00 | 15.30 | 249.22 | -21.45 | 48.53 | 0.4727 | -854.4 | 999999 | |
| 33.53 | -2.00 | 18.80 | -2.00 | 14.92 | 249.12 | -21.55 | 49.28 | 0.4701 | -1081.5 | 999999 | |
| 1.70 | -2.00 | 0.95 | -2.00 | 14.32 | 249.05 | -21.62 | 50.40 | 0.4652 | -881.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 15.58 | 248.10 | -22.57 | 49.48 | 0.4883 | 187.0 | 122.1 | |
| 0.00 | 2.15 | 0.00 | 1.20 | 12.53 | 248.42 | -22.25 | 54.34 | 0.4569 | 729.0 | 635.1 | |
| 0.00 | 3.32 | 0.00 | 1.85 | 12.57 | 247.87 | -22.80 | 54.90 | 0.4641 | 698.0 | 623.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 12.39 | 247.59 | -23.08 | 55.56 | 0.4662 | 664.0 | 498.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 11.45 | 247.50 | -23.17 | 57.38 | 0.4597 | 666.0 | 622.2 | |
| 0.00 | 1.79 | 0.00 | 1.01 | 13.09 | 247.32 | -23.35 | 54.61 | 0.4755 | 796.0 | 708.5 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 13.66 | 247.16 | -23.51 | 53.80 | 0.4824 | 870.0 | 715.7 | |
| 0.00 | 4.21 | 0.00 | 2.38 | 13.25 | 247.03 | -23.64 | 54.65 | 0.4805 | 825.0 | 650.6 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 16.28 | 246.64 | -24.03 | 50.07 | 0.5117 | 755.0 | 655.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 15.23 | 246.78 | -23.89 | 51.61 | 0.5007 | 738.0 | 643.8 | |
| 0.00 | 2.33 | 0.00 | 1.33 | 14.28 | 246.51 | -24.16 | 53.47 | 0.4956 | 780.0 | 606.7 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 14.48 | 246.25 | -24.42 | 53.43 | 0.5005 | 809.0 | 672.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 14.70 | 246.05 | -24.62 | 53.27 | 0.5048 | 760.0 | 602.4 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 14.55 | 245.96 | -24.71 | 53.62 | 0.5045 | 778.0 | 631.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 14.74 | 245.73 | -24.94 | 53.54 | 0.5090 | 746.0 | 506.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 15.13 | 245.30 | -25.37 | 53.36 | 0.5175 | 714.0 | 588.5 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 11.31 | 244.42 | -26.25 | 60.73 | 0.4992 | 678.0 | 585.4 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 16.60 | 240.89 | -29.78 | 55.27 | 0.5814 | 635.0 | 576.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
