SDO HMI 2014-05-11 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.69 | 301.92 | 42.03 | 205.38 | -13.92 | 228.09 | -42.03 | 107.06 | 0.6787 | 219.9 | 110.0 | |
|
previous
or next observation for the same group /

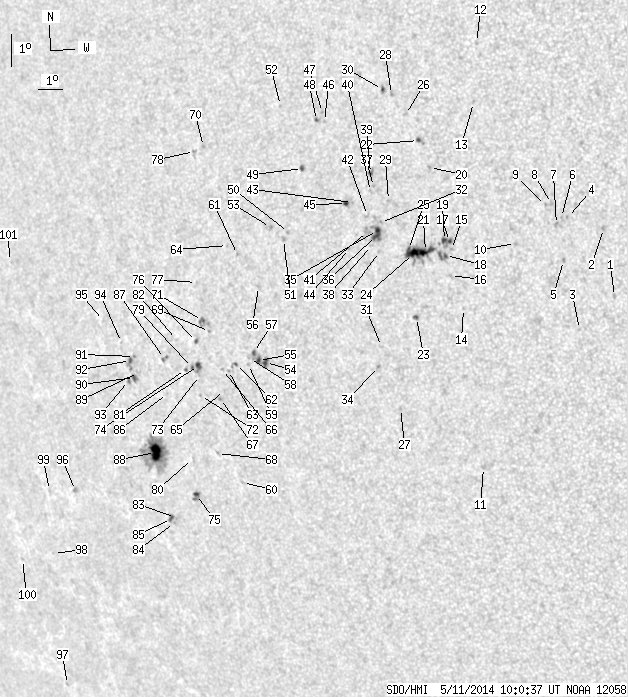

back to the solar disc SDO HMI 2014-05-11 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.92 | -13.01 | 241.87 | -28.25 | 111.17 | 0.4966 | 616.0 | 527.2 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -10.91 | 241.73 | -28.40 | 106.99 | 0.4903 | 605.0 | 580.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.99 | 240.49 | -29.63 | 112.23 | 0.5203 | 673.0 | 546.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -10.55 | 240.49 | -29.63 | 105.73 | 0.5069 | 755.0 | 679.5 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -11.85 | 240.20 | -29.92 | 108.10 | 0.5156 | 719.0 | 599.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -10.54 | 240.28 | -29.84 | 105.63 | 0.5100 | 740.0 | 670.1 | |
| 0.00 | 2.24 | 0.00 | 1.29 | -10.75 | 240.08 | -30.04 | 105.95 | 0.5136 | 847.0 | 687.4 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -10.10 | 239.97 | -30.15 | 104.67 | 0.5132 | 755.0 | 617.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -10.16 | 239.75 | -30.37 | 104.69 | 0.5165 | 697.0 | 612.0 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -11.29 | 238.54 | -31.58 | 106.34 | 0.5373 | 723.0 | 607.9 | |
| 0.00 | 2.33 | 0.00 | 1.44 | -18.17 | 236.17 | -33.96 | 116.88 | 0.5972 | 738.0 | 621.2 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -5.14 | 237.70 | -32.43 | 94.74 | 0.5380 | 500.0 | 383.4 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -6.95 | 237.46 | -32.66 | 98.08 | 0.5432 | 647.0 | 566.4 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -13.22 | 236.35 | -33.77 | 108.87 | 0.5740 | 486.0 | 438.7 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -11.40 | 236.17 | -33.95 | 105.68 | 0.5708 | 879.0 | 739.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -12.19 | 236.02 | -34.10 | 106.99 | 0.5752 | 675.0 | 461.0 | |
| 0.99 | 9.95 | 0.59 | 6.00 | -11.15 | 236.13 | -33.99 | 105.24 | 0.5707 | 1046.5 | 819.7 | |
| 0.90 | 6.81 | 0.54 | 4.12 | -11.58 | 235.92 | -34.20 | 105.90 | 0.5747 | 847.2 | 702.0 | |
| 1.79 | -17.00 | 1.08 | -17.00 | -11.12 | 235.95 | -34.17 | 105.12 | 0.5731 | 943.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -8.88 | 235.66 | -34.46 | 101.17 | 0.5720 | 786.0 | 640.5 | |
| 7.17 | 33.35 | 4.37 | 20.38 | -11.43 | 235.19 | -34.93 | 105.42 | 0.5844 | 1002.3 | 450.9 | |
| 0.99 | 3.50 | 0.60 | 2.11 | -8.04 | 235.34 | -34.78 | 99.65 | 0.5751 | 851.9 | 678.3 | |
| 0.90 | 2.60 | 0.55 | 1.61 | -13.44 | 234.53 | -35.59 | 108.52 | 0.5992 | 807.3 | 632.7 | |
| 8.79 | -21.00 | 5.38 | -21.00 | -11.48 | 234.73 | -35.39 | 105.35 | 0.5908 | 869.8 | 999999 | |
| 0.99 | -21.00 | 0.61 | -21.00 | -11.35 | 234.56 | -35.56 | 105.08 | 0.5928 | 647.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -7.24 | 234.93 | -35.19 | 98.19 | 0.5798 | 613.0 | 545.6 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -16.23 | 233.36 | -36.76 | 112.48 | 0.6241 | 69.0 | 79.4 | |
| 0.00 | 1.70 | 0.00 | 1.04 | -6.62 | 234.46 | -35.66 | 97.06 | 0.5857 | 775.0 | 608.6 | |
| 0.00 | 1.43 | 0.00 | 0.88 | -9.83 | 234.00 | -36.12 | 102.41 | 0.5969 | 600.0 | 545.6 | |
| 0.63 | 2.96 | 0.38 | 1.81 | -6.46 | 234.14 | -35.99 | 96.75 | 0.5901 | 672.6 | 537.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -14.29 | 233.02 | -37.11 | 109.32 | 0.6218 | 693.0 | 505.3 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -10.49 | 233.61 | -36.51 | 103.40 | 0.6036 | 709.0 | 487.1 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -11.38 | 233.44 | -36.68 | 104.80 | 0.6079 | 471.0 | 389.5 | |
| 0.00 | 1.43 | 0.00 | 0.91 | -14.90 | 232.77 | -37.35 | 110.19 | 0.6269 | 760.0 | 593.2 | |
| 2.33 | 11.39 | 1.45 | 7.08 | -10.73 | 233.46 | -36.66 | 103.76 | 0.6062 | 800.9 | 506.7 | |
| 2.60 | -35.00 | 1.62 | -35.00 | -10.88 | 233.40 | -36.72 | 103.99 | 0.6073 | 814.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -9.39 | 233.49 | -36.63 | 101.56 | 0.6031 | 779.0 | 650.2 | |
| 0.00 | 1.52 | 0.00 | 0.95 | -11.18 | 233.16 | -36.96 | 104.41 | 0.6112 | 474.0 | 381.3 | |
| 0.81 | 3.32 | 0.50 | 2.06 | -8.99 | 233.42 | -36.70 | 100.88 | 0.6033 | -552.1 | -370.7 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -9.54 | 233.35 | -36.77 | 101.77 | 0.6052 | 641.0 | 463.6 | |
| 0.00 | 4.21 | 0.00 | 2.63 | -10.75 | 233.07 | -37.05 | 103.69 | 0.6115 | -113.0 | -84.2 | |
| 0.00 | 1.79 | 0.00 | 1.12 | -10.26 | 233.14 | -36.98 | 102.91 | 0.6095 | 67.0 | -13.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -9.85 | 232.62 | -37.50 | 102.12 | 0.6158 | 739.0 | 626.7 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -11.25 | 232.30 | -37.83 | 104.28 | 0.6229 | -728.0 | -668.7 | |
| 1.34 | 2.69 | 0.85 | 1.69 | -9.87 | 232.38 | -37.74 | 102.11 | 0.6190 | 755.9 | 648.3 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -7.35 | 231.83 | -38.30 | 97.96 | 0.6229 | -778.0 | -655.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -7.08 | 231.78 | -38.35 | 97.51 | 0.6233 | -399.0 | -406.1 | |
| 0.45 | 2.15 | 0.28 | 1.36 | -7.31 | 231.52 | -38.60 | 97.86 | 0.6270 | -679.6 | -620.2 | |
| 1.17 | 2.60 | 0.75 | 1.67 | -8.75 | 230.80 | -39.32 | 100.03 | 0.6383 | 733.9 | 558.6 | |
| 0.00 | 1.34 | 0.00 | 0.88 | -10.68 | 229.96 | -40.16 | 102.86 | 0.6524 | -627.0 | -548.6 | |
| 0.00 | 1.97 | 0.00 | 1.29 | -10.88 | 229.72 | -40.40 | 103.12 | 0.6558 | -753.0 | -664.9 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -6.81 | 230.15 | -39.98 | 96.93 | 0.6449 | 629.0 | 560.8 | |
| 0.00 | 2.06 | 0.00 | 1.36 | -10.50 | 229.26 | -40.87 | 102.45 | 0.6611 | -709.0 | -604.9 | |
| 2.51 | 12.64 | 1.70 | 8.57 | -14.62 | 228.23 | -41.89 | 108.28 | 0.6828 | 763.2 | 543.5 | |
| 1.88 | -54.00 | 1.28 | -54.00 | -14.55 | 227.95 | -42.17 | 108.10 | 0.6860 | 729.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -12.28 | 228.44 | -41.68 | 104.93 | 0.6748 | -638.0 | -560.9 | |
| 0.90 | -54.00 | 0.61 | -54.00 | -14.30 | 227.80 | -42.33 | 107.69 | 0.6872 | 618.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -14.48 | 227.58 | -42.54 | 107.89 | 0.6902 | 340.0 | 343.0 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -14.66 | 227.50 | -42.62 | 108.13 | 0.6917 | 547.0 | 463.5 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -18.31 | 226.21 | -43.91 | 112.81 | 0.7166 | 526.0 | 458.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -11.27 | 227.76 | -42.37 | 103.31 | 0.6814 | -506.0 | -453.7 | |
| 0.54 | 3.32 | 0.37 | 2.29 | -14.64 | 226.94 | -43.18 | 107.95 | 0.6982 | 513.3 | 450.2 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -14.81 | 226.60 | -43.52 | 108.10 | 0.7027 | 448.0 | 396.6 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -10.98 | 227.39 | -42.73 | 102.81 | 0.6855 | -353.0 | -317.7 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -15.42 | 226.26 | -43.86 | 108.87 | 0.7081 | -594.0 | -438.8 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -14.77 | 226.35 | -43.77 | 107.98 | 0.7056 | 411.0 | 277.2 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -15.66 | 226.02 | -44.10 | 109.13 | 0.7115 | -566.0 | -540.1 | |
| 0.00 | 1.34 | 0.00 | 0.96 | -17.36 | 225.39 | -44.73 | 111.28 | 0.7231 | 537.0 | 473.3 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -13.58 | 226.07 | -44.05 | 106.25 | 0.7062 | -541.0 | -458.1 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -7.94 | 226.86 | -43.26 | 98.31 | 0.6883 | -669.0 | -559.7 | |
| 1.08 | 8.25 | 0.75 | 5.76 | -13.24 | 225.85 | -44.27 | 105.71 | 0.7082 | -820.2 | -620.8 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -15.54 | 225.17 | -44.95 | 108.74 | 0.7210 | -358.0 | -286.2 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -14.92 | 225.30 | -44.82 | 107.92 | 0.7182 | -557.0 | -538.6 | |
| 2.51 | 5.11 | 1.78 | 3.62 | -14.61 | 225.34 | -44.79 | 107.51 | 0.7171 | -887.4 | -718.5 | |
| 1.61 | 5.83 | 1.19 | 4.29 | -18.60 | 224.02 | -46.10 | 112.53 | 0.7416 | -762.3 | -665.7 | |
| 0.81 | 1.97 | 0.57 | 1.39 | -13.87 | 225.44 | -44.69 | 106.51 | 0.7144 | 587.2 | 438.9 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -12.06 | 225.85 | -44.27 | 104.07 | 0.7061 | -581.0 | -461.6 | |
| 0.00 | 1.61 | 0.00 | 1.11 | -8.07 | 226.46 | -43.66 | 98.47 | 0.6934 | -707.0 | -606.1 | |
| 0.54 | 1.79 | 0.38 | 1.28 | -14.66 | 225.06 | -45.07 | 107.51 | 0.7204 | -732.7 | -650.1 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -17.48 | 224.22 | -45.90 | 111.09 | 0.7365 | 426.0 | 281.2 | |
| 0.36 | 1.43 | 0.26 | 1.03 | -14.71 | 224.73 | -45.39 | 107.50 | 0.7243 | -504.2 | -468.1 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -13.78 | 224.57 | -45.55 | 106.19 | 0.7242 | -212.0 | -217.9 | |
| 0.00 | 1.52 | 0.00 | 1.15 | -19.29 | 222.79 | -47.34 | 113.06 | 0.7566 | -699.0 | -570.0 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -19.44 | 222.68 | -47.44 | 113.23 | 0.7582 | -700.0 | -603.3 | |
| 1.79 | 3.77 | 1.36 | 2.85 | -19.31 | 222.59 | -47.54 | 113.03 | 0.7588 | -639.2 | -500.2 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -15.42 | 223.72 | -46.41 | 108.22 | 0.7373 | -562.0 | -485.6 | |
| 0.00 | 3.05 | 0.00 | 2.21 | -14.34 | 223.89 | -46.24 | 106.80 | 0.7332 | -796.0 | -692.9 | |
| 12.82 | 70.73 | 9.62 | 53.17 | -17.22 | 222.59 | -47.53 | 110.33 | 0.7537 | 932.4 | 223.2 | |
| 0.00 | 2.78 | 0.00 | 2.07 | -14.72 | 222.58 | -47.54 | 107.04 | 0.7486 | -737.0 | -629.2 | |
| 1.79 | 4.03 | 1.34 | 3.02 | -14.87 | 222.35 | -47.77 | 107.19 | 0.7514 | -697.9 | -553.5 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -14.22 | 222.54 | -47.58 | 106.37 | 0.7482 | -685.0 | -646.0 | |
| 1.34 | 6.10 | 1.00 | 4.56 | -14.34 | 222.32 | -47.80 | 106.48 | 0.7508 | -673.8 | -507.0 | |
| 0.36 | 2.06 | 0.27 | 1.55 | -14.95 | 222.05 | -48.08 | 107.23 | 0.7549 | -353.5 | -254.2 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -13.77 | 222.06 | -48.06 | 105.68 | 0.7527 | -320.0 | -392.2 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -13.06 | 221.40 | -48.72 | 104.64 | 0.7589 | -413.0 | -362.5 | |
| 0.00 | 2.33 | 0.00 | 1.92 | -18.25 | 218.24 | -51.88 | 110.62 | 0.8005 | -621.0 | -513.2 | |
| 0.00 | 1.34 | 0.00 | 1.24 | -24.34 | 214.52 | -55.60 | 117.06 | 0.8462 | -348.0 | -280.0 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -20.16 | 216.17 | -53.95 | 112.51 | 0.8237 | -422.0 | -361.2 | |
| 0.00 | 0.90 | 0.00 | 0.76 | -18.19 | 216.90 | -53.23 | 110.28 | 0.8135 | -347.0 | -328.2 | |
| 0.00 | 1.26 | 0.00 | 1.14 | -20.28 | 214.36 | -55.76 | 112.28 | 0.8401 | -310.0 | -217.0 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -11.08 | 217.35 | -52.77 | 101.57 | 0.7998 | -469.0 | -380.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
