SDO HMI 2014-05-11 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.89 | 348.88 | 55.45 | 232.68 | -14.34 | 227.20 | -40.73 | 108.04 | 0.6652 | 137.5 | 73.2 | |
|
previous
or next observation for the same group /

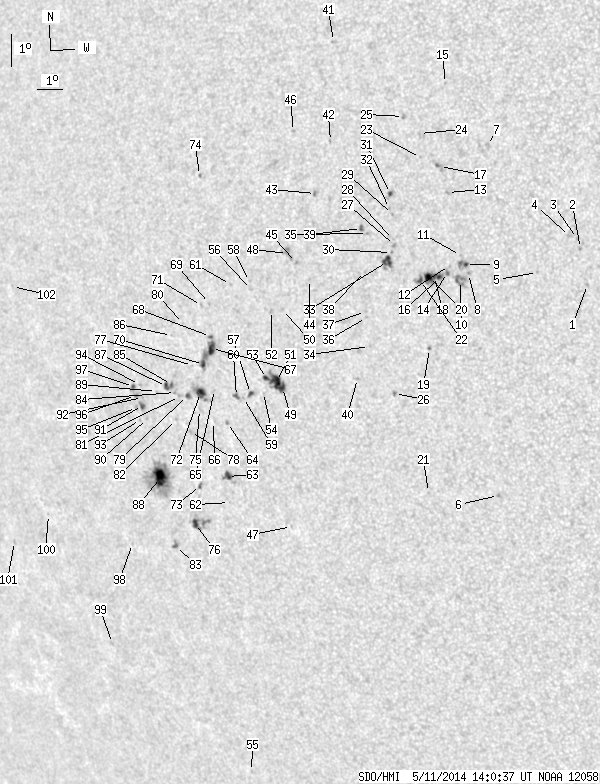

back to the solar disc SDO HMI 2014-05-11 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.86 | -11.82 | 240.38 | -27.54 | 109.25 | 0.4813 | 617.0 | 494.1 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -10.71 | 240.26 | -27.67 | 106.94 | 0.4789 | 807.0 | 661.2 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -10.40 | 240.18 | -27.74 | 106.28 | 0.4789 | 735.0 | 622.9 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -10.33 | 239.91 | -28.01 | 106.02 | 0.4827 | 747.0 | 588.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -11.40 | 238.67 | -29.25 | 107.57 | 0.5045 | 645.0 | 534.0 | |
| 0.00 | 1.61 | 0.00 | 0.97 | -18.25 | 236.17 | -31.76 | 118.33 | 0.5701 | 773.0 | 623.9 | |
| 0.00 | 2.87 | 0.00 | 1.65 | -7.49 | 237.28 | -30.65 | 99.49 | 0.5144 | 495.0 | 389.7 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -11.37 | 236.20 | -31.73 | 106.44 | 0.5396 | 862.0 | 695.4 | |
| 1.08 | 7.35 | 0.63 | 4.32 | -11.09 | 236.13 | -31.80 | 105.91 | 0.5398 | 1040.9 | 884.1 | |
| 0.00 | 10.49 | 0.00 | 6.18 | -11.57 | 235.88 | -32.04 | 106.69 | 0.5448 | 675.0 | 726.1 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -10.81 | 235.98 | -31.95 | 105.35 | 0.5411 | 591.0 | 470.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -11.10 | 235.54 | -32.39 | 105.72 | 0.5481 | 606.0 | 518.6 | |
| 0.00 | 1.70 | 0.00 | 1.00 | -8.88 | 235.72 | -32.21 | 101.73 | 0.5399 | 785.0 | 628.6 | |
| 0.00 | 2.78 | 0.00 | 1.65 | -11.31 | 235.44 | -32.49 | 106.06 | 0.5502 | 904.0 | 735.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -5.57 | 235.92 | -32.01 | 95.60 | 0.5322 | 636.0 | 560.6 | |
| 1.34 | 15.77 | 0.80 | 9.41 | -11.46 | 235.13 | -32.80 | 106.20 | 0.5550 | 986.9 | 690.6 | |
| 0.00 | 4.30 | 0.00 | 2.53 | -8.08 | 235.51 | -32.42 | 100.21 | 0.5414 | 835.0 | 696.1 | |
| 1.88 | -16.00 | 1.12 | -16.00 | -11.42 | 234.95 | -32.98 | 106.07 | 0.5574 | 1038.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -13.62 | 234.44 | -33.49 | 109.68 | 0.5717 | 715.0 | 638.3 | |
| 4.57 | -16.00 | 2.73 | -16.00 | -11.45 | 234.72 | -33.20 | 106.04 | 0.5606 | 948.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -18.08 | 233.54 | -34.39 | 116.52 | 0.6023 | 470.0 | 415.2 | |
| 1.70 | 5.56 | 1.02 | 3.33 | -11.53 | 234.41 | -33.51 | 106.07 | 0.5651 | 683.1 | 488.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -7.79 | 234.84 | -33.08 | 99.53 | 0.5505 | 505.0 | 412.6 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -7.06 | 234.87 | -33.06 | 98.21 | 0.5491 | 601.0 | 524.2 | |
| 0.00 | 2.33 | 0.00 | 1.39 | -6.52 | 234.32 | -33.60 | 97.17 | 0.5563 | 868.0 | 542.1 | |
| 0.00 | 1.70 | 0.00 | 1.05 | -14.97 | 232.87 | -35.05 | 111.23 | 0.5974 | 788.0 | 644.4 | |
| 0.00 | 1.97 | 0.00 | 1.19 | -10.43 | 233.59 | -34.33 | 103.91 | 0.5736 | 736.0 | 562.2 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -10.25 | 233.58 | -34.35 | 103.58 | 0.5734 | 413.0 | 376.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -9.49 | 233.63 | -34.29 | 102.28 | 0.5709 | 611.0 | 509.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -10.64 | 233.45 | -34.47 | 104.23 | 0.5761 | 712.0 | 553.2 | |
| 0.99 | 2.69 | 0.59 | 1.62 | -8.84 | 233.63 | -34.30 | 101.16 | 0.5697 | -755.0 | -508.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -9.30 | 233.54 | -34.38 | 101.93 | 0.5718 | 588.0 | 521.6 | |
| 5.65 | 9.86 | 3.42 | 5.98 | -10.91 | 233.27 | -34.66 | 104.63 | 0.5793 | 745.3 | 523.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -13.49 | 232.18 | -35.74 | 108.56 | 0.6014 | 564.0 | 417.7 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -10.03 | 232.63 | -35.30 | 102.96 | 0.5860 | 770.0 | 674.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -12.60 | 232.22 | -35.71 | 107.11 | 0.5982 | 582.0 | 438.2 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -12.41 | 232.21 | -35.72 | 106.81 | 0.5978 | 562.0 | 401.9 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -11.19 | 232.36 | -35.57 | 104.83 | 0.5925 | -629.0 | -529.0 | |
| 0.99 | 2.78 | 0.60 | 1.70 | -9.88 | 232.42 | -35.50 | 102.64 | 0.5886 | 694.2 | 618.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -14.46 | 231.54 | -36.38 | 109.87 | 0.6130 | 695.0 | 550.7 | |
| 0.00 | 2.06 | 0.00 | 1.26 | -4.17 | 231.88 | -36.04 | 92.87 | 0.5898 | 737.0 | 484.6 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -7.20 | 231.54 | -36.38 | 97.96 | 0.5964 | -660.0 | -607.4 | |
| 0.00 | 2.24 | 0.00 | 1.40 | -8.75 | 230.80 | -37.12 | 100.43 | 0.6087 | 745.0 | 625.5 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -11.37 | 230.21 | -37.72 | 104.52 | 0.6218 | -678.0 | -553.4 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -10.83 | 229.78 | -38.14 | 103.56 | 0.6263 | -783.0 | -686.5 | |
| 0.00 | 1.52 | 0.00 | 0.96 | -6.85 | 230.16 | -37.77 | 97.22 | 0.6152 | 608.0 | 489.4 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -18.97 | 227.79 | -40.13 | 115.13 | 0.6756 | 582.0 | 477.8 | |
| 0.00 | 7.62 | 0.00 | 4.85 | -10.54 | 229.47 | -38.45 | 103.03 | 0.6298 | -739.0 | -631.0 | |
| 3.85 | 25.36 | 2.51 | 16.58 | -14.64 | 228.52 | -39.40 | 109.08 | 0.6521 | 777.6 | 412.4 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -12.25 | 228.99 | -38.93 | 105.57 | 0.6397 | -673.0 | -536.2 | |
| 9.32 | -49.00 | 6.09 | -49.00 | -14.45 | 228.32 | -39.61 | 108.72 | 0.6541 | 806.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.10 | -12.26 | 228.55 | -39.37 | 105.48 | 0.6455 | -682.0 | -570.3 | |
| 1.79 | -49.00 | 1.18 | -49.00 | -14.34 | 227.94 | -39.99 | 108.44 | 0.6586 | 445.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -14.77 | 227.72 | -40.21 | 109.01 | 0.6625 | 428.0 | 334.0 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -26.75 | 222.96 | -44.97 | 123.37 | 0.7579 | 470.0 | 367.9 | |
| 0.00 | 1.34 | 0.00 | 0.88 | -11.59 | 227.86 | -40.06 | 104.29 | 0.6529 | -620.0 | -488.5 | |
| 1.61 | 3.32 | 1.07 | 2.20 | -14.78 | 227.18 | -40.75 | 108.86 | 0.6692 | 573.1 | 419.5 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -11.35 | 227.82 | -40.10 | 103.90 | 0.6529 | -612.0 | -535.6 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -14.89 | 226.86 | -41.06 | 108.92 | 0.6734 | 236.0 | 314.8 | |
| 1.43 | 3.41 | 0.96 | 2.28 | -14.85 | 226.58 | -41.35 | 108.78 | 0.6768 | 537.9 | 369.6 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -11.41 | 227.04 | -40.89 | 103.82 | 0.6630 | -478.0 | -327.2 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -18.13 | 225.40 | -42.53 | 113.04 | 0.7004 | -547.0 | -391.6 | |
| 4.21 | 8.42 | 2.90 | 5.79 | -17.32 | 225.55 | -42.37 | 111.96 | 0.6961 | 702.7 | 478.0 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -15.64 | 226.01 | -41.92 | 109.74 | 0.6858 | -701.0 | -599.5 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -14.60 | 225.71 | -42.22 | 108.17 | 0.6866 | -467.0 | -507.4 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -15.59 | 225.42 | -42.50 | 109.49 | 0.6926 | -558.0 | -462.0 | |
| 6.27 | 25.45 | 4.23 | 17.24 | -13.34 | 225.87 | -42.05 | 106.39 | 0.6817 | -909.3 | -229.0 | |
| 0.72 | -67.00 | 0.48 | -67.00 | -12.97 | 225.91 | -42.02 | 105.87 | 0.6804 | -768.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -11.96 | 226.07 | -41.86 | 104.43 | 0.6763 | -326.0 | -367.8 | |
| 2.42 | -67.00 | 1.65 | -67.00 | -13.82 | 225.43 | -42.50 | 106.97 | 0.6882 | 596.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -12.01 | 225.73 | -42.20 | 104.42 | 0.6807 | -361.0 | -348.6 | |
| 6.45 | 23.84 | 4.43 | 16.38 | -14.68 | 225.10 | -42.83 | 108.10 | 0.6942 | -909.0 | -529.2 | |
| 0.00 | 2.42 | 0.00 | 1.70 | -17.55 | 224.31 | -43.62 | 111.88 | 0.7111 | 531.0 | 466.4 | |
| 0.00 | 1.61 | 0.00 | 1.07 | -8.05 | 226.28 | -41.64 | 98.66 | 0.6678 | -635.0 | -538.0 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -15.20 | 224.92 | -43.00 | 108.79 | 0.6976 | -563.0 | -529.1 | |
| 3.76 | 16.49 | 2.68 | 11.72 | -18.73 | 223.71 | -44.22 | 113.29 | 0.7213 | -717.7 | -596.0 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -13.83 | 224.96 | -42.97 | 106.87 | 0.6939 | -193.0 | -133.4 | |
| 0.00 | 1.70 | 0.00 | 1.19 | -15.86 | 224.36 | -43.57 | 109.57 | 0.7059 | -496.0 | -450.5 | |
| 1.61 | -72.00 | 1.12 | -72.00 | -14.75 | 224.52 | -43.41 | 108.05 | 0.7012 | -811.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -12.53 | 224.86 | -43.07 | 104.99 | 0.6924 | -470.0 | -443.3 | |
| 0.00 | 1.52 | 0.00 | 1.06 | -14.77 | 224.17 | -43.76 | 107.99 | 0.7054 | -723.0 | -525.7 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -15.47 | 223.85 | -44.07 | 108.88 | 0.7108 | -636.0 | -505.8 | |
| 1.17 | 4.21 | 0.85 | 3.07 | -19.42 | 222.56 | -45.36 | 113.84 | 0.7360 | -771.7 | -574.8 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -14.64 | 224.03 | -43.90 | 107.77 | 0.7068 | -533.0 | -592.4 | |
| 1.08 | 6.99 | 0.75 | 4.89 | -14.38 | 223.92 | -44.01 | 107.39 | 0.7075 | -677.6 | -522.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -12.88 | 224.27 | -43.66 | 105.36 | 0.7002 | -553.0 | -499.7 | |
| 2.60 | -85.00 | 1.82 | -85.00 | -14.44 | 223.68 | -44.24 | 107.41 | 0.7104 | -759.3 | 999999 | |
| 13.26 | 70.08 | 9.57 | 50.65 | -17.24 | 222.62 | -45.31 | 110.95 | 0.7293 | 962.9 | 241.2 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -14.57 | 223.21 | -44.72 | 107.48 | 0.7163 | -378.0 | -348.2 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -15.39 | 222.59 | -45.34 | 108.45 | 0.7252 | -481.0 | -421.7 | |
| 2.06 | 3.76 | 1.48 | 2.70 | -14.98 | 222.48 | -45.45 | 107.86 | 0.7256 | -779.9 | -615.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -14.74 | 222.54 | -45.38 | 107.54 | 0.7243 | -754.0 | -586.1 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -15.41 | 222.27 | -45.66 | 108.39 | 0.7289 | -338.0 | -341.2 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -14.33 | 222.52 | -45.41 | 106.99 | 0.7238 | -686.0 | -610.5 | |
| 0.00 | 1.88 | 0.00 | 1.36 | -15.03 | 222.19 | -45.73 | 107.87 | 0.7289 | -427.0 | -341.4 | |
| 0.00 | 2.24 | 0.00 | 1.61 | -14.66 | 222.25 | -45.68 | 107.38 | 0.7275 | -635.0 | -503.8 | |
| 1.08 | 3.23 | 0.77 | 2.32 | -14.38 | 222.23 | -45.69 | 106.99 | 0.7271 | -623.2 | -399.4 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -19.25 | 220.62 | -47.31 | 113.03 | 0.7563 | -535.0 | -452.0 | |
| 0.00 | 1.43 | 0.00 | 1.15 | -22.36 | 218.29 | -49.64 | 116.27 | 0.7881 | -533.0 | -449.0 | |
| 0.00 | 0.99 | 0.00 | 0.80 | -18.18 | 216.91 | -51.01 | 110.74 | 0.7918 | -266.0 | -256.1 | |
| 0.00 | 1.43 | 0.00 | 1.22 | -18.95 | 214.80 | -53.12 | 111.23 | 0.8138 | -477.0 | -383.5 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -11.10 | 217.41 | -50.51 | 101.85 | 0.7760 | -340.0 | -289.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
