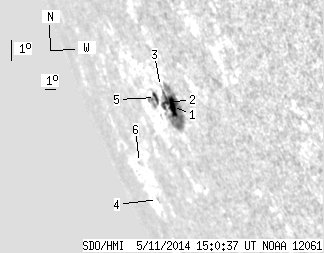

SDO HMI 2014-05-11 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.44 | 67.75 | 23.15 | 118.27 | -24.02 | 194.13 | -73.24 | 114.16 | 0.9596 | 275.7 | 112.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.41 | 55.47 | 15.92 | 94.27 | -24.03 | 194.64 | -72.73 | 114.21 | 0.9575 | 518.2 | 224.4 | |
| 1.43 | -1.00 | 2.48 | -1.00 | -23.88 | 194.18 | -73.19 | 114.02 | 0.9596 | 201.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.92 | -23.35 | 194.25 | -73.12 | 113.47 | 0.9591 | -161.0 | -143.7 | |
| 0.00 | 0.90 | 0.00 | 2.57 | -26.76 | 186.88 | -80.49 | 116.63 | 0.9860 | -321.0 | -281.4 | |
| 2.60 | 10.57 | 4.75 | 19.73 | -23.66 | 193.19 | -74.18 | 113.73 | 0.9638 | -207.0 | -360.7 | |
| 0.00 | 0.27 | 0.00 | 0.78 | -25.51 | 186.87 | -80.51 | 115.36 | 0.9859 | -74.0 | -96.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
