SDO HMI 2014-05-11 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.04 | 372.04 | 58.73 | 245.36 | -14.52 | 226.86 | -39.96 | 108.57 | 0.6565 | 118.5 | 9.5 | |
|
previous
or next observation for the same group /

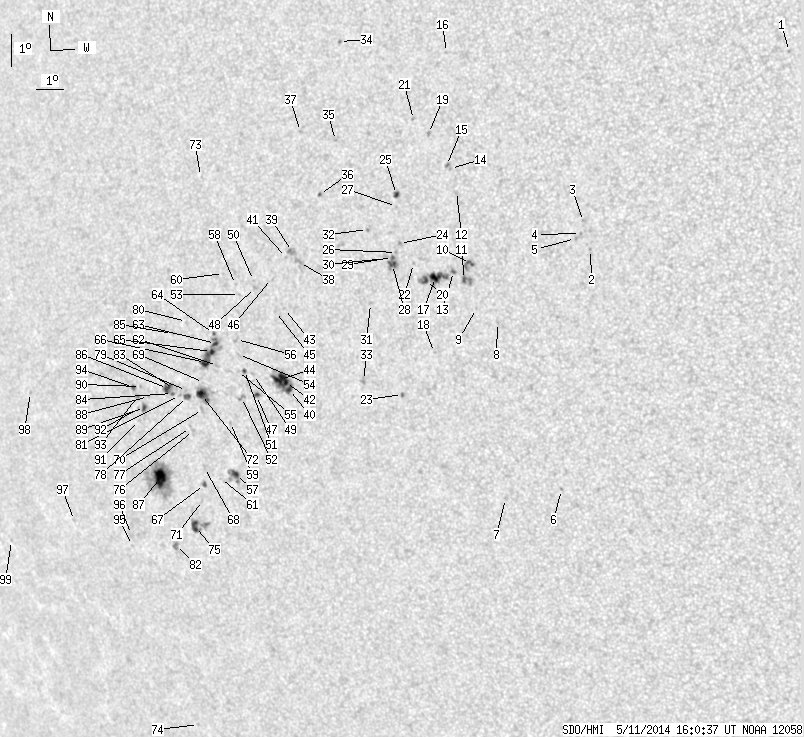

back to the solar disc SDO HMI 2014-05-11 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.38 | -4.86 | 247.31 | -19.52 | 95.91 | 0.3361 | 789.0 | 672.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -10.73 | 240.33 | -26.49 | 107.59 | 0.4616 | 849.0 | 710.7 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -9.87 | 240.17 | -26.65 | 105.69 | 0.4609 | 655.0 | 556.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -10.24 | 240.03 | -26.79 | 106.40 | 0.4642 | 751.0 | 583.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -10.39 | 239.85 | -26.97 | 106.62 | 0.4675 | 747.0 | 585.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.11 | 238.30 | -28.52 | 120.36 | 0.5280 | 750.0 | 612.8 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -18.34 | 236.20 | -30.62 | 119.23 | 0.5561 | 699.0 | 547.1 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -12.88 | 236.82 | -30.00 | 110.01 | 0.5208 | 609.0 | 409.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -12.43 | 236.12 | -30.70 | 108.84 | 0.5289 | 598.0 | 469.8 | |
| 1.61 | 7.08 | 0.94 | 4.12 | -11.05 | 236.08 | -30.74 | 106.26 | 0.5247 | 978.3 | 877.6 | |
| 1.16 | 8.42 | 0.68 | 4.91 | -11.53 | 235.80 | -31.02 | 107.04 | 0.5302 | 876.2 | 764.5 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -8.84 | 235.81 | -31.01 | 102.00 | 0.5225 | 246.0 | 381.5 | |
| 0.54 | 2.96 | 0.31 | 1.73 | -11.28 | 235.44 | -31.38 | 106.42 | 0.5345 | 900.5 | 690.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -8.14 | 235.66 | -31.16 | 100.62 | 0.5232 | 678.0 | 572.8 | |
| 0.00 | 1.88 | 0.00 | 1.09 | -8.04 | 235.53 | -31.30 | 100.41 | 0.5250 | 884.0 | 763.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -4.62 | 235.76 | -31.06 | 93.87 | 0.5175 | 458.0 | 419.0 | |
| 6.27 | 22.04 | 3.70 | 13.01 | -11.44 | 234.76 | -32.06 | 106.46 | 0.5446 | 940.0 | 662.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -13.74 | 234.40 | -32.43 | 110.36 | 0.5577 | 911.0 | 715.0 | |
| 0.00 | 2.06 | 0.00 | 1.20 | -7.06 | 234.96 | -31.86 | 98.42 | 0.5316 | 769.0 | 620.9 | |
| 2.06 | -17.00 | 1.22 | -17.00 | -11.52 | 234.38 | -32.44 | 106.46 | 0.5501 | 698.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -6.62 | 234.45 | -32.37 | 97.52 | 0.5385 | 460.0 | 547.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -10.99 | 234.01 | -32.81 | 105.38 | 0.5538 | 563.0 | 450.2 | |
| 0.00 | 1.52 | 0.00 | 0.93 | -15.00 | 232.99 | -33.84 | 111.84 | 0.5816 | 751.0 | 625.0 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -10.37 | 233.58 | -33.25 | 104.12 | 0.5582 | 743.0 | 567.9 | |
| 1.97 | 3.40 | 1.17 | 2.02 | -8.87 | 233.63 | -33.19 | 101.48 | 0.5540 | -613.6 | -464.9 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -10.64 | 233.43 | -33.39 | 104.56 | 0.5610 | 715.0 | 610.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -9.24 | 233.60 | -33.23 | 102.12 | 0.5553 | 641.0 | 422.9 | |
| 3.49 | 8.42 | 2.09 | 5.05 | -11.00 | 233.24 | -33.58 | 105.13 | 0.5647 | 794.4 | 604.9 | |
| 0.54 | -28.00 | 0.32 | -28.00 | -10.79 | 233.26 | -33.56 | 104.76 | 0.5637 | 812.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -10.81 | 233.00 | -33.82 | 104.72 | 0.5674 | -62.0 | -72.3 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -12.17 | 232.25 | -34.57 | 106.79 | 0.5816 | 77.0 | 115.6 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -9.91 | 232.44 | -34.38 | 102.99 | 0.5730 | 755.0 | 669.4 | |
| 0.00 | 3.14 | 0.00 | 1.93 | -14.52 | 231.59 | -35.23 | 110.44 | 0.5982 | 685.0 | 532.9 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -4.17 | 231.90 | -34.92 | 92.90 | 0.5738 | 721.0 | 601.3 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -7.16 | 231.54 | -35.28 | 98.07 | 0.5810 | -829.0 | -683.4 | |
| 0.45 | 1.52 | 0.28 | 0.94 | -8.78 | 230.77 | -36.05 | 100.69 | 0.5941 | 672.2 | 606.8 | |
| 0.00 | 1.52 | 0.00 | 0.94 | -6.85 | 230.25 | -36.57 | 97.36 | 0.5987 | 475.0 | 360.7 | |
| 0.00 | 6.18 | 0.00 | 3.87 | -10.83 | 229.74 | -37.08 | 103.82 | 0.6121 | -752.0 | -670.6 | |
| 0.00 | 6.27 | 0.00 | 3.93 | -10.48 | 229.52 | -37.31 | 103.21 | 0.6144 | -687.0 | -632.7 | |
| 3.40 | 31.72 | 2.18 | 20.38 | -14.71 | 228.66 | -38.16 | 109.60 | 0.6367 | 759.0 | 396.0 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -10.66 | 229.26 | -37.56 | 103.43 | 0.6182 | -436.0 | -361.8 | |
| 4.12 | -40.00 | 2.64 | -40.00 | -14.49 | 228.54 | -38.28 | 109.22 | 0.6375 | 990.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -12.21 | 228.93 | -37.89 | 105.81 | 0.6261 | -640.0 | -560.4 | |
| 10.39 | -40.00 | 6.68 | -40.00 | -14.39 | 228.32 | -38.50 | 108.99 | 0.6400 | 750.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -12.29 | 228.56 | -38.26 | 105.83 | 0.6311 | -580.0 | -574.3 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -11.28 | 228.57 | -38.25 | 104.25 | 0.6286 | -492.0 | -531.4 | |
| 1.70 | 3.14 | 1.11 | 2.05 | -14.85 | 227.30 | -39.53 | 109.35 | 0.6543 | 542.9 | 367.4 | |
| 0.00 | 2.06 | 0.00 | 1.32 | -11.53 | 227.90 | -38.92 | 104.47 | 0.6380 | -647.0 | -551.5 | |
| 0.00 | 1.70 | 0.00 | 1.11 | -14.20 | 227.31 | -39.51 | 108.38 | 0.6522 | 356.0 | 174.4 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -11.32 | 227.85 | -38.97 | 104.13 | 0.6381 | -605.0 | -536.6 | |
| 0.90 | 1.88 | 0.59 | 1.23 | -14.06 | 226.98 | -39.84 | 108.07 | 0.6560 | 382.0 | 322.5 | |
| 0.00 | 3.23 | 0.00 | 2.13 | -14.89 | 226.67 | -40.15 | 109.21 | 0.6621 | 472.0 | 392.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -11.73 | 227.22 | -39.60 | 104.60 | 0.6472 | -571.0 | -514.5 | |
| 0.00 | 1.61 | 0.00 | 1.06 | -13.56 | 226.84 | -39.98 | 107.28 | 0.6565 | -209.0 | -173.8 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -14.08 | 226.69 | -40.13 | 108.01 | 0.6597 | -224.0 | -178.8 | |
| 0.00 | 2.69 | 0.00 | 1.76 | -13.10 | 226.85 | -39.97 | 106.59 | 0.6552 | -774.0 | -557.2 | |
| 3.49 | 11.02 | 2.35 | 7.43 | -17.26 | 225.83 | -40.99 | 112.37 | 0.6797 | 781.7 | 487.8 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -11.42 | 227.12 | -39.70 | 104.10 | 0.6479 | -629.0 | -471.0 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -15.64 | 226.04 | -40.78 | 110.11 | 0.6721 | -641.0 | -570.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.06 | 226.69 | -40.13 | 103.47 | 0.6527 | -333.0 | -430.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -17.37 | 225.17 | -41.66 | 112.28 | 0.6878 | 413.0 | 333.0 | |
| 0.00 | 2.60 | 0.00 | 1.73 | -13.87 | 225.91 | -40.91 | 107.47 | 0.6689 | -158.0 | -163.0 | |
| 1.88 | 33.24 | 1.25 | 22.13 | -13.19 | 225.97 | -40.85 | 106.49 | 0.6665 | -981.5 | -366.3 | |
| 0.54 | -63.00 | 0.36 | -63.00 | -12.88 | 225.95 | -40.87 | 106.02 | 0.6660 | -635.2 | 999999 | |
| 2.15 | -63.00 | 1.43 | -63.00 | -13.43 | 225.75 | -41.07 | 106.78 | 0.6697 | -735.1 | 999999 | |
| 4.48 | -63.00 | 3.00 | -63.00 | -13.76 | 225.43 | -41.39 | 107.18 | 0.6745 | 626.7 | 999999 | |
| 1.16 | 2.42 | 0.80 | 1.67 | -17.53 | 224.43 | -42.39 | 112.26 | 0.6969 | 560.6 | 379.7 | |
| 0.00 | 1.61 | 0.00 | 1.11 | -17.00 | 224.58 | -42.24 | 111.57 | 0.6935 | 204.0 | 157.5 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -14.37 | 225.21 | -41.61 | 108.01 | 0.6787 | -311.0 | -277.4 | |
| 0.00 | 2.87 | 0.00 | 1.94 | -15.20 | 224.97 | -41.85 | 109.14 | 0.6838 | -608.0 | -495.2 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -18.02 | 224.20 | -42.62 | 112.87 | 0.7011 | -146.0 | -138.1 | |
| 5.91 | 20.25 | 3.99 | 13.65 | -14.74 | 225.04 | -41.78 | 108.49 | 0.6817 | -964.9 | -586.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -8.08 | 226.20 | -40.63 | 98.83 | 0.6547 | -429.0 | -463.2 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -25.13 | 221.27 | -45.55 | 121.11 | 0.7572 | 536.0 | 446.4 | |
| 5.20 | 15.77 | 3.65 | 11.03 | -18.83 | 223.64 | -43.18 | 113.77 | 0.7100 | -784.8 | -689.7 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -15.84 | 224.43 | -42.39 | 109.88 | 0.6920 | -565.0 | -469.1 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -15.74 | 224.33 | -42.49 | 109.71 | 0.6930 | -599.0 | -470.9 | |
| 2.42 | 4.30 | 1.65 | 2.93 | -14.78 | 224.44 | -42.38 | 108.38 | 0.6891 | -874.3 | -667.7 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -14.59 | 224.44 | -42.38 | 108.11 | 0.6886 | -586.0 | -423.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -12.48 | 224.91 | -41.91 | 105.17 | 0.6781 | -348.0 | -309.2 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -14.74 | 224.11 | -42.71 | 108.23 | 0.6929 | -823.0 | -661.3 | |
| 0.00 | 3.49 | 0.00 | 2.50 | -19.39 | 222.56 | -44.26 | 114.16 | 0.7238 | -850.0 | -668.2 | |
| 0.00 | 2.42 | 0.00 | 1.66 | -14.51 | 223.91 | -42.91 | 107.85 | 0.6948 | -477.0 | -481.5 | |
| 0.63 | 9.14 | 0.43 | 6.30 | -14.66 | 223.83 | -42.99 | 108.05 | 0.6961 | -848.0 | -688.9 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -12.82 | 224.25 | -42.57 | 105.52 | 0.6869 | -671.0 | -489.7 | |
| 4.12 | -84.00 | 2.84 | -84.00 | -14.50 | 223.65 | -43.17 | 107.77 | 0.6978 | -869.8 | 999999 | |
| 15.05 | 75.89 | 10.67 | 53.84 | -17.24 | 222.59 | -44.23 | 111.27 | 0.7172 | 988.0 | 223.6 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -14.72 | 222.77 | -44.05 | 107.85 | 0.7087 | -545.0 | -505.6 | |
| 1.97 | 3.49 | 1.39 | 2.46 | -15.05 | 222.51 | -44.31 | 108.24 | 0.7126 | -810.2 | -662.0 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -14.40 | 222.51 | -44.32 | 107.34 | 0.7112 | -724.0 | -621.2 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -15.44 | 222.19 | -44.64 | 108.70 | 0.7173 | -516.0 | -400.6 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -15.07 | 222.24 | -44.58 | 108.20 | 0.7158 | -446.0 | -403.5 | |
| 0.36 | 1.97 | 0.25 | 1.39 | -14.70 | 222.30 | -44.53 | 107.70 | 0.7143 | -678.0 | -506.3 | |
| 1.08 | 2.51 | 0.76 | 1.77 | -14.42 | 222.19 | -44.63 | 107.29 | 0.7149 | -609.9 | -459.1 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -19.32 | 220.62 | -46.20 | 113.44 | 0.7447 | -527.0 | -471.1 | |
| 0.00 | 2.33 | 0.00 | 1.72 | -18.97 | 220.70 | -46.12 | 113.01 | 0.7429 | -510.0 | -404.9 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -18.43 | 218.20 | -48.62 | 111.62 | 0.7680 | -555.0 | -418.0 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -14.39 | 217.46 | -49.36 | 106.26 | 0.7680 | -345.0 | -308.9 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -18.93 | 214.83 | -51.99 | 111.44 | 0.8030 | -435.0 | -325.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
