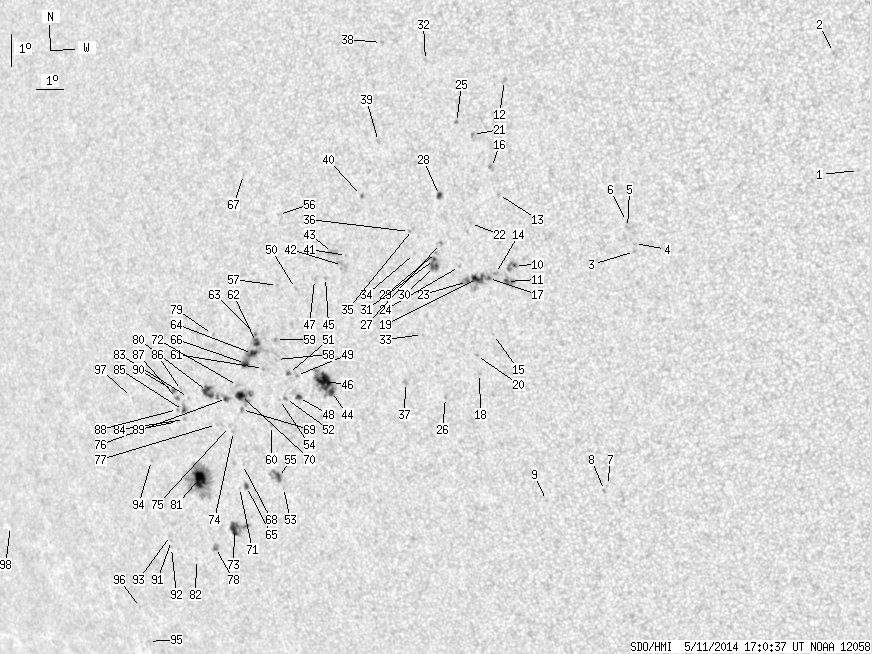

SDO HMI 2014-05-11 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.77 | 381.38 | 64.09 | 248.54 | -14.39 | 227.15 | -39.11 | 108.63 | 0.6453 | 134.2 | 34.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.47 | -8.44 | 247.96 | -18.31 | 107.22 | 0.3268 | 714.0 | 565.7 | |
| 0.00 | 1.43 | 0.00 | 0.75 | -4.84 | 247.30 | -18.97 | 95.98 | 0.3271 | 849.0 | 594.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -10.75 | 240.36 | -25.91 | 107.94 | 0.4530 | 840.0 | 646.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -10.50 | 240.38 | -25.88 | 107.43 | 0.4517 | 820.0 | 710.6 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -10.01 | 240.19 | -26.08 | 106.26 | 0.4528 | 838.0 | 642.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.83 | 240.17 | -26.10 | 105.86 | 0.4524 | 678.0 | 547.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -17.94 | 238.47 | -27.80 | 120.62 | 0.5177 | 466.0 | 517.6 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -18.10 | 238.33 | -27.94 | 120.78 | 0.5204 | 683.0 | 556.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -18.35 | 236.17 | -30.10 | 119.61 | 0.5496 | 701.0 | 570.9 | |
| 0.72 | 6.09 | 0.41 | 3.52 | -11.07 | 236.13 | -30.14 | 106.54 | 0.5160 | 1037.5 | 865.4 | |
| 1.52 | 8.42 | 0.88 | 4.88 | -11.55 | 235.79 | -30.48 | 107.30 | 0.5226 | 856.7 | 784.1 | |
| 0.00 | 2.51 | 0.00 | 1.44 | -5.44 | 236.26 | -30.01 | 95.57 | 0.5022 | 823.0 | 660.9 | |
| 0.00 | 1.52 | 0.00 | 0.88 | -8.89 | 235.79 | -30.48 | 102.25 | 0.5148 | 731.0 | 547.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -11.29 | 235.42 | -30.85 | 106.67 | 0.5269 | 947.0 | 828.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -13.16 | 235.10 | -31.16 | 109.94 | 0.5381 | 605.0 | 535.0 | |
| 0.00 | 3.32 | 0.00 | 1.91 | -8.06 | 235.61 | -30.65 | 100.60 | 0.5156 | 777.0 | 698.6 | |
| 0.72 | 24.19 | 0.42 | 14.20 | -11.44 | 235.15 | -31.12 | 106.83 | 0.5312 | 967.0 | 551.9 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -14.34 | 234.41 | -31.86 | 111.69 | 0.5524 | 597.0 | 488.9 | |
| 6.18 | -17.00 | 3.62 | -17.00 | -11.43 | 234.76 | -31.51 | 106.65 | 0.5368 | 1003.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -13.79 | 234.39 | -31.88 | 110.71 | 0.5505 | 882.0 | 631.6 | |
| 0.00 | 1.61 | 0.00 | 0.94 | -7.04 | 235.02 | -31.25 | 98.51 | 0.5226 | 749.0 | 635.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -9.74 | 234.70 | -31.57 | 103.52 | 0.5328 | 647.0 | 501.8 | |
| 0.99 | -17.00 | 0.58 | -17.00 | -11.51 | 234.38 | -31.89 | 106.64 | 0.5424 | 791.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -11.04 | 234.15 | -32.12 | 105.71 | 0.5442 | 534.0 | 360.1 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -6.66 | 234.47 | -31.79 | 97.70 | 0.5301 | 610.0 | 489.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -15.05 | 233.03 | -33.24 | 112.20 | 0.5739 | 794.0 | 615.9 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -10.32 | 233.54 | -32.73 | 104.21 | 0.5508 | 727.0 | 626.1 | |
| 2.06 | 3.32 | 1.22 | 1.96 | -8.86 | 233.67 | -32.60 | 101.60 | 0.5456 | -679.5 | -412.9 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -10.59 | 233.36 | -32.91 | 104.63 | 0.5540 | 711.0 | 605.9 | |
| 3.76 | 11.11 | 2.24 | 6.62 | -11.02 | 233.24 | -33.03 | 105.34 | 0.5570 | 758.3 | 443.0 | |
| 0.90 | -30.00 | 0.53 | -30.00 | -10.80 | 233.26 | -33.01 | 104.97 | 0.5560 | 707.3 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -4.75 | 233.48 | -32.79 | 94.02 | 0.5431 | 673.0 | 535.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -13.08 | 232.49 | -33.77 | 108.65 | 0.5737 | 466.0 | 374.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -10.60 | 232.55 | -33.72 | 104.38 | 0.5655 | -668.0 | -542.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -9.86 | 232.57 | -33.70 | 103.10 | 0.5634 | 694.0 | 591.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -9.92 | 232.45 | -33.82 | 103.17 | 0.5652 | 737.0 | 594.7 | |
| 0.00 | 2.24 | 0.00 | 1.37 | -14.54 | 231.61 | -34.66 | 110.71 | 0.5908 | 684.0 | 550.5 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -4.16 | 231.90 | -34.36 | 92.89 | 0.5658 | 713.0 | 640.3 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -7.15 | 231.58 | -34.68 | 98.14 | 0.5725 | -859.0 | -626.5 | |
| 0.36 | 1.70 | 0.22 | 1.04 | -8.77 | 230.79 | -35.48 | 100.78 | 0.5862 | 743.8 | 614.6 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -10.58 | 229.99 | -36.28 | 103.62 | 0.6007 | -581.0 | -507.8 | |
| 0.00 | 9.68 | 0.00 | 6.00 | -10.88 | 229.79 | -36.47 | 104.06 | 0.6040 | -661.0 | -633.3 | |
| 0.00 | 6.36 | 0.00 | 3.96 | -10.47 | 229.47 | -36.80 | 103.31 | 0.6076 | -718.0 | -611.6 | |
| 3.49 | 36.47 | 2.22 | 23.24 | -14.73 | 228.70 | -37.57 | 109.85 | 0.6292 | 753.7 | 335.3 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -11.22 | 229.09 | -37.18 | 104.43 | 0.6144 | -582.0 | -493.9 | |
| 16.49 | -44.00 | 10.51 | -44.00 | -14.41 | 228.44 | -37.83 | 109.26 | 0.6314 | 833.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -11.27 | 228.65 | -37.62 | 104.39 | 0.6203 | -688.0 | -599.6 | |
| 2.15 | 6.36 | 1.39 | 4.12 | -14.87 | 227.35 | -38.92 | 109.58 | 0.6468 | 474.5 | -88.4 | |
| 0.00 | 1.88 | 0.00 | 1.22 | -14.19 | 227.41 | -38.86 | 108.57 | 0.6440 | 566.0 | 393.2 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -11.52 | 227.86 | -38.41 | 104.59 | 0.6312 | -648.0 | -532.6 | |
| 0.99 | 1.97 | 0.64 | 1.28 | -14.12 | 227.10 | -39.17 | 108.36 | 0.6476 | 584.5 | 417.2 | |
| 0.00 | 1.97 | 0.00 | 1.29 | -14.88 | 226.82 | -39.45 | 109.42 | 0.6535 | 634.0 | 551.1 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -17.64 | 226.06 | -40.21 | 113.19 | 0.6717 | 620.0 | 454.1 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -14.90 | 226.57 | -39.70 | 109.37 | 0.6566 | 161.0 | 139.4 | |
| 3.23 | 9.77 | 2.15 | 6.52 | -17.32 | 225.93 | -40.33 | 112.69 | 0.6720 | 818.8 | 554.6 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -9.24 | 227.53 | -38.74 | 100.93 | 0.6313 | 602.0 | 461.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -11.41 | 227.17 | -39.10 | 104.23 | 0.6401 | -615.0 | -512.0 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -13.67 | 226.71 | -39.56 | 107.57 | 0.6514 | -112.0 | -112.7 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -13.05 | 226.79 | -39.48 | 106.66 | 0.6488 | -899.0 | -847.5 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -15.70 | 226.05 | -40.21 | 110.37 | 0.6653 | -611.0 | -524.7 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -13.93 | 226.13 | -40.14 | 107.78 | 0.6594 | 245.0 | 279.0 | |
| 3.58 | 32.44 | 2.35 | 21.39 | -13.12 | 226.01 | -40.26 | 106.54 | 0.6589 | -959.0 | -323.7 | |
| 0.36 | -62.00 | 0.24 | -62.00 | -12.87 | 226.01 | -40.25 | 106.17 | 0.6582 | -658.5 | 999999 | |
| 4.93 | -62.00 | 3.25 | -62.00 | -13.45 | 225.77 | -40.49 | 106.97 | 0.6626 | -625.1 | 999999 | |
| 1.52 | 3.05 | 1.04 | 2.08 | -17.55 | 224.52 | -41.75 | 112.51 | 0.6895 | 561.1 | 410.5 | |
| 3.49 | -62.00 | 2.32 | -62.00 | -13.75 | 225.42 | -40.85 | 107.31 | 0.6677 | 554.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -7.98 | 226.30 | -39.97 | 98.77 | 0.6459 | -641.0 | -512.1 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -16.86 | 224.54 | -41.73 | 111.54 | 0.6871 | 422.0 | 370.2 | |
| 0.54 | 1.79 | 0.36 | 1.20 | -15.16 | 224.94 | -41.33 | 109.23 | 0.6774 | -714.7 | -601.1 | |
| 5.47 | 18.64 | 3.66 | 12.46 | -14.73 | 225.00 | -41.27 | 108.62 | 0.6755 | -955.9 | -597.3 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -17.57 | 224.21 | -42.06 | 112.43 | 0.6932 | 253.0 | 246.0 | |
| 0.00 | 2.06 | 0.00 | 1.38 | -14.41 | 224.94 | -41.32 | 108.15 | 0.6753 | -468.0 | -408.2 | |
| 7.26 | 17.65 | 5.05 | 12.25 | -18.84 | 223.61 | -42.66 | 113.98 | 0.7042 | -804.6 | -675.8 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -15.83 | 224.43 | -41.84 | 110.03 | 0.6853 | -623.0 | -524.3 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -15.67 | 224.30 | -41.96 | 109.77 | 0.6864 | -638.0 | -566.5 | |
| 1.70 | 5.91 | 1.15 | 4.01 | -14.80 | 224.39 | -41.88 | 108.55 | 0.6830 | -916.9 | -669.4 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -15.58 | 223.77 | -42.50 | 109.49 | 0.6926 | -449.0 | -425.7 | |
| 0.00 | 3.76 | 0.00 | 2.67 | -19.41 | 222.59 | -43.68 | 114.39 | 0.7175 | -783.0 | -659.0 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -12.81 | 224.25 | -42.02 | 105.64 | 0.6801 | -639.0 | -486.5 | |
| 8.15 | 11.65 | 5.57 | 7.96 | -14.55 | 223.64 | -42.62 | 107.99 | 0.6914 | -853.8 | -620.8 | |
| 14.52 | 68.46 | 10.19 | 48.10 | -17.23 | 222.57 | -43.69 | 111.42 | 0.7111 | 1009.0 | 281.1 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -19.75 | 221.61 | -44.66 | 114.52 | 0.7294 | -346.0 | -334.3 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -14.71 | 222.79 | -43.48 | 107.98 | 0.7020 | -586.0 | -443.2 | |
| 0.00 | 1.43 | 0.00 | 1.00 | -15.38 | 222.44 | -43.83 | 108.83 | 0.7077 | -598.0 | -520.2 | |
| 1.16 | 4.66 | 0.81 | 3.25 | -15.10 | 222.47 | -43.80 | 108.45 | 0.7067 | -820.4 | -627.4 | |
| 0.00 | 1.25 | 0.00 | 0.87 | -14.48 | 222.54 | -43.73 | 107.60 | 0.7044 | -603.0 | -518.8 | |
| 0.63 | 2.51 | 0.44 | 1.75 | -14.72 | 222.31 | -43.96 | 107.88 | 0.7077 | -669.6 | -490.0 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -15.06 | 222.22 | -44.05 | 108.32 | 0.7096 | -482.0 | -403.9 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -15.43 | 222.12 | -44.15 | 108.81 | 0.7116 | -529.0 | -402.6 | |
| 0.90 | 2.24 | 0.63 | 1.57 | -14.47 | 222.20 | -44.07 | 107.50 | 0.7085 | -665.2 | -468.7 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -19.12 | 220.70 | -45.57 | 113.38 | 0.7374 | -565.0 | -443.6 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -19.34 | 220.62 | -45.65 | 113.64 | 0.7389 | -573.0 | -484.8 | |
| 0.00 | 1.88 | 0.00 | 1.37 | -18.96 | 220.71 | -45.56 | 113.17 | 0.7368 | -452.0 | -369.2 | |
| 0.00 | 1.43 | 0.00 | 1.04 | -16.59 | 220.62 | -45.64 | 109.99 | 0.7315 | -561.0 | -353.4 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -22.26 | 218.33 | -47.94 | 116.67 | 0.7712 | -554.0 | -419.8 | |
| 0.00 | 1.34 | 0.00 | 1.03 | -21.17 | 218.43 | -47.84 | 115.32 | 0.7670 | -462.0 | -349.3 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -14.61 | 220.29 | -45.98 | 107.25 | 0.7308 | -498.0 | -478.4 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -18.37 | 213.04 | -53.23 | 110.50 | 0.8138 | -416.0 | -337.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
