SDO HMI 2014-05-11 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.57 | 399.65 | 64.11 | 258.52 | -14.57 | 227.14 | -38.58 | 109.10 | 0.6392 | 129.6 | 100.0 | |
|
previous
or next observation for the same group /

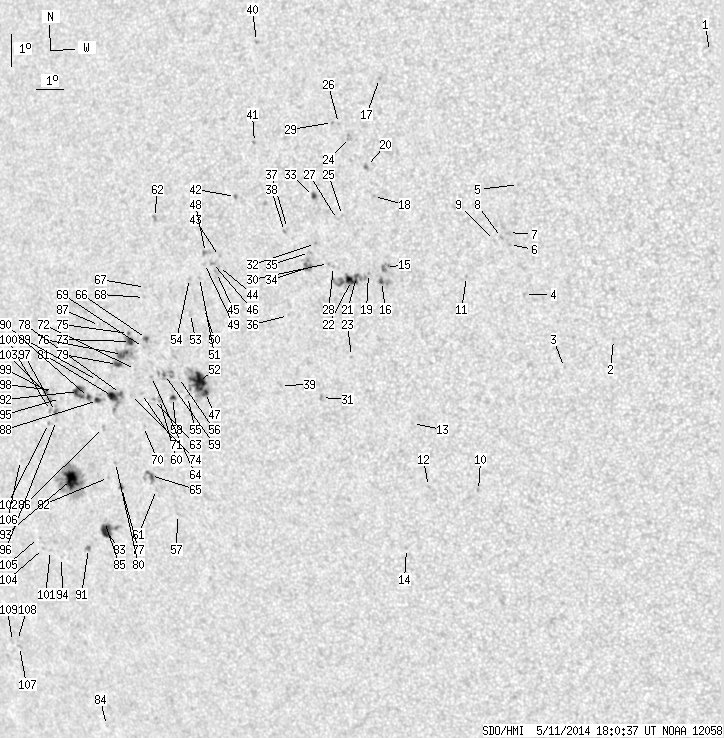

back to the solar disc SDO HMI 2014-05-11 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.23 | -4.79 | 247.29 | -18.42 | 95.96 | 0.3180 | 710.0 | 542.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -13.50 | 243.61 | -22.10 | 116.83 | 0.4117 | 636.0 | 577.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.33 | 241.86 | -23.85 | 117.02 | 0.4416 | 645.0 | 499.0 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -12.05 | 240.74 | -24.97 | 111.33 | 0.4450 | 777.0 | 547.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -8.70 | 240.83 | -24.88 | 103.92 | 0.4303 | 737.0 | 616.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -10.52 | 240.38 | -25.34 | 107.76 | 0.4436 | 828.0 | 711.4 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -10.15 | 240.38 | -25.34 | 106.95 | 0.4422 | 754.0 | 635.5 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -10.30 | 240.12 | -25.59 | 107.14 | 0.4465 | 813.0 | 646.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -10.38 | 239.88 | -25.84 | 107.19 | 0.4506 | 714.0 | 542.2 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -18.08 | 238.32 | -27.39 | 121.19 | 0.5133 | 716.0 | 609.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -11.46 | 238.81 | -26.91 | 108.88 | 0.4706 | 729.0 | 628.1 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -17.91 | 236.54 | -29.17 | 119.52 | 0.5351 | 613.0 | 502.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -15.93 | 236.30 | -29.41 | 115.90 | 0.5270 | 573.0 | 473.2 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -19.83 | 235.35 | -30.36 | 121.85 | 0.5619 | 477.0 | 399.8 | |
| 0.00 | 6.09 | 0.00 | 3.50 | -11.11 | 236.00 | -29.71 | 106.80 | 0.5101 | 717.0 | 863.2 | |
| 1.16 | 6.00 | 0.67 | 3.46 | -11.53 | 235.81 | -29.90 | 107.52 | 0.5143 | 920.2 | 831.2 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -5.36 | 236.27 | -29.44 | 95.48 | 0.4936 | 836.0 | 639.6 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -8.93 | 235.80 | -29.91 | 102.51 | 0.5066 | 823.0 | 599.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -11.27 | 235.38 | -30.34 | 106.85 | 0.5196 | 887.0 | 727.2 | |
| 0.00 | 2.78 | 0.00 | 1.59 | -8.02 | 235.63 | -30.08 | 100.66 | 0.5071 | 886.0 | 750.9 | |
| 1.08 | 27.96 | 0.63 | 16.32 | -11.35 | 234.94 | -30.78 | 106.81 | 0.5262 | 964.4 | 626.6 | |
| 5.82 | -21.00 | 3.40 | -21.00 | -11.47 | 234.74 | -30.97 | 106.95 | 0.5293 | 976.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -13.80 | 234.42 | -31.29 | 111.02 | 0.5425 | 597.0 | 575.1 | |
| 0.00 | 3.67 | 0.00 | 2.12 | -7.12 | 235.10 | -30.61 | 98.79 | 0.5133 | 760.0 | 637.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -9.48 | 234.64 | -31.07 | 103.19 | 0.5249 | 622.0 | 503.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -6.68 | 234.74 | -30.97 | 97.88 | 0.5180 | 696.0 | 507.6 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -9.60 | 234.45 | -31.26 | 103.35 | 0.5280 | 579.0 | 508.0 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -11.03 | 234.14 | -31.57 | 105.89 | 0.5364 | 624.0 | 438.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -6.65 | 234.53 | -31.18 | 97.77 | 0.5211 | 656.0 | 529.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -10.93 | 233.98 | -31.74 | 105.65 | 0.5385 | 639.0 | 509.1 | |
| 0.00 | 1.88 | 0.00 | 1.13 | -15.03 | 233.11 | -32.60 | 112.50 | 0.5654 | 865.0 | 626.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -10.31 | 233.58 | -32.14 | 104.37 | 0.5424 | 804.0 | 698.6 | |
| 1.70 | 3.32 | 1.00 | 1.94 | -8.87 | 233.66 | -32.06 | 101.77 | 0.5377 | -751.7 | -429.2 | |
| 0.54 | 9.05 | 0.32 | 5.36 | -11.00 | 233.31 | -32.40 | 105.54 | 0.5481 | 771.3 | 626.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -10.57 | 233.33 | -32.39 | 104.78 | 0.5467 | 690.0 | 583.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -12.48 | 232.30 | -33.42 | 107.75 | 0.5668 | 527.0 | 403.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -9.82 | 232.61 | -33.11 | 103.20 | 0.5549 | 505.0 | 641.0 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -9.91 | 232.49 | -33.23 | 103.32 | 0.5568 | 724.0 | 602.3 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -14.62 | 231.65 | -34.07 | 111.10 | 0.5832 | 758.0 | 642.0 | |
| 0.00 | 1.79 | 0.00 | 1.07 | -4.11 | 231.94 | -33.77 | 92.82 | 0.5573 | 724.0 | 594.6 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.17 | 231.66 | -34.05 | 98.27 | 0.5636 | -668.0 | -652.3 | |
| 0.00 | 1.97 | 0.00 | 1.19 | -8.79 | 230.80 | -34.92 | 100.93 | 0.5783 | 811.0 | 651.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -10.59 | 229.97 | -35.74 | 103.79 | 0.5935 | -712.0 | -559.2 | |
| 0.00 | 1.43 | 0.00 | 0.88 | -10.90 | 229.89 | -35.82 | 104.28 | 0.5953 | -796.0 | -616.2 | |
| 0.00 | 2.06 | 0.00 | 1.27 | -11.08 | 229.79 | -35.93 | 104.55 | 0.5971 | -773.0 | -680.0 | |
| 0.00 | 1.61 | 0.00 | 0.99 | -10.77 | 229.68 | -36.04 | 104.00 | 0.5978 | -693.0 | -724.1 | |
| 2.87 | 44.53 | 1.81 | 28.17 | -14.74 | 228.73 | -36.98 | 110.10 | 0.6217 | 734.1 | 264.9 | |
| 0.00 | 3.85 | 0.00 | 2.38 | -10.46 | 229.45 | -36.26 | 103.43 | 0.6002 | -652.0 | -610.7 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -10.79 | 229.37 | -36.34 | 103.95 | 0.6021 | -534.0 | -490.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -12.16 | 229.16 | -36.55 | 106.14 | 0.6083 | -517.0 | -458.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -11.21 | 229.12 | -36.60 | 104.57 | 0.6065 | -525.0 | -483.9 | |
| 17.92 | -47.00 | 11.33 | -47.00 | -14.40 | 228.53 | -37.19 | 109.48 | 0.6232 | 874.7 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.24 | -12.30 | 228.60 | -37.12 | 106.18 | 0.6162 | -502.0 | -460.1 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -11.23 | 228.73 | -36.99 | 104.50 | 0.6118 | -742.0 | -600.9 | |
| 0.00 | 1.97 | 0.00 | 1.26 | -14.84 | 228.00 | -37.71 | 109.98 | 0.6314 | 580.0 | 424.5 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -14.25 | 227.77 | -37.95 | 108.97 | 0.6325 | 480.0 | 359.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -18.49 | 226.72 | -38.99 | 114.93 | 0.6603 | 702.0 | 641.4 | |
| 1.79 | 3.05 | 1.15 | 1.96 | -14.86 | 227.40 | -38.31 | 109.78 | 0.6391 | 489.2 | 288.2 | |
| 0.63 | 11.92 | 0.40 | 7.65 | -14.14 | 227.23 | -38.48 | 108.62 | 0.6391 | 526.1 | 289.0 | |
| 0.00 | 2.60 | 0.00 | 1.68 | -14.90 | 226.87 | -38.85 | 109.66 | 0.6459 | 578.0 | 524.5 | |
| 0.00 | 1.52 | 0.00 | 1.01 | -17.69 | 226.07 | -39.64 | 113.49 | 0.6650 | 503.0 | 424.6 | |
| 0.00 | 2.33 | 0.00 | 1.47 | -9.33 | 227.63 | -38.08 | 101.18 | 0.6226 | 644.0 | 474.5 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -14.89 | 226.63 | -39.09 | 109.57 | 0.6489 | 468.0 | 300.9 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -14.18 | 226.70 | -39.02 | 108.51 | 0.6459 | 293.0 | 154.2 | |
| 2.96 | 8.96 | 1.96 | 5.93 | -17.24 | 225.94 | -39.77 | 112.79 | 0.6650 | 794.4 | 542.5 | |
| 1.34 | 2.78 | 0.87 | 1.79 | -13.01 | 226.73 | -38.98 | 106.73 | 0.6423 | -915.5 | -780.7 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -11.45 | 226.97 | -38.75 | 104.38 | 0.6356 | -489.0 | -424.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -11.75 | 226.88 | -38.84 | 104.83 | 0.6374 | -141.0 | -165.0 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -13.28 | 226.56 | -39.16 | 107.10 | 0.6453 | -683.0 | -613.2 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -15.71 | 226.03 | -39.68 | 110.58 | 0.6588 | -604.0 | -546.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -14.69 | 226.18 | -39.53 | 109.12 | 0.6539 | -286.0 | -239.8 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -13.94 | 226.10 | -39.61 | 107.97 | 0.6528 | 453.0 | 329.0 | |
| 3.40 | 6.27 | 2.22 | 4.09 | -13.08 | 226.07 | -39.64 | 106.65 | 0.6509 | -948.4 | -695.0 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -14.74 | 225.73 | -39.99 | 109.04 | 0.6597 | -800.0 | -605.1 | |
| 0.36 | 0.99 | 0.23 | 0.64 | -12.83 | 226.04 | -39.67 | 106.27 | 0.6507 | -509.8 | -567.4 | |
| 5.20 | 21.24 | 3.41 | 13.91 | -13.47 | 225.67 | -40.04 | 107.12 | 0.6570 | -314.1 | -437.1 | |
| 1.16 | 2.78 | 0.79 | 1.88 | -17.57 | 224.64 | -41.07 | 112.78 | 0.6817 | 548.5 | 409.7 | |
| 0.99 | 18.19 | 0.65 | 12.07 | -14.66 | 225.33 | -40.38 | 108.80 | 0.6644 | -237.0 | -706.6 | |
| 2.96 | -76.00 | 1.95 | -76.00 | -13.77 | 225.40 | -40.31 | 107.49 | 0.6611 | 530.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.97 | -16.79 | 224.60 | -41.11 | 111.65 | 0.6796 | 316.0 | 348.8 | |
| 6.36 | -78.00 | 4.23 | -78.00 | -14.74 | 224.98 | -40.73 | 108.81 | 0.6689 | -976.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -17.24 | 224.18 | -41.53 | 112.15 | 0.6860 | -475.0 | -449.9 | |
| 9.86 | 16.67 | 6.80 | 11.48 | -18.89 | 223.61 | -42.11 | 114.26 | 0.6981 | -880.2 | -694.4 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -25.10 | 221.22 | -44.49 | 121.51 | 0.7467 | 514.0 | 443.6 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -18.61 | 223.61 | -42.10 | 113.86 | 0.6971 | -407.0 | -443.2 | |
| 0.00 | 2.42 | 0.00 | 1.63 | -15.69 | 224.38 | -41.33 | 109.99 | 0.6789 | -713.0 | -564.4 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -12.54 | 224.91 | -40.80 | 105.54 | 0.6644 | -513.0 | -405.2 | |
| 2.33 | 6.18 | 1.56 | 4.15 | -14.84 | 224.33 | -41.38 | 108.76 | 0.6772 | -794.0 | -644.6 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -14.23 | 224.48 | -41.24 | 107.91 | 0.6738 | 358.0 | 243.4 | |
| 1.70 | 2.69 | 1.15 | 1.81 | -14.74 | 223.98 | -41.73 | 108.51 | 0.6812 | -799.1 | -605.1 | |
| 1.16 | 3.14 | 0.82 | 2.20 | -19.43 | 222.65 | -43.07 | 114.64 | 0.7108 | -779.0 | -628.5 | |
| 7.44 | 11.38 | 5.04 | 7.71 | -14.54 | 223.61 | -42.11 | 108.11 | 0.6852 | -835.8 | -658.4 | |
| 14.78 | 75.09 | 10.29 | 52.29 | -17.25 | 222.59 | -43.13 | 111.63 | 0.7046 | 1024.4 | 277.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -19.67 | 221.36 | -44.35 | 114.51 | 0.7258 | -525.0 | -378.2 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -14.73 | 222.79 | -42.92 | 108.16 | 0.6954 | -642.0 | -432.4 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -15.40 | 222.45 | -43.26 | 109.01 | 0.7012 | -636.0 | -504.5 | |
| 0.90 | 3.67 | 0.62 | 2.54 | -15.12 | 222.48 | -43.23 | 108.63 | 0.7001 | -901.5 | -638.7 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -14.47 | 222.56 | -43.16 | 107.73 | 0.6977 | -647.0 | -512.1 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -14.56 | 222.49 | -43.22 | 107.84 | 0.6986 | -447.0 | -466.0 | |
| 0.00 | 1.88 | 0.00 | 1.31 | -15.08 | 222.27 | -43.44 | 108.52 | 0.7025 | -486.0 | -402.1 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -19.43 | 220.95 | -44.77 | 114.05 | 0.7296 | -573.0 | -467.3 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -15.48 | 222.08 | -43.63 | 109.02 | 0.7057 | -489.0 | -394.5 | |
| 1.16 | 5.29 | 0.81 | 3.66 | -14.52 | 222.20 | -43.52 | 107.71 | 0.7020 | -657.7 | -527.3 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -19.36 | 220.66 | -45.06 | 113.86 | 0.7325 | -565.0 | -462.1 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -19.00 | 220.55 | -45.16 | 113.36 | 0.7326 | -514.0 | -539.2 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -16.58 | 220.53 | -45.18 | 110.10 | 0.7263 | -597.0 | -488.1 | |
| 0.00 | 2.06 | 0.00 | 1.58 | -22.41 | 218.30 | -47.42 | 117.03 | 0.7664 | -689.0 | -576.3 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -22.21 | 218.29 | -47.43 | 116.78 | 0.7659 | -481.0 | -433.3 | |
| 0.00 | 1.43 | 0.00 | 1.11 | -22.24 | 218.03 | -47.68 | 116.73 | 0.7685 | -315.0 | -301.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
