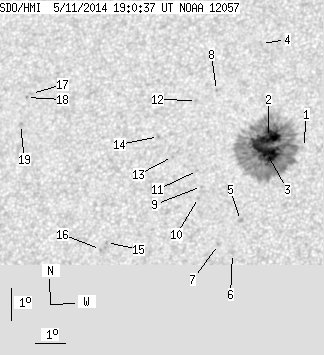

SDO HMI 2014-05-11 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.73 | 301.43 | 34.01 | 163.63 | 14.80 | 248.80 | -16.36 | 41.76 | 0.4105 | -533.4 | -303.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.63 | 14.75 | 250.21 | -14.95 | 39.37 | 0.3950 | -128.0 | -114.2 | |
| 28.05 | 281.62 | 15.23 | 152.66 | 15.08 | 249.04 | -16.11 | 40.90 | 0.4110 | -1091.8 | -385.5 | |
| 34.68 | -2.00 | 18.78 | -2.00 | 14.61 | 249.02 | -16.14 | 41.75 | 0.4058 | -1208.0 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 18.11 | 248.55 | -16.61 | 37.11 | 0.4521 | 747.0 | 593.1 | |
| 0.00 | 2.15 | 0.00 | 1.16 | 12.47 | 248.32 | -16.84 | 46.81 | 0.3896 | 929.0 | 722.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 11.44 | 248.13 | -17.03 | 49.16 | 0.3811 | 664.0 | 458.0 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 11.73 | 247.66 | -17.50 | 49.35 | 0.3898 | 761.0 | 573.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 16.62 | 247.20 | -17.96 | 41.47 | 0.4480 | 871.0 | 714.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 13.57 | 246.97 | -18.19 | 46.94 | 0.4170 | 805.0 | 625.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 13.22 | 246.90 | -18.26 | 47.68 | 0.4143 | 644.0 | 573.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 14.08 | 246.80 | -18.36 | 46.30 | 0.4244 | 957.0 | 761.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.31 | 246.56 | -18.59 | 42.93 | 0.4512 | 849.0 | 709.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.54 | 245.93 | -19.23 | 46.79 | 0.4391 | 699.0 | 584.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 15.18 | 245.41 | -19.75 | 46.45 | 0.4518 | 792.0 | 685.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 11.86 | 243.97 | -21.19 | 54.31 | 0.4373 | 699.0 | 583.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 11.65 | 243.79 | -21.37 | 54.95 | 0.4377 | 627.0 | 549.0 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 16.66 | 240.92 | -24.24 | 49.76 | 0.5173 | 632.0 | 496.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 16.53 | 240.77 | -24.39 | 50.12 | 0.5180 | 748.0 | 617.5 | |
| 0.00 | 1.97 | 0.00 | 1.13 | 15.67 | 240.67 | -24.49 | 51.59 | 0.5114 | 807.0 | 656.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
