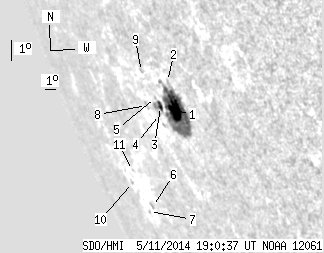

SDO HMI 2014-05-11 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.42 | 99.98 | 32.84 | 158.04 | -24.08 | 193.88 | -71.28 | 114.40 | 0.9501 | 271.0 | 62.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.28 | 82.43 | 27.78 | 125.48 | -23.97 | 194.66 | -70.50 | 114.33 | 0.9467 | 489.8 | 141.9 | |
| 0.00 | 1.25 | 0.00 | 1.87 | -23.03 | 195.02 | -70.14 | 113.37 | 0.9443 | 36.0 | 86.9 | |
| 3.14 | 6.99 | 5.06 | 11.38 | -23.77 | 193.36 | -71.80 | 114.01 | 0.9531 | -118.5 | -397.1 | |
| 0.00 | 1.08 | 0.00 | 1.77 | -24.02 | 192.91 | -72.25 | 114.23 | 0.9553 | -260.0 | -253.0 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -23.47 | 193.23 | -71.93 | 113.69 | 0.9536 | -454.0 | -434.0 | |
| 0.00 | 1.43 | 0.00 | 3.48 | -26.79 | 186.86 | -78.30 | 116.75 | 0.9797 | -389.0 | -351.8 | |
| 0.00 | 1.16 | 0.00 | 3.01 | -26.92 | 186.00 | -79.16 | 116.84 | 0.9823 | -161.0 | -85.9 | |
| 0.00 | 2.69 | 0.00 | 4.65 | -23.67 | 191.94 | -73.22 | 113.80 | 0.9596 | -441.0 | -347.7 | |
| 0.00 | 1.16 | 0.00 | 1.92 | -22.60 | 192.87 | -72.28 | 112.75 | 0.9549 | 126.0 | -37.4 | |
| 0.00 | 1.25 | 0.00 | 3.38 | -25.92 | 185.53 | -79.63 | 115.80 | 0.9836 | 22.0 | 71.9 | |
| 0.00 | 0.27 | 0.00 | 0.66 | -25.56 | 186.45 | -78.71 | 115.47 | 0.9808 | -146.0 | -154.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
