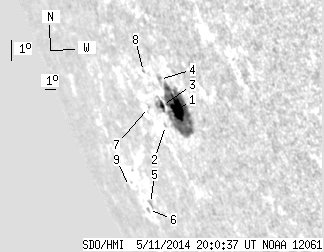

SDO HMI 2014-05-11 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.89 | 105.93 | 29.60 | 163.59 | -24.14 | 193.80 | -70.81 | 114.49 | 0.9476 | 365.7 | 74.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.65 | 85.13 | 26.09 | 126.03 | -23.97 | 194.70 | -69.91 | 114.38 | 0.9436 | 563.8 | 168.2 | |
| 0.00 | 1.43 | 0.00 | 2.31 | -24.41 | 192.89 | -71.72 | 114.69 | 0.9529 | 62.0 | 65.0 | |
| 2.24 | 9.14 | 3.51 | 14.44 | -23.77 | 193.43 | -71.17 | 114.06 | 0.9500 | -67.4 | -267.9 | |
| 0.00 | 2.69 | 0.00 | 4.05 | -22.95 | 194.16 | -70.45 | 113.26 | 0.9459 | -387.0 | -352.9 | |
| 0.00 | 2.78 | 0.00 | 6.47 | -26.72 | 186.81 | -77.80 | 116.69 | 0.9781 | -371.0 | -306.4 | |
| 0.00 | 1.97 | 0.00 | 4.87 | -26.89 | 186.06 | -78.54 | 116.83 | 0.9805 | -116.0 | -91.4 | |
| 0.00 | 0.90 | 0.00 | 1.51 | -23.77 | 191.93 | -72.68 | 113.94 | 0.9572 | -382.0 | -306.5 | |
| 0.00 | 1.08 | 0.00 | 1.72 | -22.63 | 192.92 | -71.69 | 112.83 | 0.9520 | -47.0 | -25.2 | |
| 0.00 | 0.81 | 0.00 | 2.19 | -26.04 | 184.80 | -79.81 | 115.93 | 0.9841 | 153.0 | 149.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
