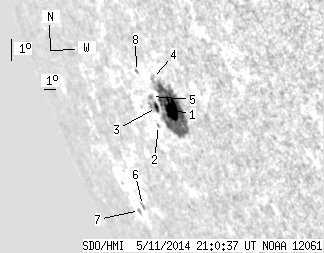

SDO HMI 2014-05-11 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.94 | 110.76 | 33.28 | 165.21 | -24.08 | 194.00 | -70.05 | 114.50 | 0.9439 | 372.6 | 73.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.07 | 90.15 | 28.90 | 130.11 | -23.96 | 194.73 | -69.32 | 114.43 | 0.9405 | 555.4 | 167.9 | |
| 0.00 | 1.34 | 0.00 | 2.11 | -24.40 | 192.88 | -71.17 | 114.72 | 0.9503 | 58.0 | 86.3 | |
| 2.87 | 7.17 | 4.38 | 11.03 | -23.83 | 193.42 | -70.63 | 114.17 | 0.9473 | -48.0 | -337.1 | |
| 0.00 | 3.32 | 0.00 | 4.88 | -22.91 | 194.14 | -69.91 | 113.27 | 0.9431 | -410.0 | -367.4 | |
| 0.00 | 2.60 | 0.00 | 3.98 | -23.47 | 193.37 | -70.68 | 113.78 | 0.9474 | -415.0 | -372.8 | |
| 0.00 | 2.87 | 0.00 | 6.45 | -26.78 | 186.76 | -77.29 | 116.78 | 0.9764 | -357.0 | -303.0 | |
| 0.00 | 1.79 | 0.00 | 4.28 | -26.91 | 185.96 | -78.09 | 116.87 | 0.9791 | -198.0 | -64.4 | |
| 0.00 | 1.52 | 0.00 | 2.37 | -22.62 | 192.90 | -71.15 | 112.86 | 0.9494 | 117.0 | 90.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
