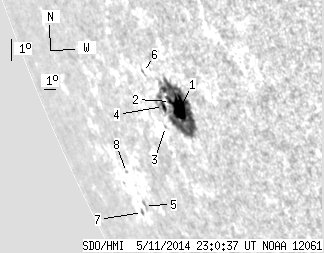

SDO HMI 2014-05-11 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.89 | 122.62 | 28.89 | 174.44 | -24.09 | 193.98 | -68.97 | 114.62 | 0.9380 | 418.9 | 81.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-11 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.57 | 113.74 | 24.10 | 157.57 | -23.95 | 194.81 | -68.13 | 114.55 | 0.9339 | 615.0 | 108.8 | |
| 0.27 | -1.00 | 0.38 | -1.00 | -23.70 | 194.28 | -68.66 | 114.22 | 0.9367 | 109.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.47 | -24.46 | 192.89 | -70.05 | 114.89 | 0.9447 | 135.0 | 157.2 | |
| 3.05 | -1.00 | 4.41 | -1.00 | -23.82 | 193.48 | -69.47 | 114.27 | 0.9412 | 43.6 | 999999 | |
| 0.00 | 2.87 | 0.00 | 6.01 | -26.80 | 186.64 | -76.30 | 116.85 | 0.9730 | -523.0 | -344.2 | |
| 0.00 | 2.24 | 0.00 | 3.32 | -22.68 | 192.90 | -70.04 | 113.01 | 0.9437 | 141.0 | 111.4 | |
| 0.00 | 1.79 | 0.00 | 3.97 | -27.00 | 185.90 | -77.04 | 117.01 | 0.9757 | -106.0 | -78.8 | |
| 0.00 | 0.99 | 0.00 | 2.10 | -25.67 | 186.34 | -76.60 | 115.68 | 0.9738 | -198.0 | -166.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
