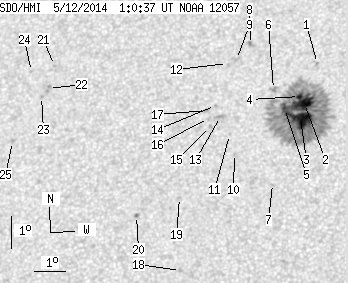

SDO HMI 2014-05-12 01:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.01 | 333.52 | 23.51 | 178.48 | 14.85 | 248.56 | -13.28 | 35.89 | 0.3797 | -358.5 | -314.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 01:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.37 | 249.42 | -12.42 | 31.93 | 0.3917 | -747.0 | -677.8 | |
| 14.88 | 295.68 | 7.96 | 157.88 | 15.10 | 249.08 | -12.76 | 34.52 | 0.3777 | -1171.8 | -435.8 | |
| 24.92 | -2.00 | 13.29 | -2.00 | 14.62 | 248.98 | -12.86 | 35.49 | 0.3724 | -1306.0 | 999999 | |
| 2.24 | -2.00 | 1.20 | -2.00 | 15.32 | 248.91 | -12.93 | 34.54 | 0.3823 | -950.8 | 999999 | |
| 1.97 | -2.00 | 1.06 | -2.00 | 14.95 | 248.45 | -13.39 | 36.06 | 0.3817 | -842.2 | 999999 | |
| 0.00 | 4.21 | 0.00 | 2.27 | 15.56 | 248.05 | -13.78 | 35.88 | 0.3933 | -791.0 | -451.0 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 12.58 | 248.20 | -13.64 | 40.69 | 0.3545 | 442.0 | 598.8 | |
| 0.00 | 3.32 | 0.00 | 1.81 | 17.02 | 247.20 | -14.64 | 35.32 | 0.4198 | 938.0 | 707.6 | |
| 0.00 | 4.21 | 0.00 | 2.30 | 16.54 | 246.78 | -15.06 | 36.78 | 0.4178 | 833.0 | 552.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 13.54 | 246.92 | -14.91 | 41.43 | 0.3797 | 753.0 | 509.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 14.15 | 246.72 | -15.11 | 40.74 | 0.3891 | 772.0 | 570.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 16.42 | 246.49 | -15.35 | 37.48 | 0.4190 | 636.0 | 537.6 | |
| 0.00 | 4.12 | 0.00 | 2.23 | 14.72 | 246.39 | -15.45 | 40.36 | 0.3994 | 894.0 | 710.7 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 15.08 | 246.20 | -15.63 | 40.11 | 0.4056 | 787.0 | 577.4 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 14.41 | 246.09 | -15.75 | 41.43 | 0.3989 | 684.0 | 568.6 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 14.67 | 246.00 | -15.83 | 41.15 | 0.4028 | 693.0 | 523.5 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 14.92 | 245.92 | -15.92 | 40.87 | 0.4067 | 862.0 | 685.2 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 9.90 | 245.40 | -16.44 | 51.51 | 0.3577 | 770.0 | 601.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.19 | 245.23 | -16.60 | 47.02 | 0.3834 | 665.0 | 485.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 11.65 | 243.87 | -17.96 | 50.29 | 0.3943 | 878.0 | 761.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 16.46 | 240.73 | -21.11 | 46.28 | 0.4797 | 760.0 | 608.2 | |
| 0.00 | 2.51 | 0.00 | 1.41 | 15.72 | 240.61 | -21.23 | 47.62 | 0.4737 | 752.0 | 760.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 15.47 | 240.40 | -21.44 | 48.30 | 0.4737 | 771.0 | 607.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 16.28 | 239.97 | -21.87 | 47.55 | 0.4865 | 602.0 | 537.0 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 14.06 | 239.57 | -22.27 | 51.72 | 0.4701 | 805.0 | 668.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
