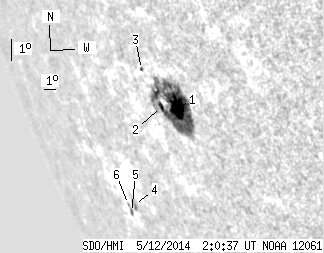

SDO HMI 2014-05-12 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.69 | 145.17 | 29.81 | 193.35 | -24.18 | 194.00 | -67.28 | 114.90 | 0.9285 | 490.3 | 66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.83 | 136.20 | 24.14 | 176.49 | -23.97 | 194.85 | -66.44 | 114.76 | 0.9241 | 676.1 | 98.2 | |
| 2.60 | -1.00 | 3.50 | -1.00 | -23.84 | 193.60 | -67.68 | 114.49 | 0.9313 | 71.1 | 999999 | |
| 0.54 | 0.99 | 0.73 | 1.34 | -22.61 | 193.15 | -68.13 | 113.12 | 0.9331 | -319.5 | -336.4 | |
| 0.00 | 4.57 | 0.00 | 8.72 | -26.78 | 186.62 | -74.66 | 116.94 | 0.9669 | -437.0 | -333.6 | |
| 0.72 | 2.33 | 1.44 | 4.66 | -27.01 | 185.78 | -75.51 | 117.12 | 0.9702 | -132.2 | -82.3 | |
| 0.00 | 1.08 | 0.00 | 2.14 | -26.74 | 185.89 | -75.39 | 116.85 | 0.9697 | -112.0 | -149.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
