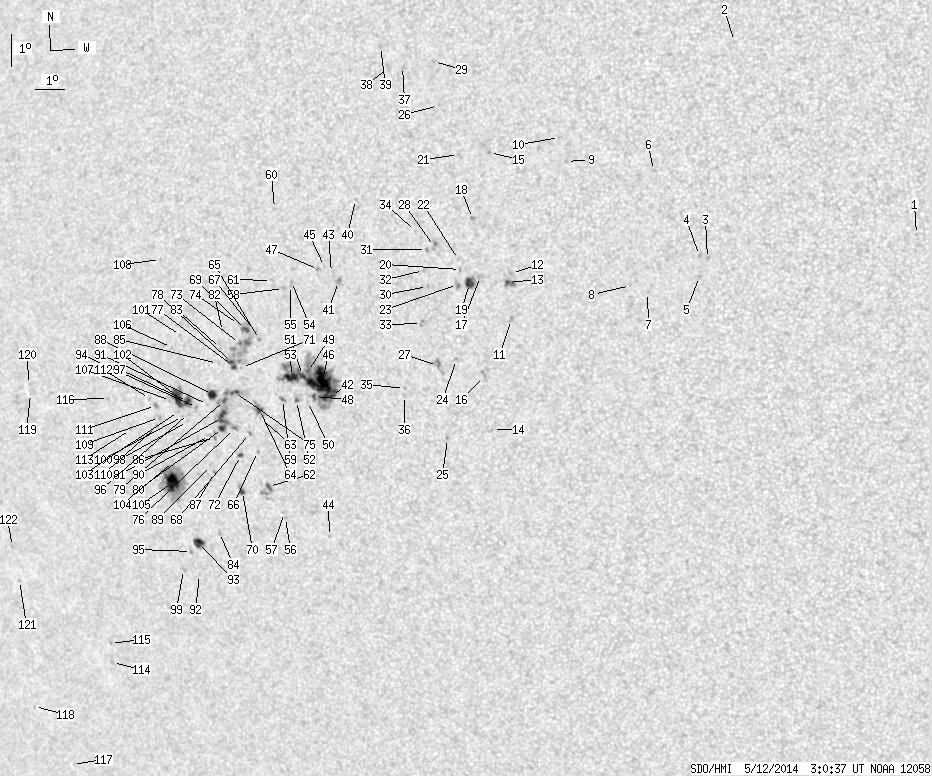

SDO HMI 2014-05-12 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.63 | 546.87 | 89.66 | 332.71 | -14.67 | 227.00 | -33.73 | 111.34 | 0.5777 | 135.2 | 20.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.23 | 249.26 | -11.47 | 122.91 | 0.2341 | 832.0 | 567.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.29 | 243.72 | -17.01 | 94.81 | 0.2941 | 592.0 | 510.2 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -10.87 | 242.57 | -18.17 | 114.45 | 0.3378 | 924.0 | 701.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -10.77 | 242.31 | -18.42 | 113.91 | 0.3410 | 842.0 | 670.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.41 | 242.27 | -18.46 | 115.60 | 0.3457 | 871.0 | 667.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.15 | 240.97 | -19.76 | 105.47 | 0.3488 | 903.0 | 719.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -11.87 | 240.53 | -20.20 | 114.94 | 0.3743 | 663.0 | 521.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.65 | 239.99 | -20.74 | 113.86 | 0.3809 | 644.0 | 528.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -7.82 | 238.14 | -22.60 | 102.99 | 0.3923 | 769.0 | 624.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -7.09 | 237.95 | -22.79 | 101.06 | 0.3933 | 712.0 | 655.2 | |
| 0.00 | 2.51 | 0.00 | 1.39 | -12.60 | 235.90 | -24.84 | 112.69 | 0.4461 | 834.0 | 698.1 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -11.20 | 236.04 | -24.70 | 109.73 | 0.4372 | 936.0 | 628.1 | |
| 1.43 | 6.10 | 0.79 | 3.36 | -11.47 | 235.88 | -24.86 | 110.22 | 0.4409 | 995.0 | 813.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -15.98 | 234.83 | -25.91 | 118.65 | 0.4806 | 742.0 | 616.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -7.49 | 235.58 | -25.15 | 101.15 | 0.4313 | 868.0 | 764.7 | |
| 0.00 | 3.68 | 0.00 | 2.06 | -14.34 | 234.77 | -25.97 | 115.40 | 0.4715 | 855.0 | 663.8 | |
| 0.00 | 3.59 | 0.00 | 1.99 | -11.26 | 234.97 | -25.76 | 109.22 | 0.4533 | 679.0 | 612.4 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -9.49 | 234.86 | -25.87 | 105.32 | 0.4481 | 757.0 | 656.2 | |
| 5.92 | 9.95 | 3.30 | 5.55 | -11.47 | 234.57 | -26.16 | 109.41 | 0.4600 | 1032.7 | 826.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -11.03 | 234.31 | -26.43 | 108.35 | 0.4621 | 492.0 | 434.1 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -7.53 | 234.53 | -26.21 | 100.87 | 0.4476 | 609.0 | 450.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -10.73 | 234.27 | -26.47 | 107.68 | 0.4615 | 807.0 | 675.7 | |
| 0.00 | 3.95 | 0.00 | 2.21 | -11.49 | 234.16 | -26.58 | 109.22 | 0.4662 | 842.0 | 554.5 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -13.79 | 233.86 | -26.88 | 113.67 | 0.4813 | -605.0 | -401.8 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -16.22 | 233.20 | -27.53 | 117.82 | 0.5039 | 840.0 | 718.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -6.03 | 233.94 | -26.80 | 97.39 | 0.4540 | 726.0 | 602.0 | |
| 0.00 | 9.15 | 0.00 | 5.20 | -13.96 | 233.17 | -27.56 | 113.54 | 0.4918 | 976.0 | 729.8 | |
| 0.00 | 3.68 | 0.00 | 2.06 | -10.31 | 233.48 | -27.26 | 106.41 | 0.4716 | 719.0 | 602.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -4.69 | 233.83 | -26.90 | 94.43 | 0.4542 | 801.0 | 582.3 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -11.52 | 233.11 | -27.62 | 108.71 | 0.4816 | 726.0 | 555.2 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -10.39 | 233.19 | -27.54 | 106.45 | 0.4761 | 625.0 | 479.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -11.03 | 233.02 | -27.71 | 107.67 | 0.4810 | 715.0 | 558.2 | |
| 0.00 | 2.69 | 0.00 | 1.53 | -12.65 | 232.77 | -27.96 | 110.76 | 0.4912 | 685.0 | 700.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.83 | 232.86 | -27.87 | 105.16 | 0.4791 | 546.0 | 485.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.64 | 231.90 | -28.83 | 114.00 | 0.5128 | 698.0 | 592.9 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -14.85 | 231.87 | -28.86 | 114.38 | 0.5143 | 802.0 | 652.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -4.81 | 232.76 | -27.97 | 94.59 | 0.4708 | 569.0 | 534.5 | |
| 0.00 | 3.23 | 0.00 | 1.82 | -4.83 | 232.28 | -28.46 | 94.58 | 0.4782 | 495.0 | 345.2 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -4.19 | 232.03 | -28.70 | 93.22 | 0.4817 | 723.0 | 514.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -8.81 | 230.85 | -29.88 | 102.35 | 0.5060 | 731.0 | 539.5 | |
| 0.00 | 4.21 | 0.00 | 2.45 | -11.29 | 229.98 | -30.75 | 106.78 | 0.5258 | -970.0 | -775.8 | |
| 2.33 | 144.83 | 1.38 | 86.16 | -14.78 | 229.23 | -31.50 | 112.71 | 0.5498 | 844.9 | 308.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -11.01 | 229.76 | -30.97 | 106.16 | 0.5280 | -532.0 | -557.8 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -19.17 | 228.31 | -32.42 | 119.46 | 0.5838 | 677.0 | 582.3 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -10.82 | 229.53 | -31.20 | 105.72 | 0.5307 | -545.0 | -618.0 | |
| 45.11 | -42.00 | 26.76 | -42.00 | -14.40 | 228.93 | -31.81 | 111.89 | 0.5523 | 982.0 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.42 | -10.90 | 229.31 | -31.43 | 105.79 | 0.5342 | -604.0 | -523.2 | |
| 1.35 | -42.00 | 0.80 | -42.00 | -14.80 | 228.60 | -32.13 | 112.40 | 0.5583 | 616.2 | 999999 | |
| 1.08 | -42.00 | 0.64 | -42.00 | -14.02 | 228.47 | -32.26 | 110.99 | 0.5569 | 494.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -14.94 | 228.32 | -32.42 | 112.51 | 0.5628 | 302.0 | 225.5 | |
| 3.50 | -42.00 | 2.09 | -42.00 | -14.14 | 228.27 | -32.47 | 111.10 | 0.5601 | 717.6 | 999999 | |
| 0.81 | 2.87 | 0.48 | 1.72 | -14.90 | 227.92 | -32.82 | 112.23 | 0.5680 | 459.6 | 36.6 | |
| 8.43 | -42.00 | 5.06 | -42.00 | -14.16 | 227.85 | -32.88 | 110.94 | 0.5657 | 727.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -11.24 | 228.28 | -32.45 | 106.02 | 0.5497 | -675.0 | -611.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -11.36 | 228.23 | -32.50 | 106.22 | 0.5508 | -752.0 | -584.3 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -18.53 | 226.77 | -33.96 | 117.52 | 0.5995 | 677.0 | 461.7 | |
| 0.00 | 1.70 | 0.00 | 1.05 | -18.37 | 226.77 | -33.97 | 117.27 | 0.5987 | 693.0 | 487.8 | |
| 0.00 | 2.69 | 0.00 | 1.60 | -11.45 | 227.96 | -32.77 | 106.27 | 0.5548 | -826.0 | -644.7 | |
| 0.72 | 3.05 | 0.43 | 1.84 | -14.85 | 227.40 | -33.34 | 111.90 | 0.5747 | 650.6 | 422.8 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -9.00 | 227.92 | -32.81 | 101.87 | 0.5491 | 617.0 | 397.6 | |
| 0.00 | 1.52 | 0.00 | 0.91 | -11.19 | 227.55 | -33.18 | 105.67 | 0.5598 | -623.0 | -529.4 | |
| 1.79 | 10.13 | 1.11 | 6.27 | -17.54 | 226.34 | -34.40 | 115.73 | 0.6002 | 840.0 | 588.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -15.42 | 226.46 | -34.27 | 112.39 | 0.5893 | 500.0 | 402.6 | |
| 3.32 | 9.15 | 2.03 | 5.59 | -15.14 | 226.48 | -34.26 | 111.94 | 0.5880 | 722.9 | 379.0 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -12.98 | 226.85 | -33.89 | 108.50 | 0.5751 | -784.0 | -668.2 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -16.44 | 226.15 | -34.59 | 113.88 | 0.5977 | -790.0 | -670.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -12.73 | 226.74 | -34.00 | 108.03 | 0.5758 | -832.0 | -721.1 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -15.87 | 225.95 | -34.78 | 112.88 | 0.5977 | 614.0 | 397.8 | |
| 2.60 | 7.71 | 1.58 | 4.68 | -12.66 | 226.37 | -34.36 | 107.77 | 0.5805 | -1066.2 | -743.7 | |
| 2.15 | 5.29 | 1.35 | 3.31 | -17.66 | 225.30 | -35.44 | 115.39 | 0.6138 | 673.4 | 477.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -13.82 | 226.03 | -34.70 | 109.58 | 0.5890 | -794.0 | -689.8 | |
| 1.35 | 2.96 | 0.84 | 1.84 | -16.54 | 225.47 | -35.27 | 113.72 | 0.6068 | 579.3 | 398.4 | |
| 0.54 | 40.00 | 0.33 | 24.43 | -13.08 | 226.08 | -34.66 | 108.37 | 0.5858 | -946.0 | -697.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -12.50 | 226.13 | -34.60 | 107.41 | 0.5832 | -474.0 | -317.5 | |
| 2.51 | 47.26 | 1.55 | 29.32 | -14.58 | 225.63 | -35.11 | 110.66 | 0.5970 | -955.6 | -637.5 | |
| 0.63 | -75.00 | 0.39 | -75.00 | -15.70 | 225.41 | -35.32 | 112.35 | 0.6041 | -795.6 | 999999 | |
| 1.61 | -73.00 | 0.99 | -73.00 | -13.78 | 225.73 | -35.00 | 109.39 | 0.5928 | -750.6 | 999999 | |
| 1.61 | -73.00 | 0.99 | -73.00 | -13.66 | 225.68 | -35.06 | 109.16 | 0.5931 | -914.4 | 999999 | |
| 1.52 | -75.00 | 0.95 | -75.00 | -14.82 | 225.20 | -35.54 | 110.86 | 0.6035 | -978.6 | 999999 | |
| 2.96 | -75.00 | 1.85 | -75.00 | -15.68 | 224.95 | -35.79 | 112.12 | 0.6100 | -767.5 | 999999 | |
| 7.35 | -75.00 | 4.58 | -75.00 | -15.34 | 225.02 | -35.72 | 111.61 | 0.6078 | -945.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -12.70 | 225.49 | -35.24 | 107.51 | 0.5924 | -670.0 | -592.5 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -13.21 | 225.33 | -35.40 | 108.30 | 0.5962 | -357.0 | -331.6 | |
| 0.00 | 1.88 | 0.00 | 1.20 | -18.92 | 224.08 | -36.65 | 116.69 | 0.6343 | -765.0 | -581.3 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -13.67 | 225.14 | -35.60 | 108.98 | 0.6003 | 343.0 | 304.5 | |
| 0.36 | 2.42 | 0.22 | 1.52 | -15.95 | 224.58 | -36.15 | 112.39 | 0.6157 | -590.2 | -470.7 | |
| 0.00 | 1.52 | 0.00 | 0.96 | -17.04 | 224.34 | -36.39 | 113.96 | 0.6230 | -813.0 | -701.6 | |
| 5.74 | 9.77 | 3.58 | 6.09 | -14.62 | 224.77 | -35.96 | 110.36 | 0.6083 | -990.0 | -526.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -16.82 | 224.23 | -36.50 | 113.57 | 0.6235 | -468.0 | -471.2 | |
| 0.00 | 1.61 | 0.00 | 1.01 | -15.88 | 224.40 | -36.34 | 112.20 | 0.6178 | -634.0 | -521.0 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -14.92 | 224.52 | -36.22 | 110.74 | 0.6127 | -468.0 | -430.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -20.22 | 222.92 | -37.82 | 118.02 | 0.6540 | -640.0 | -482.7 | |
| 6.55 | 9.24 | 4.24 | 5.98 | -19.21 | 223.16 | -37.57 | 116.67 | 0.6466 | -917.2 | -663.0 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -15.00 | 224.07 | -36.66 | 110.68 | 0.6187 | -940.0 | -824.2 | |
| 0.00 | 2.33 | 0.00 | 1.52 | -19.48 | 222.80 | -37.93 | 116.89 | 0.6521 | -718.0 | -581.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -15.18 | 223.72 | -37.01 | 110.82 | 0.6238 | -607.0 | -538.6 | |
| 4.84 | 26.54 | 3.06 | 16.80 | -14.81 | 223.76 | -36.98 | 110.25 | 0.6221 | -1010.4 | -677.7 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -15.42 | 223.63 | -37.10 | 111.17 | 0.6258 | -550.0 | -450.7 | |
| 0.00 | 1.88 | 0.00 | 1.24 | -20.04 | 222.31 | -38.42 | 117.47 | 0.6603 | -695.0 | -591.4 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -15.26 | 223.47 | -37.27 | 110.85 | 0.6274 | -454.0 | -364.4 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -12.77 | 223.87 | -36.87 | 107.07 | 0.6143 | -600.0 | -499.8 | |
| 12.20 | -97.00 | 7.73 | -97.00 | -14.67 | 223.43 | -37.30 | 109.92 | 0.6258 | -878.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -15.10 | 223.34 | -37.39 | 110.56 | 0.6284 | -428.0 | -374.2 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -16.65 | 222.80 | -37.93 | 112.70 | 0.6407 | 10.0 | 7.8 | |
| 16.32 | 69.41 | 10.56 | 44.89 | -17.30 | 222.60 | -38.13 | 113.59 | 0.6456 | 1044.6 | 379.0 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -13.12 | 223.45 | -37.28 | 107.50 | 0.6208 | -598.0 | -465.0 | |
| 0.00 | 1.70 | 0.00 | 1.08 | -14.75 | 223.10 | -37.64 | 109.92 | 0.6304 | -157.0 | -339.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -10.42 | 223.46 | -37.28 | 103.18 | 0.6140 | -587.0 | -463.7 | |
| 0.00 | 1.97 | 0.00 | 1.27 | -15.26 | 222.55 | -38.18 | 110.51 | 0.6390 | -774.0 | -579.5 | |
| 0.00 | 1.70 | 0.00 | 1.10 | -15.54 | 222.37 | -38.36 | 110.86 | 0.6422 | -540.0 | -463.2 | |
| 0.00 | 2.69 | 0.00 | 1.73 | -14.89 | 222.47 | -38.26 | 109.90 | 0.6388 | -675.0 | -600.6 | |
| 0.00 | 1.70 | 0.00 | 1.10 | -14.67 | 222.28 | -38.46 | 109.49 | 0.6405 | -568.0 | -445.6 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -15.60 | 221.30 | -39.43 | 110.55 | 0.6556 | -681.0 | -501.6 | |
| 0.00 | 1.52 | 0.00 | 1.08 | -22.89 | 218.30 | -42.43 | 119.57 | 0.7170 | -566.0 | -482.5 | |
| 0.00 | 1.43 | 0.00 | 1.01 | -22.28 | 218.45 | -42.29 | 118.83 | 0.7130 | -700.0 | -516.1 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -14.61 | 220.63 | -40.11 | 108.86 | 0.6610 | -562.0 | -474.7 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -26.12 | 215.00 | -45.73 | 122.32 | 0.7631 | -424.0 | -398.4 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -24.18 | 214.12 | -46.62 | 119.56 | 0.7645 | -458.0 | -362.7 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -14.34 | 217.41 | -43.32 | 107.56 | 0.6995 | -488.0 | -461.8 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -14.06 | 217.43 | -43.30 | 107.17 | 0.6986 | -603.0 | -482.8 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -20.14 | 215.13 | -45.60 | 114.75 | 0.7410 | -539.0 | -449.6 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -19.06 | 215.21 | -45.53 | 113.36 | 0.7370 | -241.0 | -319.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
