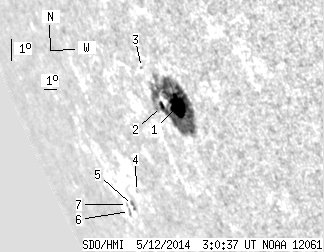

SDO HMI 2014-05-12 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.65 | 154.61 | 32.40 | 200.81 | -24.12 | 194.06 | -66.67 | 114.91 | 0.9249 | 442.3 | 64.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.69 | 145.99 | 28.50 | 185.10 | -23.92 | 194.83 | -65.90 | 114.78 | 0.9207 | 624.2 | 98.4 | |
| 2.96 | -1.00 | 3.90 | -1.00 | -23.86 | 193.55 | -67.18 | 114.56 | 0.9285 | 61.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.20 | -22.56 | 193.17 | -67.56 | 113.13 | 0.9298 | -341.0 | -377.0 | |
| 0.00 | 0.81 | 0.00 | 1.41 | -26.41 | 187.70 | -73.04 | 116.68 | 0.9600 | -176.0 | -198.0 | |
| 0.00 | 3.50 | 0.00 | 6.50 | -26.83 | 186.49 | -74.25 | 117.02 | 0.9652 | -508.0 | -380.4 | |
| 0.00 | 2.15 | 0.00 | 4.18 | -27.00 | 185.78 | -74.95 | 117.14 | 0.9681 | -198.0 | -133.9 | |
| 0.00 | 1.26 | 0.00 | 2.42 | -26.77 | 185.95 | -74.78 | 116.92 | 0.9674 | -264.0 | -160.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
