SDO HMI 2014-05-12 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.21 | 320.10 | 30.89 | 170.12 | 14.87 | 248.62 | -11.57 | 32.27 | 0.3640 | -503.8 | -298.2 | |
|
previous
or next observation for the same group /

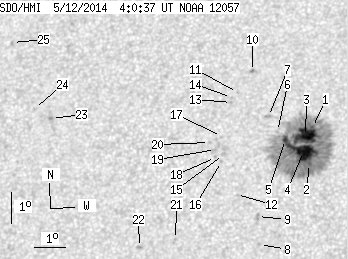

back to the solar disc SDO HMI 2014-05-12 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 289.14 | 0.14 | 153.44 | 15.39 | 249.21 | -10.98 | 30.27 | 0.3659 | -844.0 | -407.7 | |
| 1.08 | -1.00 | 0.57 | -1.00 | 14.24 | 249.17 | -11.02 | 32.07 | 0.3503 | -1060.6 | 999999 | |
| 25.20 | -1.00 | 13.39 | -1.00 | 15.10 | 249.00 | -11.19 | 31.15 | 0.3637 | -1133.4 | 999999 | |
| 28.52 | -1.00 | 15.12 | -1.00 | 14.63 | 248.96 | -11.23 | 31.96 | 0.3574 | -1321.7 | 999999 | |
| 3.14 | -1.00 | 1.67 | -1.00 | 15.02 | 248.36 | -11.82 | 32.70 | 0.3679 | -853.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 15.27 | 248.09 | -12.09 | 32.89 | 0.3738 | -402.0 | -276.1 | |
| 0.00 | 2.69 | 0.00 | 1.44 | 15.76 | 247.77 | -12.41 | 32.84 | 0.3831 | -754.0 | -560.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.71 | 247.70 | -12.49 | 39.94 | 0.3312 | 606.0 | 498.5 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 12.59 | 247.59 | -12.59 | 38.48 | 0.3434 | 767.0 | 745.2 | |
| 0.00 | 2.51 | 0.00 | 1.36 | 17.21 | 247.16 | -13.03 | 32.02 | 0.4078 | 980.0 | 743.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.54 | 246.72 | -13.47 | 33.82 | 0.4028 | 755.0 | 568.3 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 13.29 | 246.89 | -13.30 | 38.71 | 0.3594 | 488.0 | 464.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 16.22 | 246.54 | -13.64 | 34.63 | 0.4002 | 754.0 | 578.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 16.38 | 246.53 | -13.65 | 34.41 | 0.4024 | 743.0 | 598.6 | |
| 0.00 | 2.33 | 0.00 | 1.25 | 14.56 | 246.40 | -13.79 | 37.52 | 0.3804 | 671.0 | 612.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.34 | 246.35 | -13.84 | 37.99 | 0.3781 | 800.0 | 626.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 15.14 | 246.29 | -13.89 | 36.78 | 0.3886 | 627.0 | 549.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 14.47 | 246.14 | -14.04 | 38.17 | 0.3817 | 631.0 | 547.5 | |
| 0.00 | 5.02 | 0.00 | 2.69 | 14.73 | 246.13 | -14.06 | 37.78 | 0.3851 | 779.0 | 591.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.95 | 245.92 | -14.27 | 37.81 | 0.3900 | 788.0 | 640.2 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 11.90 | 245.01 | -15.17 | 45.07 | 0.3633 | 704.0 | 591.1 | |
| 0.00 | 2.15 | 0.00 | 1.15 | 11.67 | 243.87 | -16.32 | 47.59 | 0.3742 | 881.0 | 711.7 | |
| 0.00 | 1.70 | 0.00 | 0.95 | 15.81 | 240.66 | -19.53 | 45.18 | 0.4553 | 935.0 | 798.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 16.14 | 240.05 | -20.13 | 45.50 | 0.4654 | 556.0 | 453.3 | |
| 0.00 | 1.70 | 0.00 | 0.97 | 18.29 | 239.06 | -21.13 | 43.56 | 0.4986 | 700.0 | 629.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
