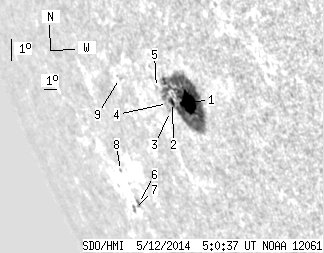

SDO HMI 2014-05-12 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.77 | 154.54 | 28.76 | 191.74 | -24.05 | 194.22 | -65.41 | 115.00 | 0.9173 | 451.8 | 96.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.53 | 143.32 | 25.94 | 173.90 | -23.90 | 194.94 | -64.69 | 114.93 | 0.9132 | 697.3 | 139.7 | |
| 2.24 | -1.00 | 2.82 | -1.00 | -23.85 | 193.71 | -65.92 | 114.71 | 0.9209 | 67.6 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.80 | -24.12 | 193.27 | -66.37 | 114.95 | 0.9238 | -320.0 | -276.6 | |
| 0.00 | 1.17 | 0.00 | 1.49 | -23.86 | 193.29 | -66.35 | 114.67 | 0.9235 | -272.0 | -233.6 | |
| 0.00 | 1.44 | 0.00 | 1.86 | -23.32 | 192.92 | -66.72 | 114.04 | 0.9253 | -417.0 | -354.1 | |
| 0.00 | 2.96 | 0.00 | 5.20 | -26.88 | 186.51 | -73.13 | 117.16 | 0.9606 | -469.0 | -382.3 | |
| 0.00 | 2.42 | 0.00 | 4.43 | -27.01 | 185.79 | -73.85 | 117.24 | 0.9637 | -217.0 | -115.1 | |
| 0.00 | 0.90 | 0.00 | 1.59 | -25.75 | 186.24 | -73.39 | 115.97 | 0.9613 | -176.0 | -166.4 | |
| 0.00 | 1.70 | 0.00 | 2.47 | -22.89 | 190.07 | -69.57 | 113.29 | 0.9414 | -251.0 | -248.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
