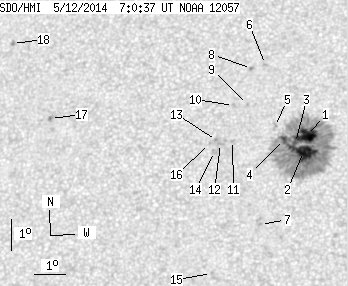

SDO HMI 2014-05-12 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.89 | 297.78 | 25.82 | 157.43 | 14.96 | 248.59 | -9.95 | 28.43 | 0.3515 | -541.2 | -360.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.91 | 272.49 | 10.53 | 143.84 | 15.17 | 248.98 | -9.56 | 27.28 | 0.3514 | -1137.8 | -466.0 | |
| 24.31 | -1.00 | 12.82 | -1.00 | 14.67 | 248.90 | -9.64 | 28.16 | 0.3446 | -1356.9 | 999999 | |
| 1.35 | -1.00 | 0.71 | -1.00 | 14.96 | 248.64 | -9.90 | 28.41 | 0.3508 | -1034.2 | 999999 | |
| 3.32 | -1.00 | 1.76 | -1.00 | 15.05 | 248.28 | -10.26 | 29.11 | 0.3550 | -841.9 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.53 | 15.47 | 247.94 | -10.60 | 29.31 | 0.3637 | -554.0 | -405.4 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 17.47 | 247.54 | -11.00 | 27.57 | 0.3949 | 756.0 | 537.7 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 12.37 | 247.64 | -10.90 | 34.99 | 0.3236 | 861.0 | 727.1 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 17.35 | 247.10 | -11.44 | 28.67 | 0.3965 | 920.0 | 733.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 16.19 | 247.04 | -11.50 | 30.33 | 0.3809 | 874.0 | 618.3 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 16.16 | 246.59 | -11.95 | 31.32 | 0.3843 | 782.0 | 648.7 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 15.04 | 246.62 | -11.92 | 32.90 | 0.3688 | 829.0 | 706.1 | |
| 0.00 | 2.15 | 0.00 | 1.15 | 14.95 | 246.24 | -12.30 | 33.86 | 0.3710 | 856.0 | 707.5 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 15.05 | 246.11 | -12.43 | 33.99 | 0.3735 | 792.0 | 730.2 | |
| 0.00 | 2.87 | 0.00 | 1.53 | 14.70 | 246.06 | -12.48 | 34.63 | 0.3693 | 687.0 | 671.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 10.86 | 246.15 | -12.39 | 41.50 | 0.3193 | 665.0 | 578.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.96 | 245.89 | -12.65 | 34.60 | 0.3743 | 713.0 | 507.1 | |
| 0.00 | 2.51 | 0.00 | 1.38 | 15.84 | 240.64 | -17.90 | 42.73 | 0.4376 | 991.0 | 799.5 | |
| 0.00 | 2.15 | 0.00 | 1.21 | 18.28 | 239.12 | -19.42 | 41.27 | 0.4807 | 870.0 | 704.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
