SDO HMI 2014-05-12 09:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.33 | 673.48 | 93.05 | 395.53 | -14.79 | 226.98 | -30.46 | 113.33 | 0.5349 | 126.3 | 41.8 | |
|
previous
or next observation for the same group /

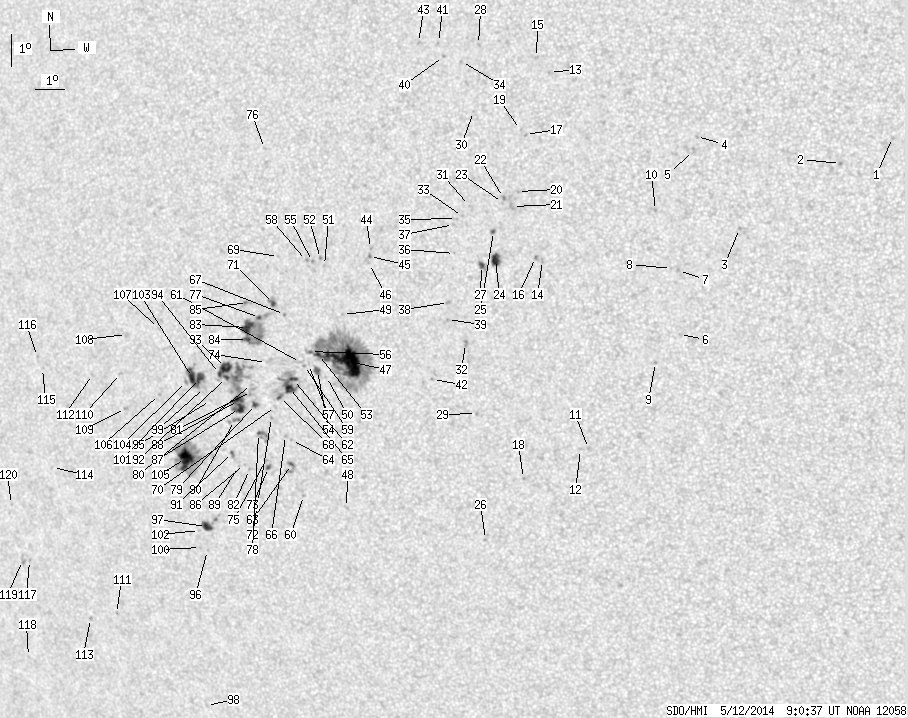

back to the solar disc SDO HMI 2014-05-12 09:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.77 | -7.92 | 247.48 | -9.97 | 116.90 | 0.1931 | 610.0 | 493.2 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -8.69 | 245.84 | -11.61 | 116.85 | 0.2240 | 954.0 | 746.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -10.63 | 242.57 | -14.88 | 118.14 | 0.2874 | 972.0 | 801.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -7.81 | 241.33 | -16.12 | 107.43 | 0.2895 | 899.0 | 750.2 | |
| 0.00 | 2.78 | 0.00 | 1.44 | -8.23 | 241.22 | -16.23 | 108.72 | 0.2934 | 866.0 | 739.0 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -13.85 | 240.43 | -17.02 | 123.90 | 0.3439 | 774.0 | 642.5 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -11.89 | 240.54 | -16.91 | 118.90 | 0.3266 | 820.0 | 613.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.82 | 240.31 | -17.13 | 118.43 | 0.3293 | 750.0 | 489.0 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -14.71 | 239.57 | -17.87 | 124.73 | 0.3628 | 837.0 | 647.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -10.04 | 239.91 | -17.54 | 112.91 | 0.3236 | 904.0 | 762.1 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.34 | 237.07 | -20.38 | 127.08 | 0.4184 | 718.0 | 580.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -17.36 | 236.79 | -20.65 | 126.79 | 0.4221 | 619.0 | 480.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -5.78 | 236.68 | -20.76 | 98.45 | 0.3581 | 809.0 | 684.5 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -11.50 | 236.11 | -21.34 | 113.06 | 0.3892 | 861.0 | 742.2 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -5.32 | 236.28 | -21.17 | 97.05 | 0.3639 | 835.0 | 650.3 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -11.40 | 235.88 | -21.56 | 112.63 | 0.3920 | 936.0 | 850.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -7.65 | 235.81 | -21.64 | 103.12 | 0.3768 | 902.0 | 740.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.23 | 234.73 | -22.72 | 126.06 | 0.4556 | 723.0 | 640.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -7.50 | 235.65 | -21.79 | 102.64 | 0.3788 | 777.0 | 635.1 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -9.38 | 235.44 | -22.01 | 107.32 | 0.3889 | 730.0 | 598.2 | |
| 0.00 | 3.23 | 0.00 | 1.74 | -9.83 | 235.24 | -22.20 | 108.31 | 0.3939 | 718.0 | 762.1 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -9.55 | 234.96 | -22.48 | 107.44 | 0.3970 | 732.0 | 712.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -9.70 | 234.92 | -22.53 | 107.78 | 0.3983 | 586.0 | 548.7 | |
| 6.64 | 9.33 | 3.61 | 5.07 | -11.44 | 234.55 | -22.90 | 111.63 | 0.4120 | 1064.0 | 792.7 | |
| 0.81 | 2.06 | 0.44 | 1.12 | -10.58 | 234.55 | -22.90 | 109.63 | 0.4078 | 925.1 | 738.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -20.13 | 233.11 | -24.34 | 127.72 | 0.4912 | 687.0 | 591.1 | |
| 1.79 | 4.66 | 0.98 | 2.54 | -11.61 | 234.06 | -23.39 | 111.66 | 0.4201 | 728.5 | 334.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -4.89 | 234.39 | -23.06 | 95.50 | 0.3937 | 841.0 | 682.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -16.17 | 233.38 | -24.06 | 120.72 | 0.4574 | 767.0 | 673.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -6.92 | 234.13 | -23.32 | 100.52 | 0.4013 | 614.0 | 513.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -9.77 | 233.81 | -23.64 | 107.25 | 0.4155 | 613.0 | 517.7 | |
| 0.00 | 2.42 | 0.00 | 1.34 | -14.00 | 233.27 | -24.17 | 116.21 | 0.4447 | 874.0 | 896.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.10 | 233.55 | -23.90 | 107.86 | 0.4208 | 659.0 | 556.3 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -5.39 | 233.80 | -23.64 | 96.65 | 0.4036 | 728.0 | 540.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -10.16 | 233.34 | -24.10 | 107.86 | 0.4241 | 595.0 | 470.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -11.23 | 233.18 | -24.26 | 110.17 | 0.4312 | 688.0 | 577.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.34 | 233.23 | -24.22 | 108.20 | 0.4266 | 552.0 | 433.9 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -12.72 | 232.83 | -24.62 | 113.18 | 0.4438 | 969.0 | 747.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -13.24 | 232.74 | -24.71 | 114.21 | 0.4479 | 860.0 | 758.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.23 | 233.21 | -24.23 | 96.13 | 0.4128 | 772.0 | 639.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -4.80 | 233.06 | -24.38 | 95.07 | 0.4147 | 603.0 | 552.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -15.08 | 232.00 | -25.44 | 117.36 | 0.4690 | 691.0 | 589.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -4.78 | 232.39 | -25.05 | 94.94 | 0.4253 | 699.0 | 580.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -11.01 | 230.32 | -27.12 | 107.99 | 0.4725 | -828.0 | -669.9 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -11.25 | 230.26 | -27.18 | 108.46 | 0.4743 | -1048.0 | -872.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -11.46 | 230.24 | -27.21 | 108.89 | 0.4755 | -679.0 | -536.6 | |
| 42.87 | 218.13 | 24.58 | 125.12 | -14.46 | 229.10 | -28.35 | 114.04 | 0.5055 | 1118.7 | 347.6 | |
| 0.00 | 2.06 | 0.00 | 1.21 | -19.00 | 228.30 | -29.14 | 121.51 | 0.5422 | 633.0 | 527.0 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -13.00 | 229.11 | -28.33 | 111.30 | 0.4983 | 542.0 | 382.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -14.90 | 228.28 | -29.16 | 114.34 | 0.5189 | 230.0 | 290.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -11.49 | 228.66 | -28.79 | 108.11 | 0.4985 | -701.0 | -633.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -11.27 | 228.54 | -28.90 | 107.63 | 0.4994 | -880.0 | -727.7 | |
| 1.44 | -47.00 | 0.83 | -47.00 | -14.21 | 228.10 | -29.35 | 112.97 | 0.5181 | 663.2 | 999999 | |
| 2.51 | 4.93 | 1.46 | 2.86 | -14.71 | 227.99 | -29.46 | 113.80 | 0.5220 | 696.1 | 443.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -11.35 | 228.25 | -29.19 | 107.65 | 0.5039 | -831.0 | -693.9 | |
| 0.54 | -47.00 | 0.31 | -47.00 | -14.11 | 227.82 | -29.62 | 112.63 | 0.5214 | 394.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -14.51 | 227.69 | -29.75 | 113.28 | 0.5251 | 473.0 | 286.6 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -11.32 | 228.04 | -29.40 | 107.49 | 0.5068 | -768.0 | -660.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -14.54 | 227.54 | -29.90 | 113.24 | 0.5272 | 470.0 | 351.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -18.58 | 226.80 | -30.65 | 119.73 | 0.5586 | 708.0 | 580.2 | |
| 0.00 | 1.61 | 0.00 | 0.94 | -14.44 | 227.41 | -30.03 | 112.99 | 0.5286 | -172.0 | -57.2 | |
| 2.96 | 37.94 | 1.73 | 22.28 | -14.96 | 227.08 | -30.37 | 113.72 | 0.5356 | 692.3 | 59.7 | |
| 1.08 | 7.09 | 0.64 | 4.22 | -17.60 | 226.54 | -30.90 | 117.93 | 0.5562 | 861.9 | 647.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -16.85 | 226.68 | -30.76 | 116.76 | 0.5504 | -788.0 | -561.3 | |
| 7.98 | -62.00 | 4.69 | -62.00 | -15.21 | 226.89 | -30.55 | 114.04 | 0.5392 | 516.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -16.69 | 226.49 | -30.95 | 116.37 | 0.5520 | -651.0 | -562.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -12.95 | 227.05 | -30.40 | 110.08 | 0.5271 | -977.0 | -869.5 | |
| 1.17 | -62.00 | 0.69 | -62.00 | -15.51 | 226.48 | -30.97 | 114.32 | 0.5462 | 480.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.17 | 227.06 | -30.39 | 106.77 | 0.5203 | -610.0 | -502.9 | |
| 0.00 | 1.88 | 0.00 | 1.12 | -15.78 | 226.28 | -31.16 | 114.68 | 0.5502 | 201.0 | 314.5 | |
| 1.79 | 6.10 | 1.05 | 3.56 | -12.60 | 226.70 | -30.75 | 109.27 | 0.5306 | -1081.8 | -776.2 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -16.12 | 226.08 | -31.37 | 115.14 | 0.5545 | 587.0 | 458.2 | |
| 0.90 | 2.60 | 0.54 | 1.56 | -17.67 | 225.67 | -31.77 | 117.50 | 0.5678 | 678.1 | 576.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -14.41 | 226.18 | -31.27 | 112.24 | 0.5452 | -797.0 | -621.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -17.45 | 225.60 | -31.84 | 117.09 | 0.5675 | 536.0 | 475.2 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -7.87 | 226.89 | -30.55 | 100.40 | 0.5140 | -724.0 | -536.6 | |
| 0.99 | 51.57 | 0.58 | 30.42 | -13.02 | 226.13 | -31.31 | 109.75 | 0.5401 | -945.1 | -626.3 | |
| 0.63 | 8.25 | 0.38 | 4.94 | -16.60 | 225.51 | -31.94 | 115.62 | 0.5644 | 584.4 | 654.2 | |
| 1.79 | 3.41 | 1.07 | 2.03 | -15.70 | 225.56 | -31.89 | 114.13 | 0.5594 | -814.0 | -610.3 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -15.07 | 225.52 | -31.93 | 113.05 | 0.5571 | -233.0 | -210.6 | |
| 0.00 | 5.20 | 0.00 | 3.10 | -15.29 | 225.48 | -31.96 | 113.40 | 0.5585 | -449.0 | -536.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -17.71 | 224.95 | -32.50 | 117.13 | 0.5772 | -780.0 | -615.8 | |
| 9.96 | -77.00 | 5.89 | -77.00 | -13.31 | 225.65 | -31.79 | 110.05 | 0.5479 | -981.3 | 999999 | |
| 2.96 | -77.00 | 1.75 | -77.00 | -13.68 | 225.60 | -31.85 | 110.67 | 0.5501 | -943.4 | 999999 | |
| 0.00 | 3.05 | 0.00 | 1.80 | -12.55 | 225.76 | -31.68 | 108.73 | 0.5435 | -852.0 | -678.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -17.55 | 224.79 | -32.65 | 116.77 | 0.5784 | -676.0 | -619.5 | |
| 7.71 | 81.89 | 4.63 | 49.07 | -15.81 | 224.94 | -32.50 | 113.97 | 0.5680 | -877.3 | -645.8 | |
| 6.37 | -87.00 | 3.82 | -87.00 | -15.56 | 224.95 | -32.50 | 113.56 | 0.5668 | -942.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.61 | 224.55 | -32.89 | 116.72 | 0.5817 | -730.0 | -553.4 | |
| 0.00 | 4.57 | 0.00 | 2.76 | -16.17 | 224.69 | -32.76 | 114.45 | 0.5730 | -658.0 | -593.2 | |
| 0.72 | 2.87 | 0.44 | 1.74 | -17.17 | 224.42 | -33.03 | 115.93 | 0.5812 | -832.0 | -750.2 | |
| 1.97 | -87.00 | 1.19 | -87.00 | -14.83 | 224.63 | -32.82 | 112.17 | 0.5679 | -977.0 | 999999 | |
| 8.97 | -87.00 | 5.38 | -87.00 | -14.52 | 224.65 | -32.80 | 111.66 | 0.5664 | -964.5 | 999999 | |
| 1.79 | -87.00 | 1.08 | -87.00 | -14.70 | 224.39 | -33.05 | 111.84 | 0.5705 | -799.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -15.53 | 223.90 | -33.54 | 112.97 | 0.5804 | -457.0 | -306.2 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -20.21 | 222.75 | -34.69 | 119.73 | 0.6173 | -720.0 | -639.0 | |
| 5.92 | 12.47 | 3.70 | 7.77 | -19.46 | 222.90 | -34.54 | 118.67 | 0.6116 | -915.8 | -647.1 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -25.18 | 221.22 | -36.23 | 125.89 | 0.6625 | 463.0 | 316.5 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -15.12 | 223.75 | -33.69 | 112.22 | 0.5807 | -739.0 | -620.0 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -20.11 | 222.50 | -34.94 | 119.43 | 0.6198 | -542.0 | -520.6 | |
| 6.01 | 23.95 | 3.65 | 14.58 | -14.83 | 223.62 | -33.83 | 111.69 | 0.5814 | -1048.1 | -674.1 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -19.57 | 222.60 | -34.85 | 118.68 | 0.6159 | -649.0 | -483.8 | |
| 9.42 | -101.00 | 5.74 | -101.00 | -14.80 | 223.36 | -34.09 | 111.51 | 0.5846 | -858.2 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.37 | -14.91 | 223.11 | -34.34 | 111.58 | 0.5884 | -511.0 | -460.0 | |
| 19.64 | 68.34 | 12.20 | 42.39 | -17.30 | 222.59 | -34.86 | 115.16 | 0.6051 | 1016.5 | 372.2 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -15.28 | 222.00 | -35.44 | 111.69 | 0.6042 | -644.0 | -510.3 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -13.25 | 222.33 | -35.11 | 108.52 | 0.5926 | -666.0 | -510.7 | |
| 0.00 | 2.51 | 0.00 | 1.57 | -13.40 | 221.08 | -36.37 | 108.30 | 0.6098 | -130.0 | -226.6 | |
| 0.00 | 1.97 | 0.00 | 1.25 | -15.68 | 220.60 | -36.85 | 111.71 | 0.6237 | -692.0 | -577.5 | |
| 0.00 | 1.52 | 0.00 | 0.96 | -14.59 | 220.62 | -36.82 | 110.02 | 0.6196 | -640.0 | -521.7 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -22.10 | 218.50 | -38.95 | 120.16 | 0.6759 | -678.0 | -509.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -14.59 | 219.52 | -37.93 | 109.61 | 0.6337 | -523.0 | -501.8 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -22.23 | 217.35 | -40.10 | 119.77 | 0.6892 | -592.0 | -501.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -17.41 | 217.22 | -40.22 | 112.96 | 0.6715 | -389.0 | -381.9 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -14.34 | 217.55 | -39.89 | 108.57 | 0.6578 | -671.0 | -465.7 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -13.96 | 217.43 | -40.02 | 107.97 | 0.6583 | -600.0 | -474.2 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -20.30 | 215.37 | -42.08 | 116.28 | 0.7032 | -763.0 | -682.8 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -23.35 | 214.19 | -43.26 | 119.86 | 0.7278 | -438.0 | -358.9 | |
| 0.00 | 4.04 | 0.00 | 2.82 | -20.29 | 215.07 | -42.38 | 116.14 | 0.7066 | -446.0 | -414.4 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -18.51 | 215.16 | -42.28 | 113.75 | 0.6993 | -526.0 | -431.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
