SDO HMI 2014-05-12 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.01 | 169.32 | 34.82 | 186.78 | -23.89 | 194.28 | -62.07 | 115.35 | 0.8950 | 438.0 | 122.3 | |
|
previous
or next observation for the same group /

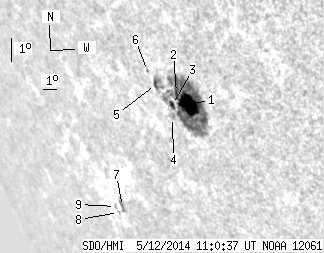

back to the solar disc SDO HMI 2014-05-12 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.28 | 148.15 | 28.40 | 160.53 | -23.83 | 194.96 | -61.39 | 115.38 | 0.8906 | 671.8 | 204.5 | |
| 1.43 | -1.00 | 1.57 | -1.00 | -23.42 | 194.46 | -61.89 | 114.83 | 0.8937 | 196.8 | 999999 | |
| 2.33 | -1.00 | 2.61 | -1.00 | -23.79 | 193.87 | -62.48 | 115.14 | 0.8983 | 138.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.93 | -24.20 | 193.51 | -62.84 | 115.54 | 0.9013 | -240.0 | -206.1 | |
| 1.97 | 12.47 | 2.24 | 14.10 | -23.10 | 193.21 | -63.14 | 114.29 | 0.9021 | -418.5 | -312.2 | |
| 0.00 | 1.17 | 0.00 | 1.33 | -22.63 | 193.02 | -63.33 | 113.75 | 0.9029 | -173.0 | -222.9 | |
| 0.00 | 4.30 | 0.00 | 6.51 | -26.84 | 186.33 | -70.02 | 117.43 | 0.9461 | -544.0 | -424.7 | |
| 0.00 | 0.45 | 0.00 | 0.70 | -27.01 | 185.68 | -70.67 | 117.54 | 0.9495 | -188.0 | -176.0 | |
| 0.00 | 1.08 | 0.00 | 1.68 | -26.81 | 185.66 | -70.69 | 117.32 | 0.9494 | -224.0 | -171.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
