SDO HMI 2014-05-12 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.31 | 158.82 | 32.39 | 171.19 | -23.89 | 194.53 | -61.27 | 115.47 | 0.8896 | 473.4 | 168.8 | |
|
previous
or next observation for the same group /

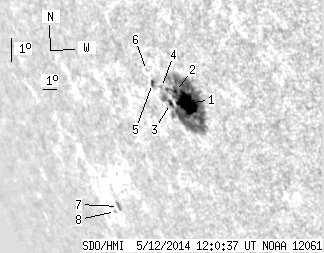

back to the solar disc SDO HMI 2014-05-12 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.56 | 150.65 | 27.17 | 160.59 | -23.83 | 194.98 | -60.82 | 115.47 | 0.8866 | 684.3 | 205.5 | |
| 1.52 | -1.00 | 1.64 | -1.00 | -23.41 | 194.48 | -61.32 | 114.92 | 0.8896 | 225.1 | 999999 | |
| 1.88 | -1.00 | 2.07 | -1.00 | -23.78 | 193.83 | -61.97 | 115.22 | 0.8947 | 149.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.29 | -23.24 | 193.64 | -62.16 | 114.60 | 0.8954 | -90.0 | -154.7 | |
| 1.35 | 2.69 | 1.51 | 3.02 | -23.09 | 193.12 | -62.68 | 114.35 | 0.8989 | -507.3 | -279.9 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -22.66 | 193.04 | -62.76 | 113.86 | 0.8990 | -343.0 | -250.0 | |
| 0.00 | 3.41 | 0.00 | 5.04 | -26.86 | 186.26 | -69.54 | 117.50 | 0.9438 | -581.0 | -452.4 | |
| 0.00 | 0.63 | 0.00 | 0.95 | -27.01 | 185.76 | -70.05 | 117.60 | 0.9464 | -265.0 | -262.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
