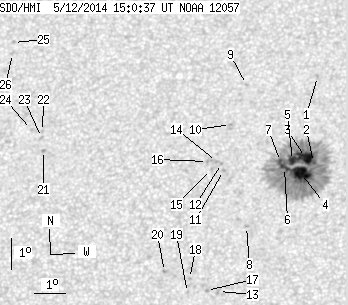

SDO HMI 2014-05-12 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.88 | 327.48 | 24.52 | 171.30 | 14.95 | 248.45 | -5.70 | 17.27 | 0.3239 | -292.6 | -325.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-12 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.81 | 17.80 | 249.30 | -4.85 | 12.80 | 0.3647 | 797.0 | 651.6 | |
| 1.34 | 300.50 | 0.70 | 157.04 | 15.03 | 249.24 | -4.91 | 14.98 | 0.3210 | -937.2 | -432.3 | |
| 15.60 | -2.00 | 8.17 | -2.00 | 15.20 | 248.99 | -5.16 | 15.59 | 0.3246 | -1122.5 | 999999 | |
| 17.66 | -2.00 | 9.22 | -2.00 | 14.69 | 248.87 | -5.28 | 16.37 | 0.3171 | -1435.1 | 999999 | |
| 6.19 | -2.00 | 3.24 | -2.00 | 15.10 | 248.58 | -5.57 | 16.83 | 0.3250 | -1055.7 | 999999 | |
| 4.03 | -2.00 | 2.11 | -2.00 | 14.88 | 248.33 | -5.82 | 17.75 | 0.3228 | -1068.1 | 999999 | |
| 2.06 | -2.00 | 1.08 | -2.00 | 15.07 | 248.20 | -5.95 | 17.93 | 0.3265 | -866.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 13.02 | 247.19 | -6.96 | 23.24 | 0.3005 | 750.0 | 585.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.55 | 247.04 | -7.11 | 18.63 | 0.3709 | 794.0 | 547.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.27 | 246.58 | -7.57 | 21.04 | 0.3538 | 803.0 | 680.6 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 14.80 | 246.41 | -7.74 | 23.15 | 0.3326 | 966.0 | 716.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.02 | 246.34 | -7.81 | 23.06 | 0.3365 | 960.0 | 848.7 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 10.99 | 246.37 | -7.78 | 28.92 | 0.2761 | 828.0 | 708.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.09 | 246.18 | -7.97 | 23.41 | 0.3385 | 923.0 | 618.2 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 14.84 | 246.03 | -8.12 | 24.11 | 0.3357 | 870.0 | 655.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.09 | 245.89 | -8.26 | 24.14 | 0.3404 | 729.0 | 581.2 | |
| 0.00 | 1.52 | 0.00 | 0.79 | 11.03 | 245.99 | -8.16 | 30.01 | 0.2797 | 873.0 | 752.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.41 | 245.45 | -8.70 | 30.92 | 0.2897 | 903.0 | 748.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.97 | 245.40 | -8.75 | 31.87 | 0.2840 | 776.0 | 638.0 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 11.63 | 244.66 | -9.49 | 32.73 | 0.2999 | 1000.0 | 800.8 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 15.50 | 240.63 | -13.52 | 35.55 | 0.3891 | 930.0 | 774.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.11 | 240.55 | -13.60 | 34.77 | 0.3977 | 737.0 | 642.5 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 15.92 | 240.54 | -13.61 | 35.10 | 0.3954 | 960.0 | 711.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.18 | 240.19 | -13.96 | 35.37 | 0.4019 | 674.0 | 536.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 19.01 | 239.38 | -14.77 | 32.92 | 0.4455 | 685.0 | 604.5 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 18.65 | 239.37 | -14.78 | 33.39 | 0.4409 | 682.0 | 597.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
