SDO HMI 2014-05-12 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.63 | 172.29 | 32.15 | 171.09 | -23.87 | 194.62 | -58.42 | 115.96 | 0.8682 | 584.5 | 201.1 | |
|
previous
or next observation for the same group /

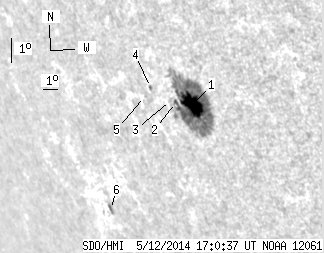

back to the solar disc SDO HMI 2014-05-12 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.84 | 164.04 | 30.32 | 161.54 | -23.80 | 194.95 | -58.09 | 115.95 | 0.8658 | 743.9 | 238.2 | |
| 1.34 | -1.00 | 1.36 | -1.00 | -23.69 | 193.95 | -59.10 | 115.63 | 0.8735 | 153.4 | 999999 | |
| 0.00 | 2.24 | 0.00 | 2.28 | -23.61 | 193.68 | -59.37 | 115.49 | 0.8754 | -147.0 | -121.4 | |
| 0.45 | 1.61 | 0.47 | 1.69 | -23.14 | 192.71 | -60.34 | 114.79 | 0.8821 | -328.2 | -284.3 | |
| 0.00 | 0.99 | 0.00 | 1.05 | -23.41 | 192.09 | -60.95 | 114.99 | 0.8870 | -452.0 | -305.9 | |
| 0.00 | 3.41 | 0.00 | 4.53 | -26.90 | 186.08 | -66.96 | 117.86 | 0.9299 | -552.0 | -453.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
