SDO HMI 2014-05-12 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143.48 | 728.27 | 79.13 | 400.06 | -14.53 | 227.61 | -22.66 | 118.98 | 0.4270 | 174.0 | 77.0 | |
|
previous
or next observation for the same group /

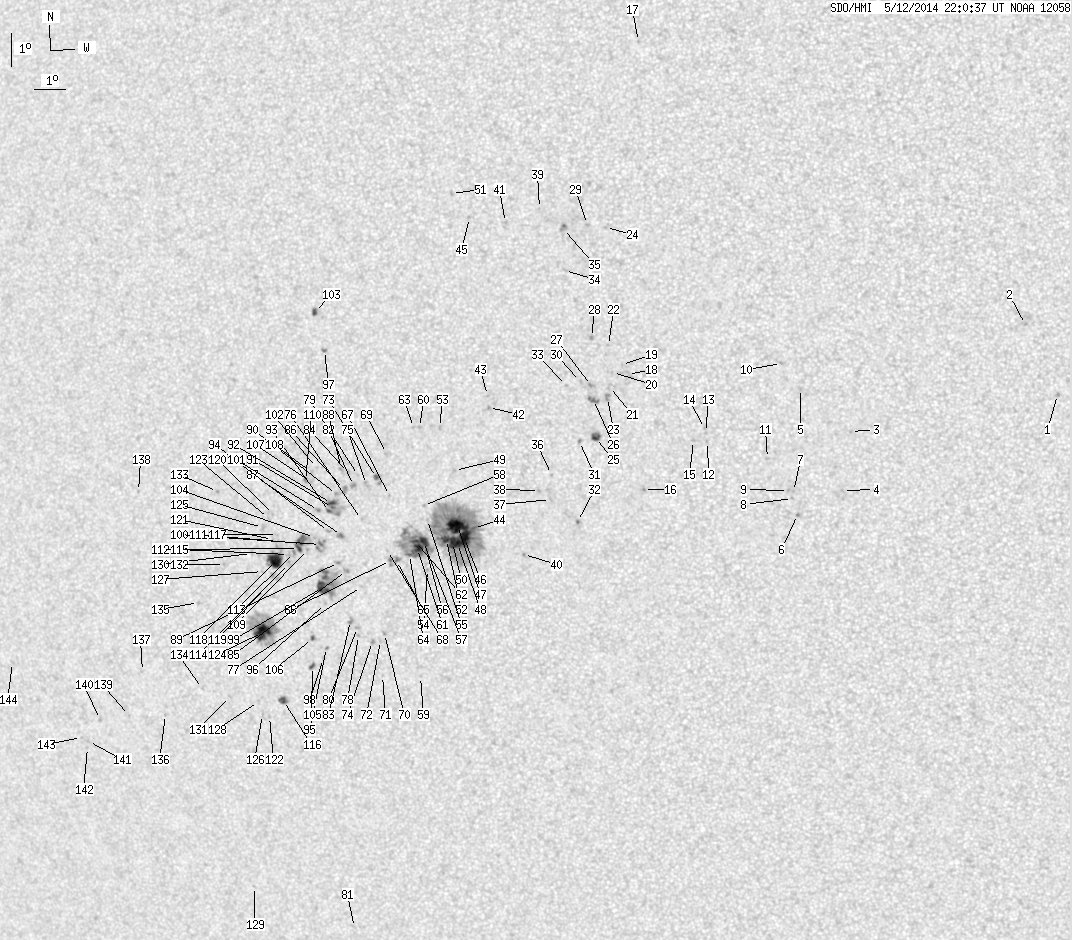

back to the solar disc SDO HMI 2014-05-12 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.90 | -10.31 | 248.94 | -1.33 | 169.90 | 0.1310 | 779.0 | 686.6 | |
| 0.00 | 1.34 | 0.00 | 0.67 | -8.18 | 247.97 | -2.30 | 156.50 | 0.1001 | 1010.0 | 778.7 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -11.41 | 242.52 | -7.75 | 138.18 | 0.1992 | 757.0 | 598.8 | |
| 0.00 | 1.43 | 0.00 | 0.73 | -13.22 | 242.21 | -8.06 | 142.66 | 0.2261 | 791.0 | 633.7 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -10.08 | 241.00 | -9.27 | 128.24 | 0.2029 | 839.0 | 601.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.95 | 240.76 | -9.51 | 140.08 | 0.2510 | 857.0 | 772.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.24 | 240.67 | -9.60 | 137.85 | 0.2431 | 799.0 | 676.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.45 | 240.63 | -9.65 | 138.34 | 0.2463 | 741.0 | 601.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.20 | 240.51 | -9.76 | 137.31 | 0.2445 | 778.0 | 596.1 | |
| 0.00 | 1.43 | 0.00 | 0.73 | -9.32 | 240.43 | -9.84 | 123.54 | 0.2033 | 906.0 | 757.6 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -12.21 | 239.89 | -10.38 | 132.61 | 0.2404 | 806.0 | 604.6 | |
| 0.00 | 1.34 | 0.00 | 0.69 | -11.67 | 238.02 | -12.25 | 126.36 | 0.2592 | 691.0 | 627.3 | |
| 0.00 | 1.34 | 0.00 | 0.69 | -11.40 | 237.97 | -12.30 | 125.36 | 0.2573 | 559.0 | 490.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.27 | 237.94 | -12.33 | 124.91 | 0.2565 | 884.0 | 657.9 | |
| 0.00 | 1.52 | 0.00 | 0.78 | -11.64 | 237.58 | -12.69 | 125.31 | 0.2649 | 781.0 | 531.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.12 | 235.90 | -14.37 | 126.42 | 0.3017 | 1137.0 | 949.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 0.50 | 236.15 | -14.12 | 76.54 | 0.2520 | 724.0 | 590.8 | |
| 0.00 | 6.64 | 0.00 | 3.42 | -9.59 | 235.58 | -14.69 | 115.18 | 0.2775 | 418.0 | 624.7 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -9.29 | 235.40 | -14.87 | 113.91 | 0.2782 | 701.0 | 573.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.53 | 235.11 | -15.16 | 114.30 | 0.2843 | 575.0 | 410.9 | |
| 0.00 | 3.05 | 0.00 | 1.58 | -9.95 | 234.99 | -15.28 | 115.51 | 0.2889 | 433.0 | 537.6 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -8.70 | 235.02 | -15.25 | 111.45 | 0.2807 | -542.0 | -397.3 | |
| 0.00 | 4.12 | 0.00 | 2.14 | -10.29 | 234.91 | -15.36 | 116.45 | 0.2924 | 896.0 | 821.7 | |
| 0.00 | 1.34 | 0.00 | 0.69 | -5.12 | 235.04 | -15.23 | 98.66 | 0.2658 | 890.0 | 571.2 | |
| 4.30 | 7.08 | 2.24 | 3.69 | -11.50 | 234.46 | -15.81 | 119.46 | 0.3080 | 1070.4 | 780.3 | |
| 0.00 | 6.28 | 0.00 | 3.26 | -10.34 | 234.46 | -15.81 | 116.00 | 0.2996 | 1104.0 | 854.0 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -9.91 | 234.42 | -15.85 | 114.62 | 0.2973 | 1023.0 | 866.1 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -8.45 | 234.49 | -15.78 | 110.01 | 0.2876 | 499.0 | 149.2 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -5.02 | 234.48 | -15.79 | 98.03 | 0.2750 | 846.0 | 707.4 | |
| 0.00 | 1.43 | 0.00 | 0.75 | -9.78 | 234.07 | -16.20 | 113.79 | 0.3018 | 648.0 | 495.6 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -11.62 | 233.94 | -16.33 | 119.03 | 0.3165 | 848.0 | 669.6 | |
| 0.36 | 1.34 | 0.19 | 0.71 | -14.07 | 233.70 | -16.57 | 125.21 | 0.3400 | 1006.8 | 832.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.90 | 233.62 | -16.65 | 113.60 | 0.3094 | 747.0 | 502.9 | |
| 0.00 | 2.42 | 0.00 | 1.25 | -6.40 | 233.71 | -16.56 | 102.45 | 0.2914 | 533.0 | 477.0 | |
| 0.00 | 4.48 | 0.00 | 2.32 | -5.13 | 233.72 | -16.55 | 98.09 | 0.2879 | 823.0 | 779.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -12.61 | 232.96 | -17.31 | 120.40 | 0.3381 | 716.0 | 615.1 | |
| 0.00 | 1.61 | 0.00 | 0.85 | -13.38 | 232.88 | -17.40 | 122.26 | 0.3454 | 822.0 | 641.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -13.10 | 232.54 | -17.73 | 121.08 | 0.3479 | 647.0 | 620.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -4.51 | 232.97 | -17.30 | 95.74 | 0.2993 | 623.0 | 501.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -15.07 | 231.85 | -18.42 | 124.86 | 0.3735 | 763.0 | 628.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.92 | 231.87 | -18.40 | 96.74 | 0.3180 | 798.0 | 678.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.53 | 231.06 | -19.21 | 112.63 | 0.3521 | -907.0 | -795.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.16 | 231.05 | -19.22 | 111.64 | 0.3502 | -801.0 | -648.5 | |
| 1.79 | 308.80 | 0.96 | 166.96 | -14.23 | 230.27 | -20.00 | 120.95 | 0.3883 | 1055.2 | 391.6 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -4.75 | 230.72 | -19.55 | 95.90 | 0.3367 | 594.0 | 494.3 | |
| 15.33 | -44.00 | 8.26 | -44.00 | -14.54 | 229.94 | -20.33 | 121.25 | 0.3951 | 1282.9 | 999999 | |
| 22.60 | -44.00 | 12.18 | -44.00 | -14.13 | 229.74 | -20.53 | 120.12 | 0.3948 | 1326.4 | 999999 | |
| 4.84 | -44.00 | 2.61 | -44.00 | -14.69 | 229.69 | -20.58 | 121.30 | 0.3997 | 1102.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -12.44 | 229.80 | -20.48 | 116.21 | 0.3824 | -851.0 | -629.5 | |
| 5.20 | -44.00 | 2.81 | -44.00 | -14.65 | 229.52 | -20.75 | 121.04 | 0.4017 | 963.9 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -4.01 | 230.16 | -20.11 | 93.64 | 0.3452 | 769.0 | 566.8 | |
| 4.93 | -44.00 | 2.67 | -44.00 | -14.56 | 229.33 | -20.94 | 120.61 | 0.4036 | 977.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -11.11 | 229.41 | -20.87 | 112.60 | 0.3802 | -843.0 | -805.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.47 | 228.60 | -21.67 | 121.78 | 0.4205 | 839.0 | 714.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.93 | 228.76 | -21.51 | 118.60 | 0.4071 | 137.0 | 11.6 | |
| 1.61 | -44.00 | 0.88 | -44.00 | -14.88 | 228.63 | -21.64 | 120.56 | 0.4157 | 765.0 | 999999 | |
| 6.90 | -44.00 | 3.76 | -44.00 | -14.60 | 228.56 | -21.72 | 119.88 | 0.4147 | 1126.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -13.49 | 228.67 | -21.60 | 117.54 | 0.4055 | 724.0 | 575.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -18.81 | 227.93 | -22.34 | 127.60 | 0.4560 | 776.0 | 534.2 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -11.10 | 228.74 | -21.53 | 111.99 | 0.3900 | -663.0 | -503.4 | |
| 8.61 | -44.00 | 4.69 | -44.00 | -14.81 | 228.33 | -21.94 | 120.10 | 0.4193 | 951.5 | 999999 | |
| 2.33 | -44.00 | 1.27 | -44.00 | -14.60 | 228.29 | -21.98 | 119.59 | 0.4184 | 795.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -11.09 | 228.55 | -21.73 | 111.82 | 0.3929 | -771.0 | -606.9 | |
| 0.99 | -44.00 | 0.54 | -44.00 | -14.99 | 228.04 | -22.23 | 120.18 | 0.4246 | 514.6 | 999999 | |
| 0.81 | 7.98 | 0.44 | 4.38 | -15.17 | 227.58 | -22.69 | 120.09 | 0.4321 | 809.8 | 456.0 | |
| 0.54 | -65.00 | 0.30 | -65.00 | -15.17 | 227.37 | -22.90 | 119.88 | 0.4349 | 643.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.16 | 227.56 | -22.71 | 115.75 | 0.4192 | -632.0 | -500.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.86 | 227.31 | -22.96 | 119.16 | 0.4336 | 466.0 | 379.9 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -11.87 | 227.58 | -22.69 | 112.86 | 0.4115 | -601.0 | -535.9 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -17.43 | 226.88 | -23.39 | 123.88 | 0.4581 | 933.0 | 725.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -18.75 | 226.62 | -23.65 | 126.05 | 0.4718 | 604.0 | 407.3 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -17.65 | 226.71 | -23.56 | 124.12 | 0.4619 | 775.0 | 652.5 | |
| 1.26 | 6.19 | 0.69 | 3.38 | -12.60 | 227.17 | -23.10 | 114.17 | 0.4214 | -1073.9 | -771.9 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -17.67 | 226.43 | -23.84 | 123.88 | 0.4658 | 899.0 | 650.8 | |
| 0.00 | 3.14 | 0.00 | 1.72 | -12.81 | 226.81 | -23.46 | 114.34 | 0.4278 | -707.0 | -638.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -13.88 | 226.53 | -23.74 | 116.40 | 0.4382 | -764.0 | -657.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -15.95 | 226.28 | -23.99 | 120.41 | 0.4551 | 579.0 | 446.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.48 | 225.97 | -24.30 | 123.05 | 0.4702 | 547.0 | 466.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -12.53 | 226.57 | -23.70 | 113.52 | 0.4297 | -743.0 | -616.9 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -17.23 | 225.97 | -24.30 | 122.58 | 0.4683 | 754.0 | 605.7 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -26.84 | 224.00 | -26.27 | 136.06 | 0.5713 | 234.0 | 264.1 | |
| 0.00 | 3.05 | 0.00 | 1.68 | -12.83 | 226.37 | -23.90 | 114.02 | 0.4343 | -1014.0 | -855.7 | |
| 0.00 | 3.59 | 0.00 | 2.01 | -17.00 | 225.76 | -24.51 | 121.95 | 0.4695 | 665.0 | 506.1 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -12.43 | 226.24 | -24.03 | 113.05 | 0.4340 | -830.0 | -621.7 | |
| 0.00 | 2.87 | 0.00 | 1.60 | -15.45 | 225.83 | -24.44 | 118.99 | 0.4578 | -1006.0 | -814.8 | |
| 0.00 | 3.95 | 0.00 | 2.17 | -12.95 | 226.05 | -24.22 | 114.02 | 0.4395 | -1017.0 | -807.2 | |
| 0.63 | 3.68 | 0.35 | 2.04 | -14.36 | 225.79 | -24.48 | 116.77 | 0.4515 | -1159.9 | -945.9 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -12.33 | 226.01 | -24.26 | 112.66 | 0.4368 | -858.0 | -717.5 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -15.19 | 225.59 | -24.68 | 118.27 | 0.4595 | -965.0 | -706.5 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -13.09 | 225.76 | -24.51 | 114.11 | 0.4445 | -968.0 | -883.0 | |
| 0.81 | 21.16 | 0.45 | 11.72 | -13.49 | 225.58 | -24.69 | 114.80 | 0.4493 | -1118.9 | -736.5 | |
| 2.96 | -91.00 | 1.64 | -91.00 | -13.37 | 225.56 | -24.71 | 114.53 | 0.4489 | -1140.4 | 999999 | |
| 1.26 | -91.00 | 0.70 | -91.00 | -13.61 | 225.47 | -24.80 | 114.96 | 0.4516 | -935.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -14.23 | 225.36 | -24.91 | 116.14 | 0.4567 | -851.0 | -639.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -17.83 | 224.80 | -25.47 | 122.59 | 0.4879 | -832.0 | -810.7 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.45 | 224.97 | -25.31 | 120.18 | 0.4762 | -681.0 | -528.7 | |
| 0.45 | 2.06 | 0.25 | 1.13 | -8.68 | 225.75 | -24.52 | 104.32 | 0.4252 | 909.8 | 730.9 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -18.17 | 224.64 | -25.63 | 123.06 | 0.4924 | -864.0 | -694.1 | |
| 10.22 | 44.20 | 5.74 | 24.78 | -15.95 | 224.93 | -25.34 | 119.20 | 0.4733 | -908.7 | -599.3 | |
| 0.99 | 9.68 | 0.55 | 5.41 | -14.62 | 225.04 | -25.24 | 116.67 | 0.4636 | -1049.9 | -803.2 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -13.57 | 225.09 | -25.18 | 114.59 | 0.4567 | -945.0 | -754.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.25 | 225.17 | -25.10 | 111.88 | 0.4486 | -675.0 | -456.4 | |
| 1.79 | 3.23 | 0.98 | 1.77 | -7.52 | 225.49 | -24.78 | 101.51 | 0.4258 | -926.3 | -751.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -14.40 | 224.86 | -25.42 | 116.09 | 0.4648 | -869.0 | -831.5 | |
| 1.61 | 2.78 | 0.92 | 1.59 | -18.41 | 224.21 | -26.06 | 123.10 | 0.4996 | -937.8 | -766.9 | |
| 0.99 | 2.78 | 0.56 | 1.58 | -17.54 | 224.35 | -25.92 | 121.65 | 0.4917 | -905.2 | -650.0 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -12.71 | 224.95 | -25.32 | 112.69 | 0.4541 | -838.0 | -739.2 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -12.40 | 224.98 | -25.29 | 112.07 | 0.4521 | -735.0 | -510.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -14.77 | 224.57 | -25.71 | 116.58 | 0.4709 | -842.0 | -705.7 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -12.64 | 224.75 | -25.52 | 112.41 | 0.4566 | -901.0 | -779.9 | |
| 1.17 | 16.77 | 0.65 | 9.41 | -14.58 | 224.38 | -25.89 | 116.07 | 0.4723 | -1085.8 | -846.3 | |
| 2.69 | -111.00 | 1.51 | -111.00 | -14.73 | 224.26 | -26.01 | 116.27 | 0.4750 | -944.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -14.85 | 224.10 | -26.17 | 116.38 | 0.4778 | -901.0 | -793.3 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -15.18 | 223.88 | -26.39 | 116.86 | 0.4828 | -672.0 | -669.3 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -14.91 | 223.88 | -26.39 | 116.33 | 0.4811 | -809.0 | -704.6 | |
| 3.68 | 5.65 | 2.13 | 3.28 | -19.46 | 222.98 | -27.29 | 123.83 | 0.5224 | -1040.0 | -791.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -14.28 | 223.58 | -26.69 | 114.89 | 0.4818 | -800.0 | -663.2 | |
| 14.79 | 25.37 | 8.39 | 14.39 | -15.08 | 223.40 | -26.87 | 116.30 | 0.4887 | -1043.0 | -685.5 | |
| 0.00 | 5.38 | 0.00 | 3.06 | -15.58 | 223.33 | -26.94 | 117.19 | 0.4925 | -477.0 | -515.3 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -13.66 | 223.52 | -26.75 | 113.63 | 0.4793 | -492.0 | -527.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -14.43 | 223.39 | -26.88 | 115.04 | 0.4853 | -658.0 | -507.3 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -19.95 | 222.38 | -27.89 | 124.14 | 0.5333 | -753.0 | -607.2 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -13.78 | 223.33 | -26.94 | 113.73 | 0.4826 | -734.0 | -632.2 | |
| 17.04 | 68.95 | 9.82 | 39.69 | -17.31 | 222.60 | -27.67 | 119.79 | 0.5128 | 1092.7 | 390.7 | |
| 0.00 | 2.87 | 0.00 | 1.63 | -14.05 | 223.09 | -27.19 | 114.10 | 0.4875 | -721.0 | -612.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -19.88 | 222.14 | -28.13 | 123.83 | 0.5358 | -772.0 | -615.8 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -15.41 | 222.90 | -27.37 | 116.55 | 0.4975 | -495.0 | -419.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -19.47 | 222.07 | -28.20 | 123.08 | 0.5338 | -487.0 | -426.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -25.40 | 220.55 | -29.72 | 130.92 | 0.5948 | 379.0 | 331.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -14.84 | 222.59 | -27.68 | 115.27 | 0.4986 | -519.0 | -421.8 | |
| 0.00 | 1.70 | 0.00 | 1.01 | -19.28 | 221.05 | -29.22 | 121.97 | 0.5453 | -704.0 | -488.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -15.16 | 221.58 | -28.69 | 115.17 | 0.5140 | -684.0 | -626.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -12.90 | 221.65 | -28.63 | 110.99 | 0.5022 | -815.0 | -756.5 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -19.01 | 220.11 | -30.17 | 120.81 | 0.5553 | -651.0 | -481.1 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -16.31 | 220.46 | -29.81 | 116.50 | 0.5352 | -725.0 | -574.6 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -19.79 | 218.55 | -31.72 | 120.99 | 0.5793 | -416.0 | -495.6 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -18.41 | 217.98 | -32.29 | 118.42 | 0.5785 | -347.0 | -400.7 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -12.83 | 218.82 | -31.46 | 109.40 | 0.5415 | -627.0 | -442.4 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -19.78 | 217.18 | -33.09 | 120.08 | 0.5960 | -119.0 | -230.6 | |
| 0.00 | 2.24 | 0.00 | 1.40 | -19.88 | 216.03 | -34.24 | 119.53 | 0.6104 | -723.0 | -501.2 | |
| 0.00 | 1.61 | 0.00 | 1.02 | -20.56 | 215.38 | -34.89 | 120.17 | 0.6217 | -581.0 | -482.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -20.75 | 215.29 | -34.98 | 120.40 | 0.6238 | -555.0 | -472.2 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -20.43 | 215.14 | -35.13 | 119.83 | 0.6239 | -474.0 | -381.7 | |
| 0.00 | 1.70 | 0.00 | 1.09 | -17.98 | 213.02 | -37.25 | 115.09 | 0.6380 | -628.0 | -494.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
