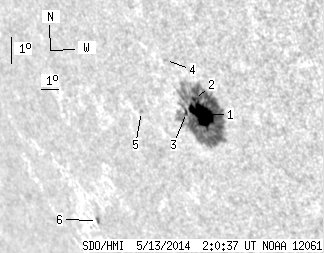

SDO HMI 2014-05-13 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.51 | 213.76 | 31.82 | 187.32 | -23.81 | 194.72 | -53.34 | 117.10 | 0.8262 | 704.9 | 231.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.46 | 207.31 | 29.14 | 180.83 | -23.80 | 194.95 | -53.11 | 117.14 | 0.8244 | 852.9 | 258.9 | |
| 1.70 | -1.00 | 1.49 | -1.00 | -23.30 | 194.80 | -53.26 | 116.51 | 0.8246 | 594.1 | 999999 | |
| 1.35 | -1.00 | 1.19 | -1.00 | -23.70 | 194.12 | -53.94 | 116.81 | 0.8315 | 82.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.58 | -22.00 | 193.93 | -54.13 | 114.76 | 0.8295 | -94.0 | -130.0 | |
| 0.00 | 1.88 | 0.00 | 1.78 | -23.56 | 191.58 | -56.48 | 116.05 | 0.8527 | -564.0 | -477.0 | |
| 0.00 | 2.78 | 0.00 | 3.13 | -26.95 | 185.95 | -62.11 | 118.70 | 0.9001 | -636.0 | -467.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
