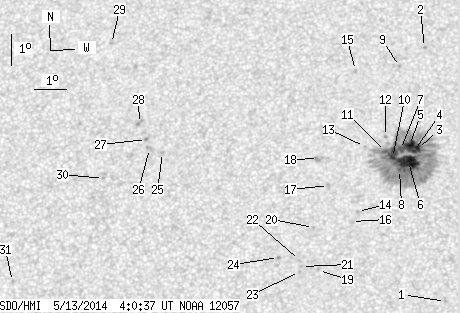

SDO HMI 2014-05-13 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.89 | 305.02 | 22.34 | 158.78 | 14.94 | 248.20 | 1.24 | 356.08 | 0.3099 | -314.5 | -320.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.40 | 249.90 | 2.94 | 347.62 | 0.2364 | 779.0 | 596.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.47 | 249.35 | 2.39 | 353.81 | 0.3679 | 743.0 | 631.1 | |
| 4.40 | 267.64 | 2.29 | 139.31 | 15.21 | 249.08 | 2.12 | 353.44 | 0.3142 | -1059.0 | -472.6 | |
| 2.42 | -3.00 | 1.26 | -3.00 | 15.12 | 248.96 | 2.00 | 353.79 | 0.3124 | -1243.4 | 999999 | |
| 9.42 | -3.00 | 4.91 | -3.00 | 15.31 | 248.83 | 1.87 | 354.24 | 0.3153 | -1130.2 | 999999 | |
| 20.01 | -3.00 | 10.41 | -3.00 | 14.80 | 248.80 | 1.84 | 354.18 | 0.3068 | -1387.7 | 999999 | |
| 3.14 | -3.00 | 1.64 | -3.00 | 15.18 | 248.55 | 1.59 | 355.07 | 0.3128 | -1101.9 | 999999 | |
| 0.90 | -3.00 | 0.47 | -3.00 | 14.54 | 248.51 | 1.55 | 355.00 | 0.3021 | -1144.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 17.85 | 248.54 | 1.58 | 355.76 | 0.3567 | 865.0 | 697.6 | |
| 1.70 | -3.00 | 0.89 | -3.00 | 14.93 | 248.30 | 1.34 | 355.79 | 0.3082 | -1247.7 | 999999 | |
| 0.90 | -3.00 | 0.47 | -3.00 | 15.12 | 248.08 | 1.12 | 356.52 | 0.3111 | -927.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.60 | 248.08 | 1.12 | 356.60 | 0.3191 | -654.0 | -448.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.28 | 247.42 | 0.46 | 358.58 | 0.3133 | -610.0 | -470.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 13.22 | 247.19 | 0.23 | 359.18 | 0.2788 | 793.0 | 618.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 17.72 | 247.14 | 0.18 | 359.51 | 0.3536 | 634.0 | 527.1 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 12.90 | 247.01 | 0.05 | 359.83 | 0.2734 | 654.0 | 519.6 | |
| 0.00 | 2.51 | 0.00 | 1.30 | 14.04 | 246.29 | -0.67 | 2.23 | 0.2928 | 697.0 | 598.6 | |
| 0.00 | 3.95 | 0.00 | 2.05 | 14.90 | 245.98 | -0.98 | 3.11 | 0.3073 | 728.0 | 748.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 11.37 | 245.99 | -0.97 | 3.87 | 0.2480 | 568.0 | 435.2 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 12.71 | 245.83 | -1.13 | 4.10 | 0.2710 | 805.0 | 502.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.49 | 245.46 | -1.50 | 5.90 | 0.2509 | 756.0 | 654.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.68 | 245.40 | -1.56 | 6.06 | 0.2542 | 865.0 | 678.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.34 | 245.40 | -1.56 | 6.20 | 0.2484 | 840.0 | 700.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 11.78 | 244.75 | -2.21 | 8.49 | 0.2572 | 924.0 | 698.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 15.11 | 241.07 | -5.89 | 17.78 | 0.3257 | 794.0 | 661.3 | |
| 0.00 | 2.87 | 0.00 | 1.51 | 15.24 | 240.66 | -6.30 | 18.81 | 0.3299 | 756.0 | 766.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.53 | 240.55 | -6.41 | 18.80 | 0.3350 | 906.0 | 767.8 | |
| 0.00 | 2.96 | 0.00 | 1.56 | 16.04 | 240.32 | -6.64 | 18.93 | 0.3442 | 874.0 | 730.2 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 18.63 | 239.32 | -7.64 | 18.97 | 0.3892 | 769.0 | 553.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 14.30 | 239.23 | -7.73 | 23.82 | 0.3240 | 744.0 | 556.6 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 11.08 | 236.48 | -10.48 | 36.55 | 0.3010 | 831.0 | 677.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
