SDO HMI 2014-05-13 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.73 | 300.81 | 25.38 | 156.66 | 15.00 | 248.32 | 1.91 | 354.02 | 0.3114 | -522.6 | -351.9 | |
|
previous
or next observation for the same group /

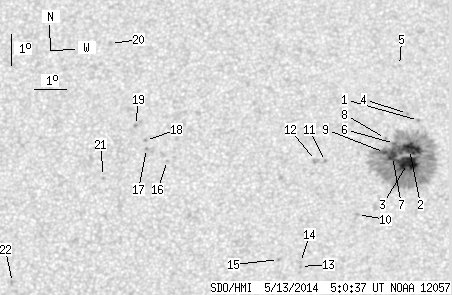

back to the solar disc SDO HMI 2014-05-13 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.15 | 249.14 | 2.73 | 352.01 | 0.3308 | -695.0 | -528.4 | |
| 18.22 | 278.25 | 9.50 | 144.88 | 15.22 | 248.85 | 2.44 | 352.49 | 0.3149 | -1106.4 | -436.2 | |
| 20.46 | -2.00 | 10.65 | -2.00 | 14.78 | 248.78 | 2.37 | 352.50 | 0.3074 | -1397.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.38 | 248.80 | 2.39 | 353.09 | 0.3337 | -539.0 | -412.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 17.92 | 248.57 | 2.15 | 354.25 | 0.3586 | 805.0 | 612.6 | |
| 0.72 | -2.00 | 0.37 | -2.00 | 15.41 | 248.38 | 1.97 | 353.99 | 0.3171 | -756.2 | 999999 | |
| 7.18 | -2.00 | 3.74 | -2.00 | 15.00 | 248.31 | 1.90 | 354.05 | 0.3101 | -1224.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.57 | 248.10 | 1.68 | 354.89 | 0.3193 | -615.0 | -499.2 | |
| 2.15 | -2.00 | 1.12 | -2.00 | 15.13 | 248.06 | 1.65 | 354.87 | 0.3118 | -889.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 13.16 | 247.20 | 0.79 | 357.21 | 0.2780 | 816.0 | 628.7 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 14.84 | 246.21 | -0.20 | 0.64 | 0.3059 | 773.0 | 654.6 | |
| 0.00 | 3.41 | 0.00 | 1.77 | 14.87 | 245.90 | -0.52 | 1.63 | 0.3065 | 713.0 | 712.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.53 | 245.43 | -0.98 | 3.84 | 0.2507 | 878.0 | 703.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.66 | 245.43 | -0.98 | 3.80 | 0.2528 | 766.0 | 626.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.75 | 244.75 | -1.66 | 6.39 | 0.2554 | 904.0 | 732.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 14.89 | 241.25 | -5.16 | 15.90 | 0.3187 | 778.0 | 580.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 15.28 | 240.58 | -5.83 | 17.47 | 0.3280 | 812.0 | 687.0 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.53 | 240.54 | -5.87 | 17.34 | 0.3322 | 1004.0 | 757.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 16.02 | 240.21 | -6.20 | 17.79 | 0.3414 | 1006.0 | 767.3 | |
| 0.00 | 2.15 | 0.00 | 1.16 | 18.67 | 239.32 | -7.09 | 17.68 | 0.3869 | 730.0 | 618.2 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 14.40 | 239.25 | -7.16 | 22.15 | 0.3218 | 481.0 | 595.7 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 11.09 | 236.50 | -9.91 | 35.06 | 0.2954 | 719.0 | 672.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
