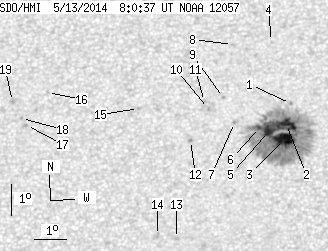

SDO HMI 2014-05-13 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.43 | 307.45 | 22.66 | 160.33 | 15.02 | 248.42 | 3.65 | 348.70 | 0.3151 | -511.0 | -366.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | 15.95 | 249.01 | 4.24 | 347.55 | 0.3316 | -688.0 | -511.0 | |
| 13.28 | 286.43 | 6.94 | 149.38 | 15.28 | 248.87 | 4.10 | 347.50 | 0.3203 | -1106.8 | -441.3 | |
| 19.83 | -2.00 | 10.34 | -2.00 | 14.80 | 248.77 | 4.00 | 347.47 | 0.3121 | -1378.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 17.95 | 248.45 | 3.69 | 350.23 | 0.3620 | 683.0 | 571.6 | |
| 8.97 | -2.00 | 4.68 | -2.00 | 15.05 | 248.30 | 3.53 | 349.05 | 0.3147 | -1222.8 | 999999 | |
| 1.35 | -2.00 | 0.70 | -2.00 | 15.18 | 248.02 | 3.25 | 349.97 | 0.3159 | -880.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.34 | 247.24 | 2.47 | 352.42 | 0.3165 | -771.0 | -592.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 17.85 | 247.21 | 2.44 | 353.46 | 0.3575 | 702.0 | 589.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 16.14 | 246.90 | 2.13 | 353.74 | 0.3290 | 656.0 | 446.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 15.79 | 246.42 | 1.66 | 355.03 | 0.3224 | 828.0 | 670.3 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 16.01 | 246.30 | 1.53 | 355.46 | 0.3260 | 779.0 | 651.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 14.77 | 245.85 | 1.08 | 356.55 | 0.3048 | 1037.0 | 840.5 | |
| 0.00 | 2.15 | 0.00 | 1.10 | 11.68 | 245.40 | 0.63 | 357.54 | 0.2524 | 811.0 | 567.9 | |
| 0.00 | 2.06 | 0.00 | 1.06 | 11.77 | 244.81 | 0.04 | 359.83 | 0.2538 | 819.0 | 607.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.79 | 244.22 | -0.55 | 1.65 | 0.3214 | 805.0 | 641.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.31 | 241.35 | -3.42 | 9.90 | 0.3348 | 719.0 | 532.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.26 | 240.70 | -4.07 | 12.41 | 0.3198 | 847.0 | 608.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 15.48 | 240.54 | -4.23 | 12.72 | 0.3240 | 847.0 | 620.4 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 16.03 | 240.25 | -4.52 | 13.18 | 0.3339 | 954.0 | 745.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
