SDO HMI 2014-05-13 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.00 | 285.15 | 25.10 | 148.90 | 15.00 | 248.31 | 4.64 | 343.41 | 0.3196 | -701.7 | -401.1 | |
|
previous
or next observation for the same group /

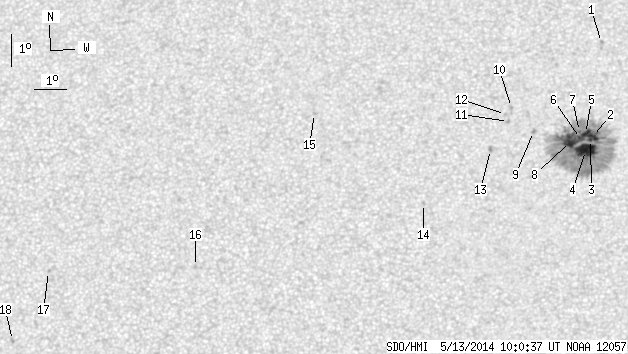

back to the solar disc SDO HMI 2014-05-13 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.72 | 18.28 | 249.38 | 5.71 | 345.31 | 0.3742 | 752.0 | 628.9 | |
| 5.29 | 267.74 | 2.77 | 139.82 | 15.26 | 249.01 | 5.33 | 343.91 | 0.3248 | -1091.8 | -466.6 | |
| 1.88 | -2.00 | 0.99 | -2.00 | 15.16 | 248.94 | 5.27 | 344.01 | 0.3230 | -1149.2 | 999999 | |
| 20.82 | -2.00 | 10.87 | -2.00 | 14.81 | 248.77 | 5.10 | 344.18 | 0.3166 | -1362.9 | 999999 | |
| 4.85 | -2.00 | 2.54 | -2.00 | 15.35 | 248.79 | 5.11 | 344.61 | 0.3253 | -1086.7 | 999999 | |
| 3.32 | -2.00 | 1.74 | -2.00 | 15.19 | 248.63 | 4.95 | 344.95 | 0.3221 | -1197.2 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | 15.42 | 248.60 | 4.93 | 345.20 | 0.3255 | -801.0 | 999999 | |
| 11.57 | -2.00 | 6.05 | -2.00 | 15.10 | 248.31 | 4.63 | 345.79 | 0.3192 | -1187.7 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.27 | 15.41 | 247.15 | 3.48 | 349.43 | 0.3202 | -889.0 | -618.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.18 | 246.47 | 2.80 | 351.83 | 0.3309 | 844.0 | 743.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 15.73 | 246.37 | 2.69 | 351.92 | 0.3233 | 966.0 | 754.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 15.96 | 246.28 | 2.60 | 352.29 | 0.3268 | 826.0 | 657.6 | |
| 0.00 | 2.06 | 0.00 | 1.07 | 14.84 | 245.79 | 2.12 | 353.30 | 0.3073 | 926.0 | 795.7 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 13.13 | 243.69 | 0.02 | 359.93 | 0.2766 | 771.0 | 524.7 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 16.00 | 240.26 | -3.42 | 10.06 | 0.3295 | 950.0 | 673.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.18 | 236.63 | -7.04 | 26.41 | 0.2717 | 828.0 | 697.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.07 | 232.03 | -11.64 | 39.56 | 0.3123 | -982.0 | -710.8 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 8.94 | 230.98 | -12.69 | 46.88 | 0.2987 | 892.0 | 692.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
