SDO HMI 2014-05-13 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.08 | 737.62 | 73.41 | 388.63 | -14.46 | 227.85 | -15.82 | 128.31 | 0.3353 | 198.5 | 64.5 | |
|
previous
or next observation for the same group /

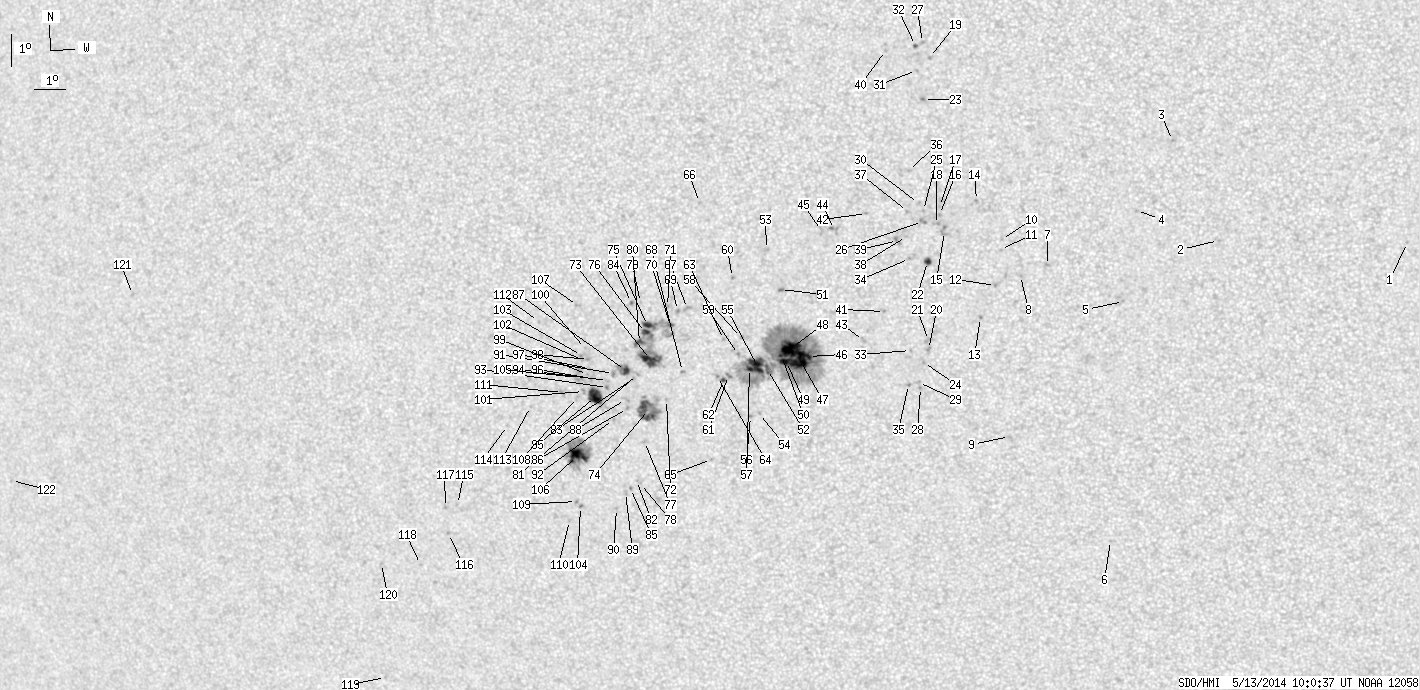

back to the solar disc SDO HMI 2014-05-13 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.90 | 249.31 | 5.64 | 214.54 | 0.1709 | 767.0 | 580.7 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -10.85 | 243.47 | -0.20 | 178.59 | 0.1397 | 998.0 | 805.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -7.79 | 242.07 | -1.60 | 162.19 | 0.0908 | 832.0 | 616.0 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -9.92 | 240.95 | -2.72 | 159.21 | 0.1322 | 798.0 | 611.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.71 | 240.52 | -3.15 | 162.59 | 0.1802 | 876.0 | 663.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.16 | 239.97 | -3.71 | 168.47 | 0.3050 | 635.0 | 467.1 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -11.59 | 238.18 | -5.50 | 148.33 | 0.1795 | 1010.0 | 786.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -11.89 | 237.33 | -6.34 | 145.51 | 0.1918 | 859.0 | 683.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -16.87 | 236.83 | -6.84 | 154.81 | 0.2691 | 548.0 | 530.0 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.79 | 236.77 | -6.91 | 139.51 | 0.1827 | 851.0 | 605.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -11.09 | 236.73 | -6.94 | 140.44 | 0.1871 | 701.0 | 651.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.19 | 236.54 | -7.13 | 143.28 | 0.2038 | 983.0 | 841.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.17 | 236.05 | -7.63 | 144.25 | 0.2222 | 1042.0 | 882.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -9.59 | 236.02 | -7.65 | 131.87 | 0.1771 | 1017.0 | 798.0 | |
| 0.00 | 5.74 | 0.00 | 2.90 | -10.53 | 235.00 | -8.67 | 132.12 | 0.2008 | 513.0 | 794.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.01 | 234.86 | -8.81 | 129.66 | 0.1968 | 947.0 | 792.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -9.76 | 234.87 | -8.81 | 128.69 | 0.1942 | 867.0 | 734.6 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -10.31 | 234.76 | -8.91 | 130.53 | 0.2015 | 805.0 | 681.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -5.23 | 234.66 | -9.01 | 105.09 | 0.1624 | 961.0 | 838.1 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -14.15 | 234.37 | -9.30 | 141.40 | 0.2524 | 1061.0 | 878.3 | |
| 0.00 | 4.85 | 0.00 | 2.48 | -13.87 | 234.38 | -9.29 | 140.72 | 0.2487 | 912.0 | 659.6 | |
| 2.87 | 4.31 | 1.46 | 2.19 | -11.44 | 234.44 | -9.23 | 133.63 | 0.2182 | 1116.9 | 852.9 | |
| 0.00 | 1.79 | 0.00 | 0.90 | -6.50 | 234.45 | -9.22 | 111.98 | 0.1725 | 1212.0 | 990.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.55 | 234.19 | -9.48 | 141.90 | 0.2595 | 899.0 | 627.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -9.88 | 234.37 | -9.31 | 127.66 | 0.2021 | 904.0 | 695.4 | |
| 0.00 | 2.96 | 0.00 | 1.50 | -10.22 | 234.33 | -9.35 | 128.85 | 0.2062 | 898.0 | 881.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -4.78 | 234.45 | -9.22 | 102.07 | 0.1641 | 996.0 | 762.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.32 | 234.06 | -9.61 | 143.36 | 0.2710 | 834.0 | 660.7 | |
| 0.00 | 2.33 | 0.00 | 1.20 | -15.17 | 234.01 | -9.67 | 142.84 | 0.2695 | 786.0 | 665.4 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -9.67 | 234.22 | -9.46 | 126.36 | 0.2020 | 907.0 | 488.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -5.62 | 234.25 | -9.42 | 106.72 | 0.1709 | 935.0 | 762.2 | |
| 0.54 | 1.79 | 0.27 | 0.90 | -4.87 | 234.23 | -9.44 | 102.33 | 0.1681 | 1080.8 | 909.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.17 | 233.80 | -9.88 | 139.82 | 0.2589 | 933.0 | 716.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -11.34 | 233.88 | -9.79 | 131.65 | 0.2242 | 875.0 | 737.2 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.22 | 233.69 | -9.99 | 142.09 | 0.2736 | 677.0 | 622.6 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -8.66 | 233.94 | -9.74 | 121.33 | 0.1966 | 783.0 | 619.5 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -9.91 | 233.87 | -9.81 | 126.35 | 0.2092 | 594.0 | 487.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -10.67 | 233.81 | -9.86 | 129.08 | 0.2178 | 737.0 | 625.5 | |
| 0.00 | 3.32 | 0.00 | 1.69 | -10.79 | 233.53 | -10.15 | 128.72 | 0.2228 | 787.0 | 737.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -5.01 | 233.31 | -10.37 | 102.07 | 0.1842 | 897.0 | 664.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.96 | 233.03 | -10.64 | 134.41 | 0.2531 | 1040.0 | 805.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -9.96 | 232.58 | -11.09 | 123.31 | 0.2277 | -811.0 | -608.1 | |
| 0.00 | 2.87 | 0.00 | 1.48 | -13.85 | 232.32 | -11.35 | 135.07 | 0.2718 | 801.0 | 617.2 | |
| 0.00 | 3.68 | 0.00 | 1.88 | -10.43 | 231.56 | -12.11 | 122.79 | 0.2466 | -803.0 | -778.7 | |
| 0.00 | 3.77 | 0.00 | 1.93 | -10.46 | 231.15 | -12.52 | 122.04 | 0.2527 | -790.0 | -682.7 | |
| 2.87 | 341.49 | 1.49 | 177.83 | -14.32 | 230.54 | -13.14 | 132.25 | 0.2988 | 1280.4 | 366.0 | |
| 19.56 | -46.00 | 10.16 | -46.00 | -14.44 | 230.27 | -13.40 | 132.01 | 0.3034 | 1348.1 | 999999 | |
| 22.43 | -46.00 | 11.66 | -46.00 | -14.07 | 229.97 | -13.70 | 130.44 | 0.3032 | 1371.7 | 999999 | |
| 8.70 | -46.00 | 4.53 | -46.00 | -14.47 | 229.82 | -13.85 | 131.16 | 0.3093 | 1055.5 | 999999 | |
| 1.62 | -46.00 | 0.84 | -46.00 | -14.28 | 229.67 | -14.00 | 130.39 | 0.3092 | 993.6 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -12.25 | 229.76 | -13.91 | 125.01 | 0.2882 | -1071.0 | -945.5 | |
| 2.42 | -46.00 | 1.27 | -46.00 | -14.71 | 229.19 | -14.48 | 130.54 | 0.3197 | 1001.7 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.34 | -11.02 | 229.38 | -14.29 | 120.62 | 0.2829 | -623.0 | -480.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.07 | 228.83 | -14.84 | 133.08 | 0.3385 | 843.0 | 621.0 | |
| 14.98 | -46.00 | 7.84 | -46.00 | -14.58 | 228.88 | -14.80 | 129.64 | 0.3224 | 1046.6 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -16.16 | 228.53 | -15.14 | 132.72 | 0.3431 | 829.0 | 605.3 | |
| 3.32 | -46.00 | 1.74 | -46.00 | -14.67 | 228.61 | -15.06 | 129.38 | 0.3267 | 862.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -13.71 | 228.42 | -15.26 | 126.62 | 0.3199 | 760.0 | 557.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -14.23 | 228.28 | -15.39 | 127.72 | 0.3266 | 669.0 | 576.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -11.86 | 228.25 | -15.43 | 121.29 | 0.3060 | -984.0 | -885.6 | |
| 0.00 | 2.60 | 0.00 | 1.37 | -14.88 | 227.91 | -15.76 | 128.66 | 0.3377 | 901.0 | 718.5 | |
| 1.17 | 2.69 | 0.61 | 1.42 | -15.03 | 227.74 | -15.94 | 128.73 | 0.3414 | 762.8 | 548.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.76 | 227.83 | -15.84 | 125.77 | 0.3282 | 830.0 | 617.0 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -14.90 | 227.55 | -16.12 | 128.12 | 0.3426 | 607.0 | 446.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -17.48 | 227.13 | -16.54 | 133.14 | 0.3738 | 908.0 | 711.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.55 | 227.32 | -16.36 | 113.12 | 0.3033 | -791.0 | -594.5 | |
| 0.00 | 3.23 | 0.00 | 1.70 | -12.79 | 226.73 | -16.94 | 121.57 | 0.3350 | -878.0 | -769.2 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -14.73 | 226.42 | -17.25 | 125.94 | 0.3558 | -974.0 | -759.2 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -12.85 | 226.40 | -17.27 | 121.25 | 0.3401 | -1036.0 | -873.3 | |
| 0.99 | 82.46 | 0.52 | 43.76 | -13.30 | 226.14 | -17.53 | 122.06 | 0.3474 | 562.4 | -514.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -12.72 | 226.09 | -17.59 | 120.49 | 0.3435 | -784.0 | -628.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -15.59 | 225.82 | -17.86 | 127.02 | 0.3715 | -833.0 | -647.9 | |
| 12.56 | -70.00 | 6.68 | -70.00 | -14.34 | 225.40 | -18.27 | 123.57 | 0.3661 | -1143.3 | 999999 | |
| 0.00 | 39.66 | 0.00 | 21.25 | -15.89 | 225.19 | -18.48 | 126.79 | 0.3823 | -928.0 | -699.6 | |
| 4.04 | -70.00 | 2.14 | -70.00 | -13.29 | 225.39 | -18.28 | 121.02 | 0.3578 | -1118.4 | 999999 | |
| 3.50 | -70.00 | 1.86 | -70.00 | -13.51 | 225.31 | -18.37 | 121.43 | 0.3606 | -1086.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -16.88 | 224.96 | -18.71 | 128.58 | 0.3944 | -774.0 | -614.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -18.20 | 224.68 | -18.99 | 130.83 | 0.4103 | -777.0 | -547.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.58 | 225.22 | -18.46 | 119.02 | 0.3549 | -799.0 | -605.5 | |
| 2.60 | -70.00 | 1.38 | -70.00 | -13.81 | 225.08 | -18.59 | 121.88 | 0.3661 | -1081.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -14.80 | 224.93 | -18.74 | 123.99 | 0.3763 | -971.0 | -775.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.10 | 224.56 | -19.12 | 130.47 | 0.4109 | -836.0 | -677.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -14.92 | 224.79 | -18.89 | 124.08 | 0.3792 | -914.0 | -773.0 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -12.58 | 224.92 | -18.75 | 118.65 | 0.3591 | -943.0 | -897.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -18.35 | 224.33 | -19.35 | 130.63 | 0.4161 | -996.0 | -783.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -15.85 | 224.50 | -19.18 | 125.75 | 0.3910 | -792.0 | -664.2 | |
| 3.95 | 11.57 | 2.11 | 6.20 | -14.67 | 224.55 | -19.13 | 123.19 | 0.3804 | -1075.0 | -769.2 | |
| 0.00 | 3.23 | 0.00 | 1.74 | -15.57 | 224.46 | -19.21 | 125.09 | 0.3891 | -749.0 | -702.4 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -18.47 | 224.14 | -19.53 | 130.61 | 0.4195 | -806.0 | -523.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.97 | 223.77 | -19.90 | 131.05 | 0.4286 | -815.0 | -595.9 | |
| 0.00 | 3.05 | 0.00 | 1.64 | -14.75 | 224.14 | -19.53 | 122.87 | 0.3866 | -932.0 | -673.0 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -16.18 | 224.00 | -19.68 | 125.80 | 0.4004 | -652.0 | -472.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -15.18 | 223.90 | -19.78 | 123.53 | 0.3934 | -920.0 | -838.8 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -14.97 | 223.92 | -19.75 | 123.07 | 0.3913 | -726.0 | -643.6 | |
| 14.54 | 19.74 | 7.86 | 10.67 | -15.46 | 223.47 | -20.21 | 123.59 | 0.4013 | -1051.5 | -658.8 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -14.90 | 223.39 | -20.28 | 122.28 | 0.3979 | -804.0 | -774.2 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -14.59 | 223.36 | -20.32 | 121.54 | 0.3960 | -775.0 | -627.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -14.31 | 223.35 | -20.32 | 120.91 | 0.3940 | -1047.0 | -847.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -14.77 | 223.27 | -20.40 | 121.85 | 0.3986 | -821.0 | -662.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.97 | 223.28 | -20.39 | 120.06 | 0.3924 | -726.0 | -558.8 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -15.29 | 223.08 | -20.59 | 122.78 | 0.4052 | -697.0 | -545.7 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.33 | 223.18 | -20.49 | 120.78 | 0.3965 | -620.0 | -516.2 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -14.18 | 223.13 | -20.55 | 120.37 | 0.3961 | -797.0 | -631.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -18.88 | 222.55 | -21.12 | 129.32 | 0.4425 | -918.0 | -832.4 | |
| 0.00 | 10.23 | 0.00 | 5.53 | -14.86 | 222.99 | -20.68 | 121.73 | 0.4030 | -522.0 | -601.4 | |
| 16.42 | 56.17 | 8.99 | 30.74 | -17.28 | 222.66 | -21.02 | 126.38 | 0.4271 | 1131.6 | 459.7 | |
| 0.00 | 2.42 | 0.00 | 1.30 | -12.64 | 223.14 | -20.54 | 116.81 | 0.3852 | -735.0 | -621.4 | |
| 0.00 | 2.87 | 0.00 | 1.56 | -15.48 | 222.86 | -20.81 | 122.91 | 0.4096 | -574.0 | -452.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -18.72 | 222.44 | -21.24 | 128.88 | 0.4425 | -925.0 | -714.4 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -19.32 | 222.12 | -21.56 | 129.58 | 0.4518 | -689.0 | -576.8 | |
| 0.00 | 3.05 | 0.00 | 1.66 | -15.31 | 222.37 | -21.30 | 122.01 | 0.4149 | -843.0 | -589.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -13.10 | 221.79 | -21.88 | 116.55 | 0.4075 | -792.0 | -610.5 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -15.73 | 221.24 | -22.43 | 121.65 | 0.4332 | -634.0 | -503.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -16.30 | 220.39 | -23.29 | 121.92 | 0.4489 | -717.0 | -588.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.74 | 218.29 | -25.39 | 124.42 | 0.4941 | -612.0 | -541.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -19.64 | 217.81 | -25.86 | 125.54 | 0.5069 | -694.0 | -520.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -18.82 | 217.85 | -25.83 | 124.15 | 0.5003 | -751.0 | -665.5 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -20.60 | 216.63 | -27.05 | 126.06 | 0.5286 | -606.0 | -470.8 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -24.20 | 214.52 | -29.15 | 129.76 | 0.5802 | -563.0 | -481.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -20.54 | 215.21 | -28.46 | 124.73 | 0.5451 | -730.0 | -509.3 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -11.92 | 207.47 | -36.20 | 106.11 | 0.6038 | -704.0 | -498.8 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -17.51 | 201.34 | -42.34 | 112.45 | 0.6972 | -661.0 | -597.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
