SDO HMI 2014-05-13 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.06 | 315.01 | 29.86 | 164.59 | 15.02 | 248.05 | 4.92 | 342.41 | 0.3218 | -578.8 | -332.9 | |
|
previous
or next observation for the same group /

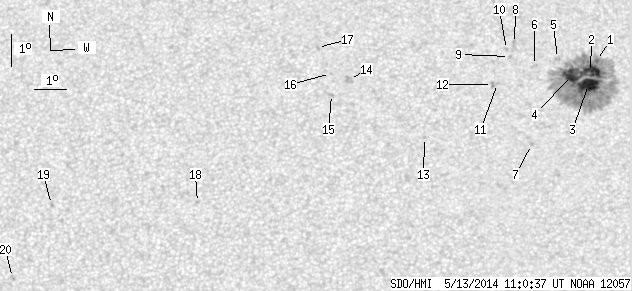

back to the solar disc SDO HMI 2014-05-13 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 283.96 | 0.57 | 148.43 | 15.62 | 249.07 | 5.94 | 342.52 | 0.3333 | -469.2 | -432.6 | |
| 18.75 | -1.00 | 9.82 | -1.00 | 15.27 | 248.87 | 5.74 | 342.75 | 0.3268 | -1071.2 | 999999 | |
| 19.65 | -1.00 | 10.27 | -1.00 | 14.85 | 248.79 | 5.67 | 342.56 | 0.3199 | -1343.6 | 999999 | |
| 17.58 | -1.00 | 9.20 | -1.00 | 15.14 | 248.26 | 5.14 | 344.35 | 0.3219 | -1120.9 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.36 | 15.68 | 247.84 | 4.71 | 346.02 | 0.3288 | -576.0 | -508.6 | |
| 0.00 | 2.33 | 0.00 | 1.22 | 15.45 | 247.11 | 3.98 | 347.97 | 0.3224 | -754.0 | -610.2 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 12.95 | 246.97 | 3.84 | 346.51 | 0.2811 | 830.0 | 646.2 | |
| 0.00 | 2.69 | 0.00 | 1.41 | 16.15 | 246.49 | 3.36 | 350.18 | 0.3319 | 584.0 | 577.0 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.74 | 246.32 | 3.20 | 350.44 | 0.3246 | 912.0 | 717.6 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 15.96 | 246.23 | 3.11 | 350.82 | 0.3280 | 775.0 | 545.3 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 14.88 | 245.93 | 2.81 | 351.16 | 0.3095 | 869.0 | 679.8 | |
| 0.00 | 2.06 | 0.00 | 1.07 | 14.84 | 245.78 | 2.65 | 351.63 | 0.3085 | 883.0 | 747.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 13.17 | 243.64 | 0.51 | 358.19 | 0.2773 | 770.0 | 595.8 | |
| 0.00 | 5.65 | 0.00 | 2.94 | 15.01 | 241.29 | -1.83 | 5.75 | 0.3096 | 700.0 | 670.7 | |
| 0.00 | 2.15 | 0.00 | 1.12 | 14.53 | 240.73 | -2.39 | 7.70 | 0.3028 | 899.0 | 722.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.20 | 240.70 | -2.43 | 7.52 | 0.3139 | 771.0 | 538.4 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 16.03 | 240.28 | -2.85 | 8.40 | 0.3285 | 868.0 | 743.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 11.15 | 236.61 | -6.51 | 24.72 | 0.2673 | 883.0 | 670.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 11.13 | 232.05 | -11.08 | 38.05 | 0.3071 | -924.0 | -715.5 | |
| 0.00 | 2.42 | 0.00 | 1.25 | 8.88 | 230.91 | -12.22 | 45.96 | 0.2922 | 862.0 | 599.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
