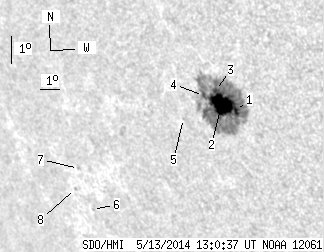

SDO HMI 2014-05-13 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.20 | 214.49 | 29.59 | 166.65 | -23.78 | 194.57 | -47.46 | 118.90 | 0.7722 | 712.5 | 262.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.33 | 211.52 | 1.79 | 163.89 | -23.99 | 195.29 | -46.74 | 119.41 | 0.7660 | 893.5 | 273.8 | |
| 32.11 | -1.00 | 24.86 | -1.00 | -23.77 | 194.71 | -47.32 | 118.93 | 0.7709 | 887.0 | 999999 | |
| 1.70 | -1.00 | 1.32 | -1.00 | -23.31 | 194.64 | -47.39 | 118.33 | 0.7701 | 706.4 | 999999 | |
| 2.06 | -1.00 | 1.62 | -1.00 | -23.45 | 193.98 | -48.05 | 118.28 | 0.7770 | 342.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -24.16 | 192.61 | -49.42 | 118.69 | 0.7922 | 376.0 | 362.0 | |
| 0.00 | 0.63 | 0.00 | 0.60 | -26.92 | 185.76 | -56.26 | 119.97 | 0.8580 | -484.0 | -439.6 | |
| 0.00 | 0.90 | 0.00 | 0.85 | -25.55 | 185.92 | -56.10 | 118.45 | 0.8538 | -623.0 | -441.6 | |
| 0.00 | 0.90 | 0.00 | 0.87 | -26.19 | 185.27 | -56.76 | 119.02 | 0.8603 | -473.0 | -416.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
