SDO HMI 2014-05-13 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.61 | 728.70 | 71.45 | 379.70 | -14.33 | 228.10 | -13.38 | 132.81 | 0.3035 | 230.5 | 106.4 | |
|
previous
or next observation for the same group /

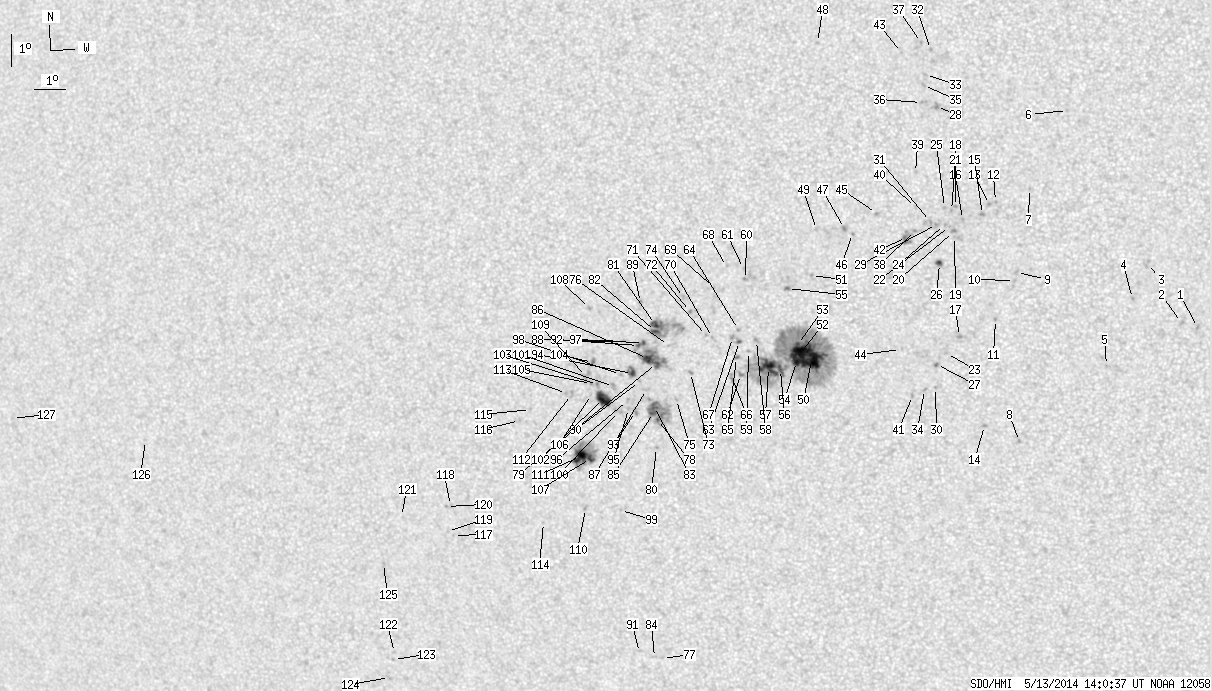

back to the solar disc SDO HMI 2014-05-13 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.90 | -13.44 | 242.46 | 0.98 | 185.17 | 0.1855 | 880.0 | 727.0 | |
| 0.00 | 2.69 | 0.00 | 1.36 | -13.29 | 241.96 | 0.48 | 182.59 | 0.1823 | 676.0 | 647.2 | |
| 0.00 | 4.13 | 0.00 | 2.07 | -11.48 | 240.91 | -0.57 | 176.29 | 0.1511 | 658.0 | 653.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.55 | 240.44 | -1.04 | 174.01 | 0.1702 | 956.0 | 791.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -14.61 | 239.61 | -1.86 | 171.23 | 0.2073 | 800.0 | 658.4 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -6.81 | 238.48 | -3.00 | 143.11 | 0.0869 | 926.0 | 666.5 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -9.17 | 237.29 | -4.18 | 146.87 | 0.1324 | 743.0 | 602.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -16.96 | 236.83 | -4.65 | 162.39 | 0.2572 | 931.0 | 747.0 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -11.74 | 236.85 | -4.63 | 152.97 | 0.1745 | 920.0 | 690.1 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -11.98 | 236.78 | -4.69 | 153.28 | 0.1788 | 932.0 | 741.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.18 | 236.17 | -5.31 | 153.36 | 0.2018 | 997.0 | 817.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -9.57 | 236.24 | -5.24 | 142.48 | 0.1484 | 829.0 | 725.5 | |
| 0.00 | 1.97 | 0.00 | 0.99 | -9.66 | 236.05 | -5.42 | 141.89 | 0.1517 | 891.0 | 687.0 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -16.46 | 235.73 | -5.74 | 157.83 | 0.2555 | 903.0 | 632.3 | |
| 0.00 | 2.15 | 0.00 | 1.08 | -9.96 | 235.83 | -5.65 | 142.01 | 0.1581 | 1210.0 | 952.4 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -10.11 | 235.21 | -6.27 | 139.70 | 0.1669 | 930.0 | 753.2 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -13.70 | 235.03 | -6.45 | 149.94 | 0.2188 | 923.0 | 749.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -9.71 | 235.00 | -6.47 | 137.15 | 0.1642 | 1020.0 | 829.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -10.63 | 234.95 | -6.53 | 140.54 | 0.1765 | 778.0 | 679.0 | |
| 0.00 | 2.69 | 0.00 | 1.35 | -10.47 | 234.92 | -6.55 | 139.85 | 0.1748 | 1219.0 | 972.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.83 | 234.88 | -6.60 | 137.11 | 0.1672 | 852.0 | 739.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -10.32 | 234.80 | -6.67 | 138.75 | 0.1742 | 1069.0 | 759.0 | |
| 0.00 | 1.52 | 0.00 | 0.78 | -14.22 | 234.60 | -6.87 | 149.57 | 0.2301 | 793.0 | 628.9 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -10.26 | 234.65 | -6.83 | 137.87 | 0.1752 | 844.0 | 630.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -9.74 | 234.66 | -6.82 | 135.82 | 0.1686 | 785.0 | 696.5 | |
| 1.88 | 3.50 | 0.95 | 1.77 | -11.45 | 234.47 | -7.01 | 141.41 | 0.1927 | 1116.8 | 866.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.55 | 234.28 | -7.20 | 149.18 | 0.2378 | 964.0 | 844.0 | |
| 0.00 | 5.11 | 0.00 | 2.56 | -6.66 | 234.47 | -7.00 | 118.94 | 0.1390 | 1035.0 | 799.2 | |
| 0.00 | 1.97 | 0.00 | 0.99 | -10.26 | 234.40 | -7.07 | 136.86 | 0.1780 | 938.0 | 758.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -15.27 | 234.22 | -7.26 | 150.51 | 0.2486 | 954.0 | 707.4 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -10.16 | 234.22 | -7.26 | 135.76 | 0.1791 | 945.0 | 732.8 | |
| 0.00 | 1.52 | 0.00 | 0.76 | -4.94 | 234.31 | -7.16 | 106.51 | 0.1302 | 1137.0 | 884.5 | |
| 0.00 | 1.70 | 0.00 | 0.85 | -5.69 | 234.15 | -7.33 | 111.52 | 0.1370 | 1009.0 | 770.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -15.33 | 233.87 | -7.61 | 149.48 | 0.2525 | 814.0 | 670.7 | |
| 0.00 | 1.97 | 0.00 | 0.99 | -6.02 | 234.08 | -7.39 | 113.58 | 0.1403 | 950.0 | 764.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -6.54 | 234.01 | -7.46 | 116.68 | 0.1451 | 824.0 | 679.9 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -4.72 | 234.04 | -7.44 | 104.40 | 0.1338 | 954.0 | 720.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.43 | 233.75 | -7.73 | 135.04 | 0.1881 | 816.0 | 676.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -8.67 | 233.79 | -7.69 | 127.59 | 0.1677 | 795.0 | 661.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -9.73 | 233.76 | -7.71 | 132.29 | 0.1796 | 713.0 | 458.7 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -15.51 | 233.48 | -7.99 | 148.62 | 0.2585 | 772.0 | 652.7 | |
| 0.00 | 9.87 | 0.00 | 4.98 | -10.65 | 233.46 | -8.02 | 134.81 | 0.1941 | 929.0 | 773.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -5.02 | 233.42 | -8.05 | 105.38 | 0.1454 | 892.0 | 700.1 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -14.08 | 233.16 | -8.32 | 144.31 | 0.2416 | 483.0 | 588.4 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -9.90 | 232.55 | -8.93 | 128.92 | 0.1974 | -939.0 | -730.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.51 | 231.78 | -9.70 | 128.98 | 0.2140 | -980.0 | -825.0 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -10.35 | 231.54 | -9.94 | 127.73 | 0.2157 | -1018.0 | -841.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -4.69 | 230.84 | -10.64 | 100.19 | 0.1878 | 791.0 | 529.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.38 | 230.66 | -10.82 | 125.54 | 0.2279 | -706.0 | -599.1 | |
| 24.58 | 338.15 | 12.66 | 174.52 | -14.40 | 230.32 | -11.15 | 137.03 | 0.2761 | 1324.8 | 389.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.78 | 230.45 | -11.03 | 129.83 | 0.2450 | -947.0 | -704.4 | |
| 23.59 | -50.00 | 12.16 | -50.00 | -14.11 | 230.02 | -11.46 | 135.55 | 0.2763 | 1368.0 | 999999 | |
| 1.97 | -50.00 | 1.02 | -50.00 | -13.90 | 229.90 | -11.57 | 134.69 | 0.2752 | 1138.4 | 999999 | |
| 4.84 | -50.00 | 2.50 | -50.00 | -14.42 | 229.84 | -11.63 | 135.92 | 0.2820 | 1072.8 | 999999 | |
| 0.45 | 2.51 | 0.23 | 1.29 | -12.17 | 229.67 | -11.81 | 129.19 | 0.2592 | -1046.4 | -827.9 | |
| 3.41 | -50.00 | 1.76 | -50.00 | -14.66 | 229.32 | -12.16 | 135.30 | 0.2909 | 968.5 | 999999 | |
| 16.32 | -50.00 | 8.46 | -50.00 | -14.60 | 228.94 | -12.54 | 134.27 | 0.2947 | 1030.5 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.25 | -13.76 | 228.60 | -12.87 | 131.36 | 0.2896 | 797.0 | 619.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -14.10 | 228.33 | -13.15 | 131.66 | 0.2967 | 703.0 | 501.7 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -11.88 | 228.35 | -13.12 | 125.46 | 0.2740 | -879.0 | -796.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.54 | 228.31 | -13.17 | 124.33 | 0.2715 | -852.0 | -619.9 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -14.80 | 228.03 | -13.45 | 132.83 | 0.3080 | 800.0 | 667.6 | |
| 0.81 | 3.23 | 0.42 | 1.67 | -13.78 | 228.06 | -13.42 | 130.28 | 0.2968 | 928.8 | 743.9 | |
| 0.00 | 1.70 | 0.00 | 0.88 | -13.41 | 228.05 | -13.43 | 129.27 | 0.2931 | 728.0 | 575.8 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -14.28 | 227.93 | -13.55 | 131.31 | 0.3035 | 817.0 | 639.8 | |
| 0.00 | 3.14 | 0.00 | 1.64 | -14.92 | 227.76 | -13.72 | 132.59 | 0.3126 | 686.0 | 590.9 | |
| 0.00 | 2.69 | 0.00 | 1.40 | -13.66 | 227.84 | -13.64 | 129.51 | 0.2983 | 726.0 | 596.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -11.47 | 227.77 | -13.71 | 123.10 | 0.2784 | -707.0 | -552.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -12.11 | 227.32 | -14.16 | 124.20 | 0.2904 | -955.0 | -716.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -13.65 | 227.20 | -14.28 | 128.25 | 0.3065 | -745.0 | -531.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -13.58 | 227.01 | -14.47 | 127.72 | 0.3084 | 533.0 | 340.5 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -12.84 | 226.54 | -14.94 | 124.88 | 0.3077 | -1046.0 | -850.2 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -14.72 | 226.41 | -15.06 | 129.53 | 0.3273 | -1116.0 | -828.0 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -12.41 | 226.34 | -15.13 | 123.34 | 0.3066 | -985.0 | -755.5 | |
| 0.00 | 1.52 | 0.00 | 0.80 | -15.55 | 225.90 | -15.58 | 130.59 | 0.3422 | -878.0 | -741.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -13.88 | 225.76 | -15.71 | 126.30 | 0.3277 | -860.0 | -670.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -23.74 | 224.56 | -16.92 | 143.40 | 0.4486 | 667.0 | 519.0 | |
| 0.63 | 41.17 | 0.33 | 21.79 | -16.16 | 225.22 | -16.25 | 130.82 | 0.3568 | -839.7 | -486.1 | |
| 2.42 | 48.08 | 1.27 | 25.30 | -14.43 | 225.33 | -16.15 | 126.96 | 0.3385 | -1104.0 | -695.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.04 | 225.11 | -16.36 | 132.52 | 0.3671 | -737.0 | -601.2 | |
| 3.86 | 39.38 | 2.02 | 20.61 | -13.22 | 225.39 | -16.09 | 124.00 | 0.3269 | -1083.4 | -438.4 | |
| 2.51 | -81.00 | 1.32 | -81.00 | -13.44 | 225.37 | -16.11 | 124.54 | 0.3290 | -1071.2 | 999999 | |
| 4.66 | -78.00 | 2.47 | -78.00 | -15.76 | 225.16 | -16.32 | 129.81 | 0.3535 | -1168.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -23.71 | 224.29 | -17.19 | 142.92 | 0.4507 | 592.0 | 458.2 | |
| 2.87 | -78.00 | 1.52 | -78.00 | -15.94 | 225.11 | -16.37 | 130.15 | 0.3560 | -999.9 | 999999 | |
| 5.92 | -79.00 | 3.12 | -79.00 | -14.27 | 225.05 | -16.43 | 126.12 | 0.3407 | -1199.8 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.71 | -15.23 | 224.94 | -16.53 | 128.23 | 0.3511 | -741.0 | -552.0 | |
| 1.08 | -79.00 | 0.57 | -79.00 | -13.77 | 224.96 | -16.52 | 124.74 | 0.3375 | -1151.4 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.80 | -12.54 | 224.95 | -16.53 | 121.53 | 0.3272 | -1065.0 | -806.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -14.97 | 224.73 | -16.74 | 127.32 | 0.3515 | -852.0 | -641.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -23.54 | 223.79 | -17.69 | 141.92 | 0.4534 | 484.0 | 540.8 | |
| 0.99 | -79.00 | 0.52 | -79.00 | -13.86 | 224.79 | -16.69 | 124.71 | 0.3406 | -1134.2 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.53 | -15.90 | 224.52 | -16.95 | 129.11 | 0.3630 | -810.0 | -735.5 | |
| 2.60 | 7.18 | 1.38 | 3.80 | -14.72 | 224.52 | -16.95 | 126.40 | 0.3519 | -1072.4 | -864.7 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -15.81 | 224.30 | -17.18 | 128.55 | 0.3649 | -713.0 | -559.3 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -15.56 | 224.29 | -17.19 | 127.97 | 0.3627 | -876.0 | -759.2 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -13.73 | 224.34 | -17.14 | 123.71 | 0.3456 | -799.0 | -671.8 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -14.75 | 224.13 | -17.35 | 125.86 | 0.3573 | -813.0 | -559.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -18.99 | 223.71 | -17.76 | 134.18 | 0.4039 | -796.0 | -556.9 | |
| 0.00 | 4.13 | 0.00 | 2.20 | -15.89 | 223.96 | -17.51 | 128.23 | 0.3700 | -659.0 | -553.0 | |
| 0.00 | 4.13 | 0.00 | 2.19 | -15.12 | 223.87 | -17.61 | 126.33 | 0.3641 | -933.0 | -807.4 | |
| 13.01 | 16.59 | 6.94 | 8.85 | -15.48 | 223.50 | -17.97 | 126.63 | 0.3721 | -1058.7 | -674.4 | |
| 0.00 | 3.50 | 0.00 | 1.86 | -15.05 | 223.35 | -18.13 | 125.42 | 0.3703 | -927.0 | -761.2 | |
| 0.45 | 2.87 | 0.24 | 1.53 | -14.36 | 223.24 | -18.24 | 123.69 | 0.3659 | -1099.6 | -885.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -15.01 | 223.15 | -18.33 | 125.07 | 0.3726 | -882.0 | -722.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.35 | 223.12 | -18.36 | 125.79 | 0.3760 | -518.0 | -349.5 | |
| 3.86 | 43.77 | 2.08 | 23.62 | -17.34 | 222.89 | -18.59 | 129.72 | 0.3973 | 1172.0 | 556.7 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -12.70 | 223.28 | -18.20 | 119.66 | 0.3521 | -838.0 | -609.6 | |
| 0.00 | 6.73 | 0.00 | 3.59 | -14.79 | 223.01 | -18.47 | 124.36 | 0.3727 | -689.0 | -622.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -18.91 | 222.54 | -18.93 | 132.29 | 0.4167 | -991.0 | -851.0 | |
| 13.90 | -107.00 | 7.51 | -107.00 | -17.28 | 222.56 | -18.92 | 129.12 | 0.4007 | 1099.8 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.49 | -15.34 | 222.46 | -19.02 | 124.87 | 0.3847 | -753.0 | -621.4 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -15.31 | 222.29 | -19.18 | 124.58 | 0.3866 | -778.0 | -561.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -19.33 | 221.06 | -20.42 | 131.05 | 0.4383 | -651.0 | -515.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -15.78 | 221.04 | -20.43 | 124.03 | 0.4071 | -737.0 | -505.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.12 | 220.64 | -20.84 | 124.25 | 0.4152 | -929.0 | -735.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.68 | 217.89 | -23.59 | 127.91 | 0.4796 | -663.0 | -517.1 | |
| 0.00 | 2.24 | 0.00 | 1.26 | -18.73 | 217.93 | -23.55 | 126.27 | 0.4712 | -740.0 | -559.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.55 | 217.70 | -23.78 | 127.48 | 0.4808 | -677.0 | -598.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.76 | 217.78 | -23.69 | 126.17 | 0.4732 | -713.0 | -591.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -19.04 | 216.15 | -25.32 | 125.03 | 0.4957 | -476.0 | -544.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -23.37 | 215.08 | -26.40 | 131.05 | 0.5433 | -750.0 | -635.1 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -23.60 | 214.99 | -26.49 | 131.30 | 0.5461 | -567.0 | -518.8 | |
| 0.00 | 2.33 | 0.00 | 1.39 | -24.18 | 214.71 | -26.76 | 131.90 | 0.5541 | -490.0 | -518.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -20.51 | 215.25 | -26.23 | 126.68 | 0.5181 | -777.0 | -618.5 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -16.43 | 207.23 | -34.25 | 114.25 | 0.5942 | -717.0 | -588.6 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -15.59 | 202.16 | -39.31 | 110.77 | 0.6549 | -429.0 | -324.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
