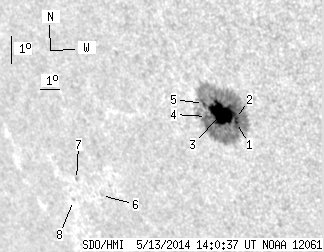

SDO HMI 2014-05-13 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.37 | 220.75 | 30.96 | 169.65 | -23.78 | 194.58 | -46.90 | 119.10 | 0.7667 | 727.2 | 277.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 218.59 | 0.75 | 167.64 | -24.07 | 195.29 | -46.19 | 119.71 | 0.7609 | 823.3 | 288.2 | |
| 0.27 | -1.00 | 0.20 | -1.00 | -23.94 | 195.30 | -46.18 | 119.55 | 0.7603 | 1019.3 | 999999 | |
| 36.06 | -1.00 | 27.64 | -1.00 | -23.76 | 194.71 | -46.77 | 119.11 | 0.7655 | 898.4 | 999999 | |
| 0.81 | -1.00 | 0.63 | -1.00 | -23.83 | 193.94 | -47.53 | 118.92 | 0.7732 | -327.7 | 999999 | |
| 2.24 | -1.00 | 1.74 | -1.00 | -23.41 | 194.00 | -47.48 | 118.42 | 0.7713 | 248.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.57 | -26.18 | 186.96 | -54.52 | 119.58 | 0.8423 | -549.0 | -498.7 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -25.60 | 185.89 | -55.59 | 118.64 | 0.8498 | -496.0 | -456.3 | |
| 0.00 | 0.99 | 0.00 | 0.94 | -26.28 | 185.21 | -56.26 | 119.24 | 0.8566 | -430.0 | -366.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
