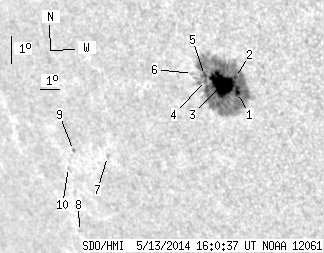

SDO HMI 2014-05-13 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.77 | 225.12 | 32.19 | 170.24 | -23.78 | 194.47 | -45.90 | 119.47 | 0.7568 | 717.9 | 268.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 218.92 | 1.34 | 164.80 | -24.04 | 195.25 | -45.12 | 120.08 | 0.7502 | 866.0 | 293.7 | |
| 2.69 | -1.00 | 2.00 | -1.00 | -23.55 | 195.37 | -45.00 | 119.52 | 0.7472 | 1076.7 | 999999 | |
| 35.69 | -1.00 | 26.87 | -1.00 | -23.73 | 194.68 | -45.69 | 119.47 | 0.7547 | 919.9 | 999999 | |
| 0.90 | -1.00 | 0.68 | -1.00 | -23.60 | 193.92 | -46.45 | 119.03 | 0.7618 | 301.6 | 999999 | |
| 1.70 | -1.00 | 1.30 | -1.00 | -23.44 | 193.95 | -46.42 | 118.83 | 0.7610 | 334.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.03 | -23.36 | 193.41 | -46.96 | 118.53 | 0.7661 | -138.0 | -98.5 | |
| 0.00 | 1.61 | 0.00 | 1.41 | -25.88 | 187.61 | -52.76 | 119.72 | 0.8270 | -588.0 | -512.6 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -28.27 | 184.23 | -56.14 | 121.53 | 0.8601 | -421.0 | -366.7 | |
| 0.00 | 1.26 | 0.00 | 1.14 | -25.61 | 185.84 | -54.53 | 118.92 | 0.8411 | -476.0 | -356.1 | |
| 0.00 | 1.17 | 0.00 | 1.08 | -26.15 | 185.17 | -55.20 | 119.37 | 0.8478 | -350.0 | -283.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
