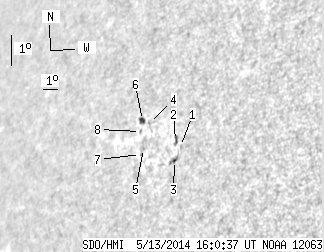

SDO HMI 2014-05-13 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.60 | 16.71 | 2.85 | 17.86 | 10.67 | 179.13 | -61.24 | 76.41 | 0.8881 | 77.7 | -19.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 1.19 | 10.41 | 180.60 | -59.77 | 76.44 | 0.8762 | -645.0 | -508.8 | |
| 0.00 | 3.50 | 0.00 | 3.61 | 10.61 | 180.22 | -60.15 | 76.28 | 0.8795 | -266.0 | -175.2 | |
| 0.63 | 3.86 | 0.64 | 3.96 | 9.98 | 180.36 | -60.01 | 76.96 | 0.8776 | -458.6 | -249.6 | |
| 0.00 | 0.90 | 0.00 | 0.99 | 11.22 | 178.33 | -62.04 | 75.93 | 0.8950 | 507.0 | 502.8 | |
| 0.00 | 1.35 | 0.00 | 1.48 | 10.45 | 178.21 | -62.16 | 76.80 | 0.8950 | 227.0 | 197.2 | |
| 1.97 | 3.86 | 2.21 | 4.33 | 11.34 | 177.82 | -62.55 | 75.89 | 0.8990 | 443.5 | 319.7 | |
| 0.00 | 0.81 | 0.00 | 0.89 | 10.27 | 178.08 | -62.30 | 77.02 | 0.8959 | -26.0 | -25.0 | |
| 0.00 | 1.26 | 0.00 | 1.41 | 11.00 | 177.81 | -62.56 | 76.26 | 0.8987 | 204.0 | 235.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
