SDO HMI 2014-05-13 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.33 | 49.24 | 15.87 | 51.57 | 10.68 | 179.30 | -60.52 | 76.27 | 0.8823 | 10.0 | 168.6 | |
|
previous
or next observation for the same group /

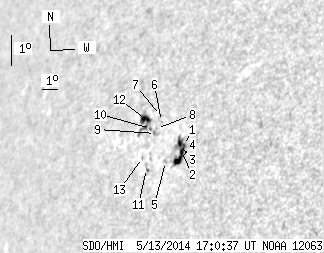

back to the solar disc SDO HMI 2014-05-13 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 22.42 | 0.90 | 22.55 | 10.44 | 180.70 | -59.11 | 76.28 | 0.8708 | -687.2 | -47.3 | |
| 2.06 | -1.00 | 2.06 | -1.00 | 10.26 | 180.64 | -59.18 | 76.50 | 0.8710 | -461.6 | 999999 | |
| 2.33 | -1.00 | 2.35 | -1.00 | 10.51 | 180.44 | -59.38 | 76.25 | 0.8731 | -406.0 | 999999 | |
| 4.84 | -1.00 | 4.86 | -1.00 | 9.98 | 180.54 | -59.28 | 76.83 | 0.8715 | -373.8 | 999999 | |
| 0.00 | 2.06 | 0.00 | 2.12 | 9.99 | 179.74 | -60.08 | 76.97 | 0.8781 | 340.0 | 261.9 | |
| 0.00 | 0.36 | 0.00 | 0.38 | 11.26 | 179.07 | -60.75 | 75.66 | 0.8852 | 220.0 | 249.0 | |
| 0.00 | 0.99 | 0.00 | 1.05 | 11.45 | 178.93 | -60.89 | 75.47 | 0.8865 | 236.0 | 185.8 | |
| 0.00 | 0.27 | 0.00 | 0.29 | 11.05 | 178.82 | -61.00 | 75.93 | 0.8868 | 431.0 | 412.0 | |
| 0.00 | 2.78 | 0.00 | 2.96 | 10.90 | 178.81 | -61.01 | 76.11 | 0.8867 | 322.0 | 401.0 | |
| 0.00 | 1.17 | 0.00 | 1.26 | 11.07 | 178.43 | -61.39 | 75.98 | 0.8899 | 506.0 | 482.1 | |
| 0.00 | 2.15 | 0.00 | 2.29 | 9.82 | 178.59 | -61.23 | 77.35 | 0.8871 | -220.0 | -36.2 | |
| 5.20 | 16.14 | 5.70 | 17.70 | 11.37 | 177.99 | -61.83 | 75.73 | 0.8936 | 471.9 | 327.9 | |
| 0.00 | 0.90 | 0.00 | 0.97 | 10.18 | 178.21 | -61.61 | 77.01 | 0.8905 | 54.0 | -1.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
