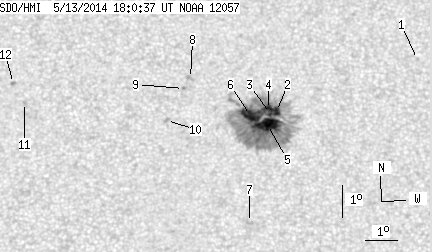

SDO HMI 2014-05-13 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.85 | 288.32 | 26.85 | 152.05 | 15.08 | 248.56 | 9.30 | 333.10 | 0.3463 | -821.7 | -402.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.59 | 17.01 | 253.79 | 14.52 | 324.65 | 0.4162 | -729.0 | -590.4 | |
| 5.29 | 273.52 | 2.80 | 144.28 | 15.30 | 249.13 | 9.86 | 331.99 | 0.3533 | -897.1 | -466.8 | |
| 2.24 | -2.00 | 1.19 | -2.00 | 15.23 | 248.93 | 9.67 | 332.37 | 0.3509 | -996.6 | 999999 | |
| 6.28 | -2.00 | 3.32 | -2.00 | 15.36 | 248.88 | 9.61 | 332.68 | 0.3523 | -1078.1 | 999999 | |
| 22.24 | -2.00 | 11.73 | -2.00 | 14.88 | 248.82 | 9.56 | 332.15 | 0.3450 | -1299.3 | 999999 | |
| 14.80 | -2.00 | 7.81 | -2.00 | 15.16 | 248.29 | 9.03 | 333.85 | 0.3452 | -1200.8 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.67 | 11.78 | 248.13 | 8.86 | 329.09 | 0.2949 | 706.0 | 659.1 | |
| 0.00 | 3.23 | 0.00 | 1.71 | 16.33 | 246.44 | 7.17 | 339.94 | 0.3508 | 737.0 | 659.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.01 | 246.20 | 6.94 | 340.22 | 0.3445 | 845.0 | 663.1 | |
| 0.00 | 2.60 | 0.00 | 1.36 | 14.99 | 245.63 | 6.36 | 340.71 | 0.3255 | 977.0 | 715.4 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 15.55 | 241.17 | 1.90 | 354.20 | 0.3185 | 613.0 | 511.9 | |
| 0.00 | 2.06 | 0.00 | 1.08 | 16.16 | 240.83 | 1.56 | 355.39 | 0.3280 | 933.0 | 767.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
