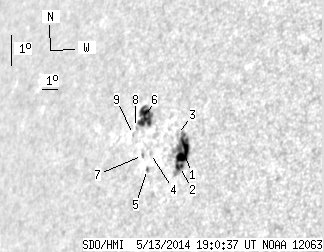

SDO HMI 2014-05-13 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.30 | 75.60 | 38.43 | 75.50 | 10.46 | 179.74 | -58.97 | 76.24 | 0.8693 | 47.8 | 184.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.31 | 45.20 | 16.69 | 43.73 | 10.11 | 180.82 | -57.89 | 76.44 | 0.8598 | -460.4 | 170.1 | |
| 3.59 | -1.00 | 3.46 | -1.00 | 9.65 | 180.72 | -57.99 | 76.98 | 0.8601 | -344.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.67 | 10.66 | 180.31 | -58.40 | 75.90 | 0.8651 | 257.0 | 258.4 | |
| 0.00 | 1.26 | 0.00 | 1.28 | 10.13 | 178.83 | -59.88 | 76.77 | 0.8766 | 73.0 | 93.8 | |
| 0.36 | 1.52 | 0.37 | 1.56 | 9.64 | 178.80 | -59.92 | 77.34 | 0.8763 | -246.2 | -196.5 | |
| 17.04 | 22.51 | 17.91 | 23.67 | 11.31 | 178.13 | -60.58 | 75.57 | 0.8839 | 597.2 | 334.3 | |
| 0.00 | 1.52 | 0.00 | 1.58 | 10.09 | 178.35 | -60.36 | 76.90 | 0.8805 | -105.0 | 10.4 | |
| 0.00 | 0.72 | 0.00 | 0.76 | 10.99 | 177.60 | -61.11 | 76.02 | 0.8876 | 71.0 | 173.4 | |
| 0.00 | 1.17 | 0.00 | 1.25 | 10.78 | 177.55 | -61.16 | 76.27 | 0.8878 | 346.0 | 336.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
